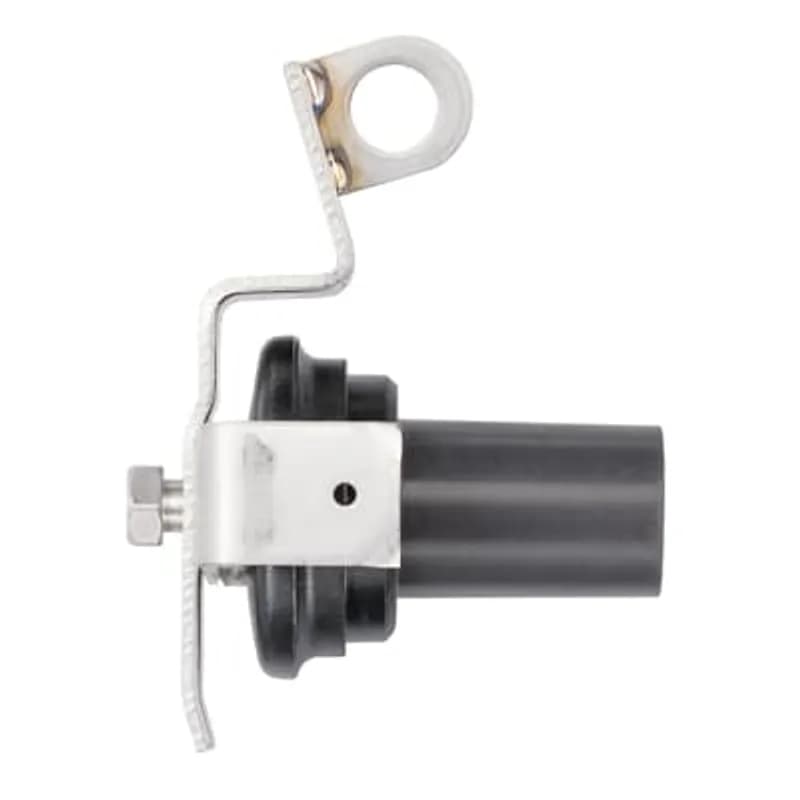

Overview
- 15/25kV operating voltage rating
- 200 Amp current rating
- Deadbreak insulated parking bushing design
- ABB Installation Products manufacturer
- Bails required, order separately
Specifications
Application | Fully shielded, fully submersible parking bushing designed for de-energized operation. It is suitable for use on 15kV and 25kV class systems |
Material | EPDM-Rubber |
Size | 5.08 inch (128.9 mm) Length, 3.42 inch (86.8 mm) wide |
Special Features | 15/25kV, 200 Amp Deadbreak Rated. Peroxide-cured insulation and jacket. Fully shielded, fully submersible. Mounts in Deadbreak parking stand. Provides Dead-End for circuit |
Standard | ANSI/IEEE 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Stand Off Plug |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.2800 L |
Package Weight (Metric) | 0.5810 kg |
K650RTW
15/25kV 600 Series Deadbreak Reducing Tap Well. Length 5.37 inch. Width 3 inch not counting bracket. 600/200 Amps
150-TB-4
15/25kV, T Connection Bail Assembly, Made of Stainless Steel, Used for Assisting Cable to Transformer Connections. Non-Current Carrying. The ELASTIMOLD® 150TB4 bailing assembly kit consists of three stainless steel collars and three lengths of stainless steel strap. This bailing assembly was designed to secure two ELASTIMOLD® straight receptacles K151SR and an ELASTIMOLD® straight plug K151SR and an ELASTIMOLD® tee connector K150T, or two straight receptacles K151SR to an in-line junction K150S. NOTE: For the K150S, only two of the three straps and collars are used. The 150TB4 minimizes any possibility of separation of the assemblies due to cable movement.
150-TB-1
15/25kV, T-Splice Short Bail Assembly, Made of Stainless Steel, Used for Assisting Cable to Transformer Connections. Non-Current Carrying. The 150TB1 bailing assembly kit consists of a modified hold down bail for securing Elastimold® tee splice K150T to any apparatus supplied with Elastimold® 200 A dead-break bushings. This assembly provides positive hold down force on the tee splice minimizing the possibility of cable movement in the mating parts to dislodge the tee splice from the apparatus bushing.150-TB-3
15/25kV, Elbow Junction Bail Assembly Kit, Consists of Two Pieces of Flat Stainless Steel Stock (Hold-Down Bails), which are designed for connecting the Hold-Down Bails Supplied with the Elastimold Dead-Break Elbow Connector 156LR. This Kit enables the Dead-Break Elbow Connectors to be positively Secure to an Elastimold Tee Connector, K150T, or in-line junction, K150S, minimizing the possibility of being dislodged due to cable movement. Used for Assisting Cable to Transformer Connections. Non-Current Carrying. Hardware Includes (2) Eye-Bolts, (2) Bolts, (2) Plastic Nuts and (2) Bail Connector Plates.
K1502-A1
15/25kV 200 Amp, Deadbreak Feed-Thru Insert, Bails are required, but not included, order separately. Fully rotatable for 360 degree positioning. Includes bail assembly to secure feed-thru insert to bushing well. Elbows bail assemblies are required but not included with the feed-thru insert.Frequently Asked Questions
What is the voltage rating of the K151-SOP bushing?
The K151-SOP bushing has an operating voltage rating of 15/25kV.
What is the current rating for this deadbreak bushing?
This ABB deadbreak bushing is rated for 200 Amps.
Are bails included with the K151-SOP parking bushing?
No, bails are required for the K151-SOP but are not included. They must be ordered separately.
Who manufactures the K151-SOP insulated parking bushing?
The K151-SOP insulated parking bushing is manufactured by ABB - Installation Products.
How to Park a Deadbreak Elbow Connector with a K151-SOP Insulated Parking Bushing
This guide provides instructions for safely preparing, installing, and securing a de-energized deadbreak elbow connector onto a K151-SOP or 151SOP insulated parking bushing for 15kV or 25kV class systems.
Estimated time: 30m
Tools needed:
Hotstick, Voltage Test Equipment
Supplies needed:
Supplied or ELASTIMOLD approved lubricant
- Prepare the Parking Bushing
Remove the protective shipping cap from the insulated parking bushing. Clean the mating interface thoroughly. Apply only the supplied or ELASTIMOLD approved lubricant to this surface. Do not substitute lubricants. If the bushing will not be immediately used, replace the protective cap.
- Position the Parking Bushing Assembly
Attach a hotstick to the eye of the insulated parking bushing carriage assembly. Carefully slide the entire carriage assembly into the designated parking stand. Ensure the hold-down bail is pushed out of the way to prevent interference with the elbow connector placement.
- Verify De-energization and Connect Elbow
DANGER: All apparatus must be de-energized during installation or removal. Before attempting to remove the elbow connector from its apparatus bushing, follow applicable instructions to perform a voltage test to confirm it is de-energized. If the voltage test indicates the connector is energized, DO NOT PROCEED. Once confirmed de-energized, remove the elbow connector from the apparatus bushing and carefully place it onto the insulated parking bushing.
- Secure the Elbow Connector
Ensure the hold-down bail is used to secure the elbow connector. Position the bail eyebolt directly over the bail locater on the elbow. Using the hotstick, tighten down on the bail locater by turning the eyebolt in a clockwise direction until the elbow is securely fastened.
