UPC: 783786632299
Contact for Pricing
Overview

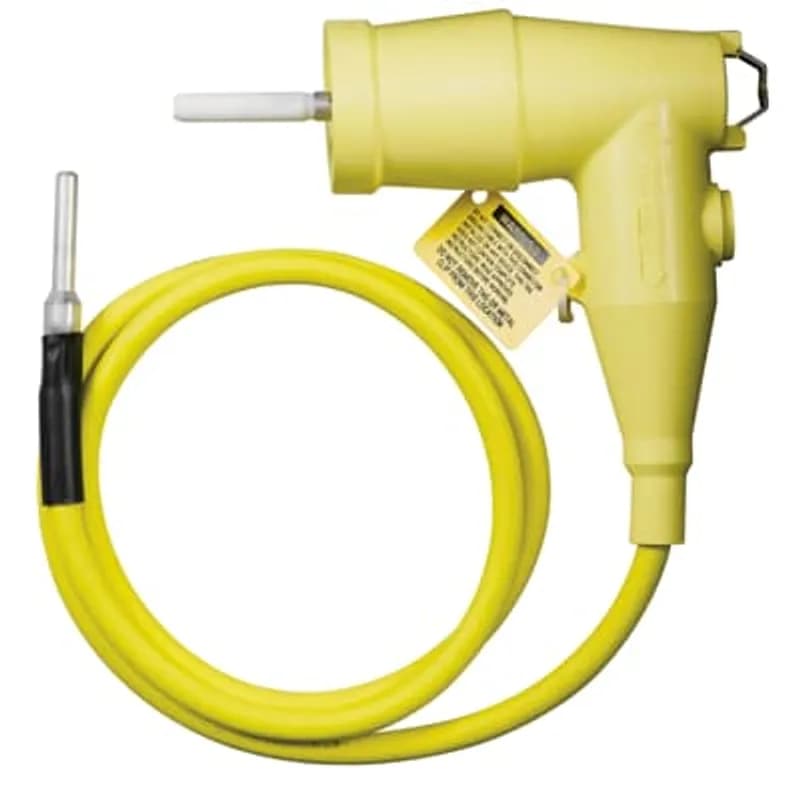

- Rated for 35kV, 200 Amp continuous operation per ANSI/IEEE Standard 386
- 6-foot, 1/0 AWG stranded tinned copper ground lead with 600 Volt insulation
- Stainless steel pulling eye for secure handling and installation
- Includes lubricant, installation instructions, protective cap, and pre-attached grounding cable
- Includes lubricant, instructions, and protective cap
Specifications
Amperage Rating | 200 A |
Application | 25 thru 35kV Applications |
Color | Yellow |
Connection | Push-In |
Connection Type | Loadbreak Grounding Elbow |
Connection Type | Elbow Connector |
Current Rating | 200 A |
Insulation | True |
Material | Housing - EPDM-Rubber |
Material | Tinned Copper |
Size | 7.40 inch wide, 7.53 inch height |
Size | 7.40 inch (width) x 7.53 inch (depth) |
Special Features | Stainless Steel Pulling Eye |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 194 F |
Temperature Rating, Maximum | 90 C |
Temperature Rating, Minimum | 194 F |
Temperature Rating, Minimum | 90 C |
Type | Loadbreak Grounding Elbow Connector |
Voltage Rating | 35 kV |
Width | 7.4 in |
Width | 187.96 mm |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 5.7500 L |
Package Weight (Metric) | 2.6080 kg |
273DRG-5
200 Amp, 25kV, Insulated Cap with Ground, Equipped with Insulated Cuff. Bi-Metal Compression Lug. Ground Lead 62 inches and White.
2701EA4A
200 Amp, 25kV, Loadbreak Extended Bushing Insert. Includes internal torquing feature using 200AT Assembly Tool.
USK 500-12
Aluminum Flood-Seal Mechanical Splice Two-Wire Kits, conductor range 2-500 connector length 12 inch, screws per side 2
273DRGA-PGE
200 Amp, 25kV, Insulated Cap with Ground, Equipped with Insulated Cuff, without Probe. For PGEFrequently Asked Questions
What is the voltage rating of the ABB 370GLR grounding elbow?
The ABB 370GLR grounding elbow connector is rated for 35kV.
What is the continuous current rating for this loadbreak connector?
This loadbreak connector has a continuous current rating of 200 Amps.
What type of ground lead is included with the 370GLR?
The 370GLR includes a 6-foot, 1/0 AWG stranded, tinned copper ground lead.
What are the physical dimensions of the connector body?
The connector body is 7.40 inches wide and 7.53 inches from the bottom edge to the center of the probe.
What accessories are included with the ABB 370GLR grounding elbow?
The ABB 370GLR includes a grounding elbow, grounding cable, lubricant, installation instructions, and a protective shipping cap.
How to Install the 160GLR & 370GLR Grounding Elbow
This guide provides instructions for the safe installation and connection of the 160GLR and 370GLR grounding elbows to de-energized UD systems, ensuring proper grounding and operation.
Estimated time: 30m
Tools needed:
Hotstick, Suitable sensing device for capacitive test points, Meter capable of direct reading system voltage
Supplies needed:
Grounding Elbow, Lubricant (supplied)
- Connect Ground Lead
Connect the ground lead on the grounding elbow to the system ground. Ensure enough slack is left in the ground lead for hotstick operation of the grounding elbow. DANGER: The ground lead must be connected to system ground before connecting the elbow to the bushing.
- Lubricate Grounding Elbow
Remove the protective cap from the grounding elbow. Apply a light, uniform coat of the supplied lubricant, working it thoroughly into the surface. CAUTION: Avoid excess lubricant, as it may prevent the grounding elbow from fully seating in the 'locked on' position. Keep the internal mating surface free from dirt and grime.
- Verify System De-energization
DANGER: Ensure the system is de-energized before proceeding. Use either an indirect test with a suitable sensing device for capacitive test points (following manufacturer's directions) or a direct test using a 370TR Test Rod with a meter capable of direct voltage reading. If voltage is indicated by either procedure, do not proceed without de-energizing the system. Treat the elbow as energized until a 'no voltage' indication is confirmed by other means.
- Connect Grounding Elbow to Bushing
DANGER: Continue to treat the system as energized using a hotstick for all operations. Do not operate by hand. Firmly tighten a hotstick to the grounding elbow operating eye. Place the grounding elbow receptacle area over the bushing, inserting the probe approximately 1 to 2 inches into the bushing. Firmly thrust the grounding elbow home with a fast, straight motion to engage the internal lock into the bushing interface.
