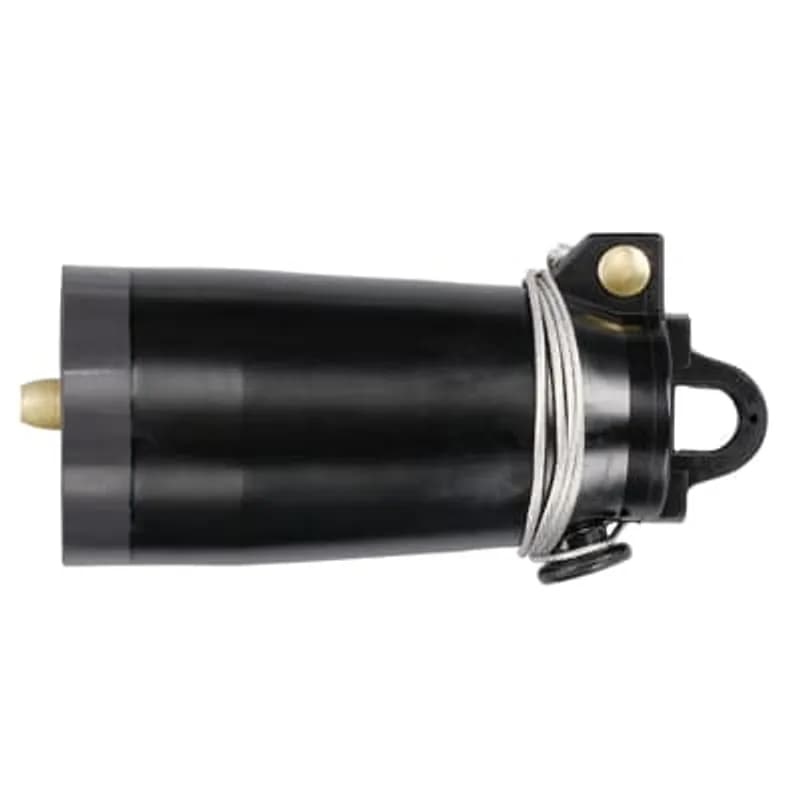

ABB Installation Products 273DRG-5 200 Amp, 25kV, Insulated Cap with Ground, Equipped with Insulated Cuff. Bi-Metal…
UPC: 783786363339
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 25kV voltage class, 200 Amp continuous/loadbreak rated
- Fully shielded, fully submersible, hot stick operable design
- Integral #14 AWG white ground lead (62" length)
- Molded EPDM rubber construction with all-brass probe
- Meets ANSI/IEEE Standard 386 for 25kV class loadbreak systems
Specifications
Amperage Rating | 200 A |
Application | Fully shielded, fully submersible, hot stick operable, separable connectors designed for energized operation |
Color | Black |
Color | White |
Connection Type | Bi-Metal Compression Lug |
Current Rating | 200 A |
Insulation | True |
Material | Housing - EPDM-Rubber |
Poles | 1P+G |
Size | Diameter 2.90 inch (73.7mm) |
Special Features | 25kV, 200 Amp Loadbreak Rated. Molded EPDM Rubber. Includes all brass probe. Provision for hotstick operation. Ground lead wire #14 AWG attached. Insulated cuff for extra protection |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Loadbreak Insulated Cap |
Voltage Rating | 25kV |
Voltage Rating | 25 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.5000 L |
Package Weight (Metric) | 0.6800 kg |
K656CETP-J0270
25kv, 600 Amp Series, Deadbreak Combo-T. Connector Elbow with Intergral 200 Amp Loadbreak Tap Plug with Test Point. Cable Insulation Diameter 0.980 to 1.180 inches (24.9-30.0mm). Aluminum Conductor Material, Conductor Code 270 - 4/0 Stranded/Compressed or 250 Solid/Compact. No Sealing Kit.
2701EA4A
200 Amp, 25kV, Loadbreak Extended Bushing Insert. Includes internal torquing feature using 200AT Assembly Tool.
USK 500-12
Aluminum Flood-Seal Mechanical Splice Two-Wire Kits, conductor range 2-500 connector length 12 inch, screws per side 2
273DRGA-PGE
200 Amp, 25kV, Insulated Cap with Ground, Equipped with Insulated Cuff, without Probe. For PGE273DRGA
200 Amp, 25kV, Insulated Cap with Ground, Equipped with Insulated Cuff, without Probe. White Band
Frequently Asked Questions
Is a version without a probe available?
Yes, a version without a probe is available. To order, specify 273DRGA.
What items are included in the 273DRG kit?
Each kit contains one 273DRG insulated cap, one 82-08 lubricant, and one IS-0894 installation instruction.
What standards does the 273DRG meet?
The 273DRG meets ANSI/IEEE Standard 386, Latest Revision.
What products are compatible with the 273DRG?
The 273DRG is used to dead-end Elastimold® mating products such as the 2701A4 bushing insert, 274FT feed thru, 2702A1 feed-thru insert, and 274 series junctions.
Does the 273DRG include a ground lead?
Yes, the 273DRG has an integral #14 AWG ground lead wire attached as part of the assembly.
Can the 273DRG be operated with a hot stick?
Yes, the 273DRG is designed with a provision for hotstick operation.
What is the voltage class for the 273DRG?
The 273DRG is suitable for use on 25kV class loadbreak systems.
What is the 273DRG product used for?
The 273DRG is an Elastimold® insulated cap with a ground lead and insulated cuff. It is a fully shielded, submersible, hot stick operable, separable connector for energized operation.
What is the maximum operating voltage for the 273DRG?
The maximum phase-to-ground operating voltage for the 273DRG is 15.2kV. The maximum phase-to-phase voltage is 26.3kV.
What is the continuous and loadbreak current rating?
The 273DRG has a continuous and loadbreak current rating of 200 Amps.
How to Install the 273DRG-5 Insulated Cap with Ground Lead
Instructions for installing and removing the 273DRG-5 insulated cap with ground lead on ELASTIMOLD loadbreak bushing interfaces.
Estimated time: 30m
Tools needed:
Hotstick (minimum 8 ft. length recommended), System ground connection tool
Supplies needed:
Insulated Cap with Ground Lead, Lubricant (supplied or ELASTIMOLD approved), Protective cover
- Connect the electrostatic grounding wire
Connect the free end of the electrostatic grounding wire to the system ground. Ensure there is enough slack for hot-stick operation of the insulated cap. The grounding wire should not contact the bushing interface during operation.
- Prepare the insulated cap
Remove the protective cover from the insulated cap. Lubricate the cap’s internal mating surface using only the supplied lubricant or ELASTIMOLD approved lubricants. Keep the internal mating surface clean. Replace the protective cover when not in use.
- Install the insulated cap
Firmly attach a hotstick to the insulated cap's pulling eye. Insert the male contact of the insulated cap into the loadbreak bushing and push it fully home with a fast, firm, straight motion. Verify that it is fully mated and the locking ring is seated. Detach the hotstick.
- Remove the insulated cap
Attach the hotstick to the pulling eye. Rotate the insulated cap slightly while in the mated position to break surface friction. Pull the receptacle off with a fast, firm, straight motion. Disconnect the electrostatic grounding wire from the system ground. Replace the protective cover on the insulated cap.
