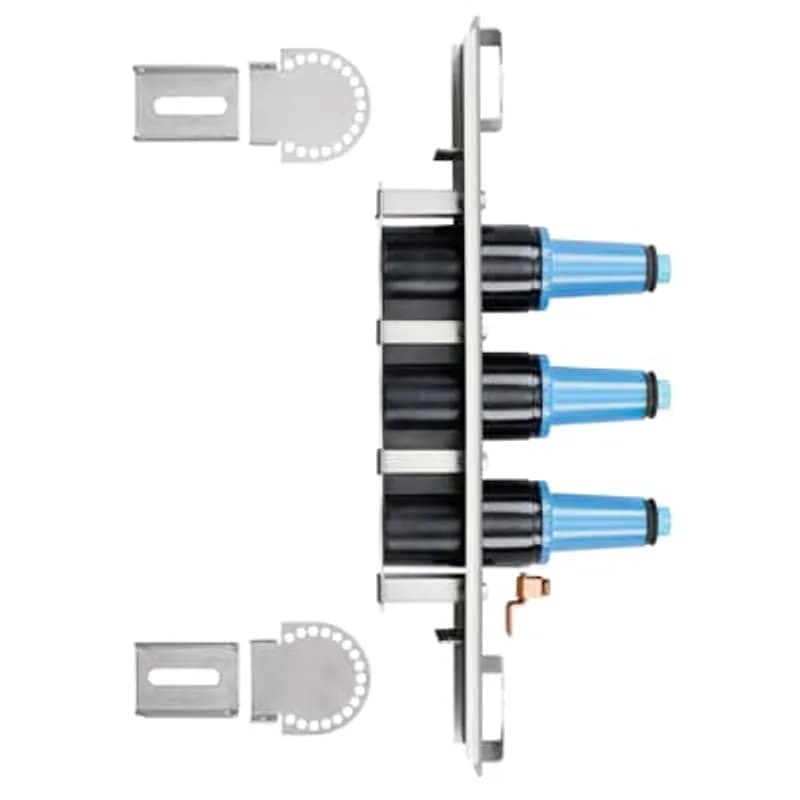

ABB Installation Products 274J3WB 200 Amp, 25kV, Loadbreak 3 Point Junction. White Band.
UPC: 783786298785
Contact for Pricing
Call (262) 252-1600 or email [email protected] for pricing and availability.
Overview
- 200 Amp current rating
- 25kV voltage rating
- 3-point loadbreak junction configuration
- White band for identification
- ABB Installation Products
Specifications
Amperage Rating | 200 A |
Application | Designed for subsurface, vault or padmount applications and can be used for sectionalizing, looping, tapping, and equipment bypass |
Color | White |
Color | Black |
Current Rating | 200 A |
Environmental Conditions | Fully Shielded, Fully Submersible |
Insulation | True |
Material | Housing - Molded Rubber |
Poles | 3P |
Special Features | White Band |
Standard | ANSI/IEEE Standard 386 |
Type | Loadbreak 3-Way Junction |
Voltage Rating | 25kV |
Voltage Rating | 25 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
273DRG-5
200 Amp, 25kV, Insulated Cap with Ground, Equipped with Insulated Cuff. Bi-Metal Compression Lug. Ground Lead 62 inches and White.
2701EA4A
200 Amp, 25kV, Loadbreak Extended Bushing Insert. Includes internal torquing feature using 200AT Assembly Tool.
USK 500-12
Aluminum Flood-Seal Mechanical Splice Two-Wire Kits, conductor range 2-500 connector length 12 inch, screws per side 2
273DRGA-PGE
200 Amp, 25kV, Insulated Cap with Ground, Equipped with Insulated Cuff, without Probe. For PGE273DRGA
200 Amp, 25kV, Insulated Cap with Ground, Equipped with Insulated Cuff, without Probe. White BandFrequently Asked Questions
What are the main specifications of the 274J3 junction?
The 274J3 is a 25kV, 200 Amp Loadbreak 3-Way Junction with a fully shielded, submersible molded rubber housing.
What is the continuous and loadbreak current rating?
The continuous and loadbreak current rating for the 274J3 is 200 Amp.
What is the AC one-minute withstand voltage for the 274J3?
The AC one-minute withstand voltage for the 274J3 is 40kV.
What is the DC 15-minute withstand voltage for the 274J3?
The DC 15-minute withstand voltage for the 274J3 is 78kV.
What is the momentary and fault close rating of the 274J3?
The momentary and fault close rating of the 274J3 is 10kA Symmetrical for 10 cycles.
How do I order the standard 25kV 3-way Loadbreak Junction?
To order the standard 25kV, 200 Amp, 3-way Loadbreak Junction, specify 274J3.
What is the maximum phase-to-phase voltage for the 274J3?
The maximum phase-to-phase voltage for the 274J3 is 26.3kV.
What is the impulse withstand rating (BIL) of the 274J3?
The impulse withstand (BIL) rating of the 274J3 is 125kV (1.2 x 50 microsecond wave).
What is the operating voltage (phase-to-ground) for the 274J3?
The operating voltage (phase-to-ground) for the 274J3 is 15.2kV.
What standard does the 274J3 junction meet?
The 274J3 junction meets ANSI/IEEE Standard 386, Latest Revision.
How to Install the 274J3WB Loadbreak Junction
Instructions for installing and connecting the 274J3WB two, three, or four-point loadbreak junctions.
Estimated time: 45m
Tools needed:
Drill, Wrench
Supplies needed:
Mounting hardware, Grounding lug (if mounting surface is not conductive), Ground wire (14AWG minimum), Lubricant, Mating products (elbows or caps), Round yellow marker
- Determine mounting location and drill holes
Select the desired location for the junction assembly. Drill holes in the mounting surface according to the dimensions provided in the diagram for J2, J3, or J4 configurations.
- Assemble and mount the junction
Assemble the loadbreak junction, shield plate, and hold down brackets using the supplied fasteners. Attach the assembly to the flat mounting surface and securely tighten all fasteners to prevent movement during operation. Ensure the shield plate, hold down brackets, and conductive rubber shield are grounded. If the mounting surface is not conductive or grounded, attach a grounding lug (not provided) with one of the mounting bolts and connect a ground wire (14AWG minimum) to the lug and a ground bus.
- Prepare and connect mating products
Thoroughly clean the bushing interface of any contaminants and lubricate it with the supplied lubricant. Install the mating products (insulated caps or elbow connectors) to the bushing insert, following the instructions provided with those mating products. Apply the provided round yellow marker to the mounting surface where it will be visible to the operator.
- Verify seating of connected products
Confirm that the insulated cap or elbow connector is fully seated. This is indicated when no portion of the yellow band is visible when viewed from the side.
