UPC: 783786120369
Contact for Pricing
Overview

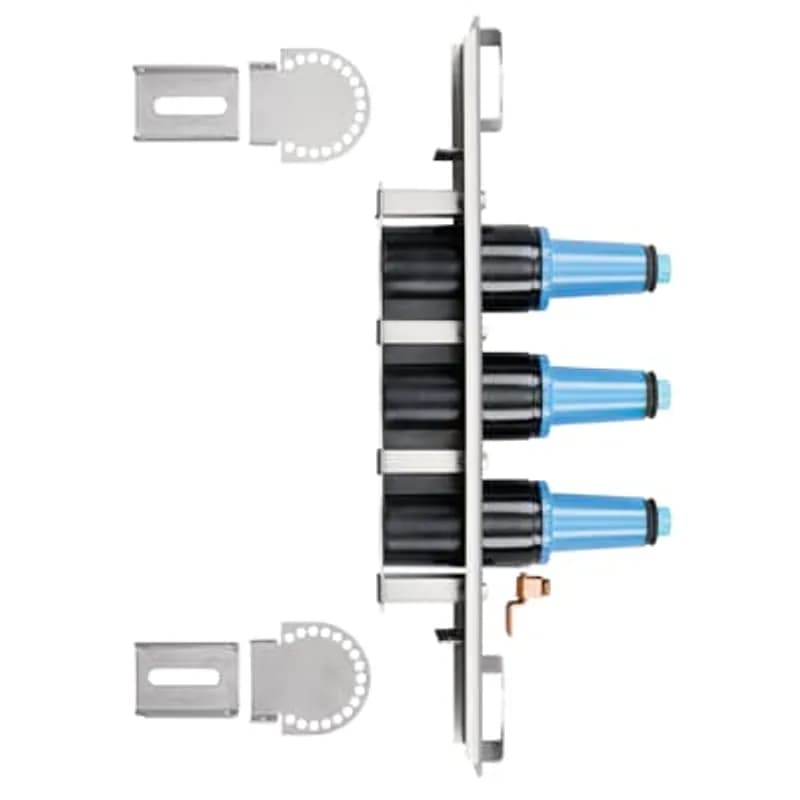

- 25kV voltage rating for medium-voltage applications
- 200 Amp continuous current capacity
- 3-point loadbreak junction configuration
- Includes durable stainless steel mounting bracket
- Manufactured by ABB - Installation Products
Specifications
Application | Designed for subsurface, vault or padmount applications and can be used for sectionalizing, looping, tapping, and equipment bypass. Suitable for use on 25-kV class distribution systems, and rated for 200-ampere loadmake/loadbreak operation |
Material | EPDM-Rubber with Stainless Steel Bracket |
Size | 23.00 inch (584.2 mm) Mounting Frame Length, 4.00 inch (101.6 mm) Center to Center, 5.00 inch (127.0 mm) width. 9.60 inch (243.8 mm) height |
Special Features | 25kV, 200 Amp Loadbreak 3-Way Junction. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provides mating for other Elastimold loadbreak type products. Provides mating for Elastimold Elbow connectors. Mounting hardware for flat or curved mounting positions |
Standard | ANSI/IEEE 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | 3-Point Junction |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 15.8400 L |
Package Weight (Metric) | 7.1850 kg |
168FLR1-B5220
Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 8.3kV, Fuse Test Port - Two Capacitive Test Ports, Small Housing, Cable Insulation Diameter 0.635 inch - 0.905 inch / 16-23mm, Bi-Metal Conductor size 2 AWG Stranded/Compressed, 1 AWG Solid/Compact. no Sealing Kit
VAG-022-00
Solenoid Valve Connectors, Field Wireable, 3 Pole, Form A 18mm, 24V, 10A, LED w/MOV, .5-NPT opening
T1505063000-000
Rectangular hoods and bases portfolio features base housing, cover, hood, or hood and base housing assembly with inserts connector product types. Products are designed for bottom, side, top, or top and side cable entry. Rectangular hoods and bases offer solutions with a variety of hood and base locking device types as well as connector mounting types.
Frequently Asked Questions
What is the voltage rating of the ABB 274J3 junction?
The ABB 274J3 junction has a voltage rating of 25kV.
What is the current capacity of this loadbreak junction?
The ABB 274J3 junction is rated for 200 Amps of continuous current.
What type of bracket is included with the 274J3?
The ABB 274J3 comes with a stainless steel mounting bracket.
How many connection points does the 274J3 offer?
The ABB 274J3 is a 3-point loadbreak junction.
Who is the manufacturer of the 274J3 junction?
The ABB 274J3 junction is manufactured by ABB - Installation Products.
How to Install Elastimold 274J3 Loadbreak Junctions
This guide provides step-by-step instructions for the universal mounting and initial setup of Elastimold 274J2, 274J3, and 274J4 two-, three-, and four-point loadbreak junctions on flat or curved surfaces, including wiring and connection procedures.
Estimated time: 1h
Tools needed:
Wrench or socket set, Drill, Wire strippers, Marking tool, Measuring tape
Supplies needed:
Mounting bolts/screws (user supplied, 17/32 inch or 13mm diameter), Lubricant (supplied with junction), Grounding wire (user supplied, No. 10 Solid to No. 1 Stranded), Elastimold 273DR Insulated Cap(s) (for unused interfaces), Mating 25kV class loadbreak connectors or insulated caps
- De-energize Apparatus and Inspect Components
DANGER: Before beginning installation, ensure all apparatus is de-energized. Inspect the contents of the package for completeness and damage. Verify all components fit properly with the cable and/or mating products.
- Prepare Mounting Brackets and Mark Location
Loosely attach the universal mounting brackets to the junction back plate. Position the assembled unit against the desired flat or curved wall surface, adjust the brackets for proper alignment, and mark their exact location on the wall.
- Mount Brackets to Wall
Detach the universal mounting brackets from the junction back plate. Securely mount the brackets to the wall using user-supplied bolts (17/32 inch or 13mm diameter) according to the marks made in the previous step. Ensure the brackets are firmly attached.
- Fasten Junction to Brackets
With the universal mounting brackets securely installed on the wall, fasten the junction back plate (with the junction attached) to the mounted brackets. Ensure that the parking stands are in the upright position.
- Adjust Mounting Angle and Tighten Bolts
Adjust the junction's mounting angle to the desired position (0° to 90° above or below horizontal in 15° increments). Once the angle is set, securely tighten all bolts to prevent any movement during operation.
- Ground the Back Plate
Connect a grounding wire (user-supplied, No. 10 Solid to No. 1 Stranded) to the provided grounding lug on the back plate. Ensure a secure and proper ground connection.
- Clean, Lubricate, and Install Mating Products
Thoroughly wipe the bushing interface clean of any contaminants. Apply the supplied lubricant to the bushing interface. Install the mating loadbreak connectors or insulated caps to the bushing inserts, following their specific installation instructions.
- Verify Seating and Install Insulated Caps on Unused Interfaces
Confirm proper seating of installed connectors or caps by ensuring no portion of the yellow band is visible when viewed from the side. WARNING: If any operating interfaces remain unused, install an Elastimold 273DR Insulated Cap on each unused interface before energizing the circuit. Do not use shipping covers for this purpose as they are not insulated.
