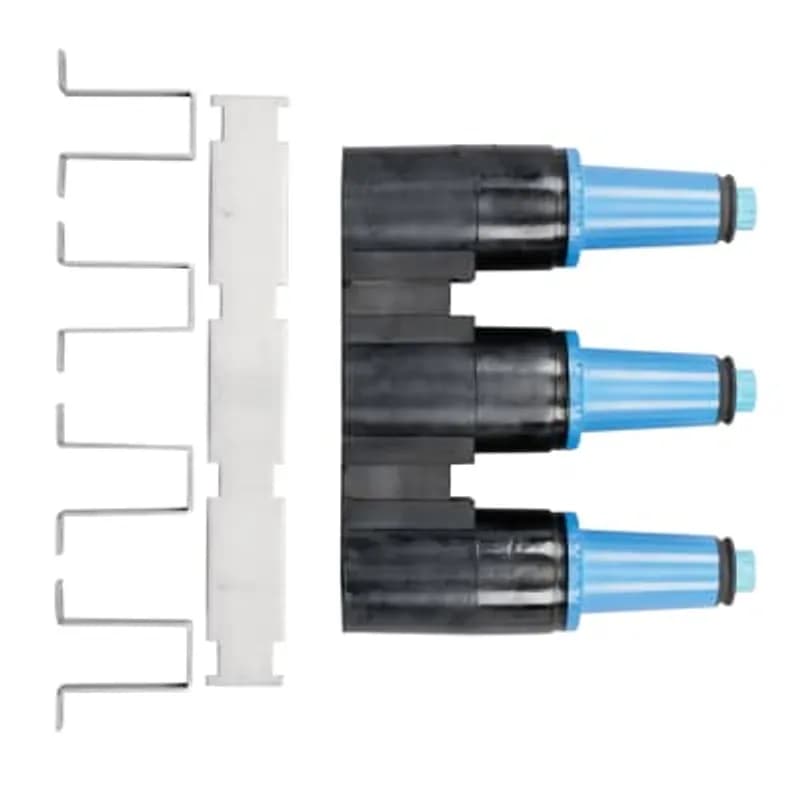

ABB Installation Products 274J3-5 25kV 200 Amp, Loadbreak 3-point Junction With U Straps
UPC: 783786359721
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 25kV voltage rating, 200 Amp current capacity
- 3-point junction configuration for line and load terminations
- Supports line wire range: #6-350MCM, load wire range: #8-250MCM
- Top/bottom overhead and underground line feed options
- Triplex ground connection for enhanced safety
Specifications
Application | Designed for subsurface, vault or padmount applications and can be used for sectionalizing, looping, tapping, and equipment bypass. Suitable for use on 25-kV class distribution systems, and rated for 200-ampere loadmake/loadbreak operation |
Material | EPDM-Rubber with Stainless Steel Strap |
Special Features | 25kV, 200 Amp Loadbreak 2-Way Junction. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provides mating for other Elastimold loadbreak type products. Provides mating for Elastimold Elbow connectors. Mounting U-Straps for installation |
Standard | ANSI/IEEE 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | 3-Point Junction |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 4.3200 L |
Package Weight (Metric) | 1.9600 kg |
168FLR1-B5220
Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 8.3kV, Fuse Test Port - Two Capacitive Test Ports, Small Housing, Cable Insulation Diameter 0.635 inch - 0.905 inch / 16-23mm, Bi-Metal Conductor size 2 AWG Stranded/Compressed, 1 AWG Solid/Compact. no Sealing Kit
VAG-022-00
Solenoid Valve Connectors, Field Wireable, 3 Pole, Form A 18mm, 24V, 10A, LED w/MOV, .5-NPT opening
T1505063000-000
Rectangular hoods and bases portfolio features base housing, cover, hood, or hood and base housing assembly with inserts connector product types. Products are designed for bottom, side, top, or top and side cable entry. Rectangular hoods and bases offer solutions with a variety of hood and base locking device types as well as connector mounting types.
Frequently Asked Questions
What are the key specifications of the 274J3 junction?
The 274J3 is a 25kV, 200 Amp Loadbreak 3-Way Junction with a fully shielded, submersible molded rubber housing.
What industry standard does the 274J3 junction meet?
The 274J3 junction meets ANSI/IEEE Standard 386, Latest Revision.
What is the momentary and fault close rating?
The momentary and fault close rating is 10kA Symmetrical for 10 cycles.
What is the one-minute AC withstand voltage?
The one-minute AC withstand voltage is 40kV.
What is the Basic Impulse Level (BIL) withstand rating?
The Basic Impulse Level (BIL) withstand rating is 125kV (1.2 x 50 microsecond wave).
What is the maximum phase-to-phase voltage rating?
The maximum phase-to-phase voltage rating for the 25kV class junction is 26.3kV.
What is the operating voltage for the 25kV class junction?
For the 25kV voltage class, the operating voltage is 15.2kV Phase-to-Ground.
What tilt mounting angles do the universal brackets support?
The universal brackets provide tilt mounting angles from 0° to 90° in 15° increments. They accommodate curved or flat surfaces.
What is the loadmake/loadbreak rating of the junction?
The junction is rated for 200-ampere loadmake/loadbreak operation.
What voltage class distribution systems is this junction suitable for?
The junction is suitable for use on 25-kV class distribution systems.
How to Install the 274J3-5 Loadbreak Junction
Instructions for installing and connecting the 274J3-5 two, three, or four-point loadbreak junctions.
Estimated time: 45m
Tools needed:
Drill, Wrench
Supplies needed:
Mounting hardware, Grounding lug (if mounting surface is not conductive), Ground wire (14AWG minimum), Lubricant, Mating products (elbows or caps), Round yellow marker
- Determine mounting location and drill holes
Select the desired location for the junction assembly. Drill holes in the mounting surface according to the dimensions provided in the diagram for J2, J3, or J4 configurations.
- Assemble and mount the junction
Assemble the loadbreak junction, shield plate, and hold down brackets using the supplied fasteners. Attach the assembly to the flat mounting surface and securely tighten all fasteners to prevent movement during operation. Ensure the shield plate, hold down brackets, and conductive rubber shield are grounded. If the mounting surface is not conductive or grounded, attach a grounding lug (not provided) with one of the mounting bolts and connect a ground wire (14AWG minimum) to the lug and a ground bus.
- Prepare and connect mating products
Thoroughly clean the bushing interface of any contaminants and lubricate it with the supplied lubricant. Install the mating products (insulated caps or elbow connectors) to the bushing insert, following the instructions provided with those mating products. Apply the provided round yellow marker to the mounting surface where it will be visible to the operator.
- Verify seating of connected products
Confirm that the insulated cap or elbow connector is fully seated. This is indicated when no portion of the yellow band is visible when viewed from the side.
