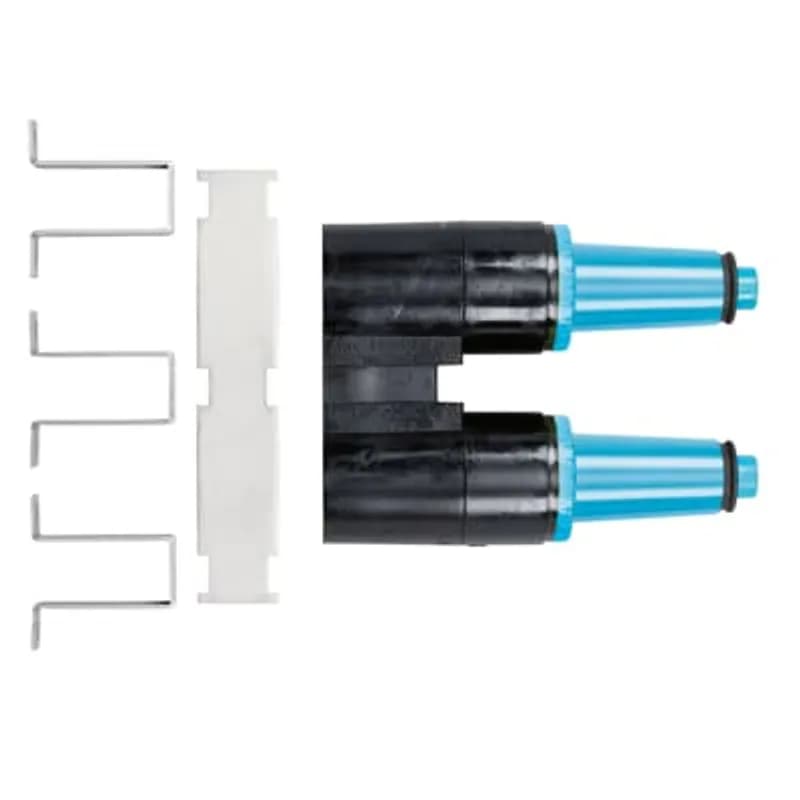

ABB Installation Products 274J2-5 25kV 200 Amp, Loadbreak 2-point Junction With U Straps
UPC: 783786331161
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 25kV voltage rating for medium-voltage applications
- 200 Amp continuous current rating
- Loadbreak functionality for safe switching
- 2-point junction design
- Includes 'U' straps for secure conductor termination
Specifications
Application | Designed for subsurface, vault or padmount applications and can be used for sectionalizing, looping, tapping, and equipment bypass. Suitable for use on 25-kV class distribution systems, and rated for 200-ampere loadmake/loadbreak operation |
Material | EPDM-Rubber with Stainless Steel Strap |
Size | 4.00 inch (101.6 mm) Center to Center, 2.50 inch (63.5 mm) Diameter. 8.46 inch (214.9 mm) height |
Special Features | 25kV, 200 Amp Loadbreak 2-Way Junction. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provides mating for other Elastimold loadbreak type products. Provides mating for Elastimold Elbow connectors. Mounting U-Straps for installation |
Standard | ANSI/IEEE 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | 2-Point Junction |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 12.0000 L |
Package Weight (Metric) | 5.4430 kg |
168FLR1-B5220
Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 8.3kV, Fuse Test Port - Two Capacitive Test Ports, Small Housing, Cable Insulation Diameter 0.635 inch - 0.905 inch / 16-23mm, Bi-Metal Conductor size 2 AWG Stranded/Compressed, 1 AWG Solid/Compact. no Sealing Kit
VAG-022-00
Solenoid Valve Connectors, Field Wireable, 3 Pole, Form A 18mm, 24V, 10A, LED w/MOV, .5-NPT opening
T1505063000-000
Rectangular hoods and bases portfolio features base housing, cover, hood, or hood and base housing assembly with inserts connector product types. Products are designed for bottom, side, top, or top and side cable entry. Rectangular hoods and bases offer solutions with a variety of hood and base locking device types as well as connector mounting types.
Frequently Asked Questions
What type of product is the 274J2-5?
The 274J2-5 is a 25kV, 200 Amp Loadbreak 2-Way Junction, designed for energized operation.
Which industry standard does the 274J2-5 meet?
The 274J2-5 meets ANSI/IEEE Standard 386, Latest Revision.
What is the momentary and fault close rating?
The momentary and fault close rating is 10kA Sym for 10 Cycles.
What is the DC 15-minute withstand rating?
The DC 15-minute withstand rating is 78kV.
What is the AC one-minute withstand rating?
The AC one-minute withstand rating is 40kV.
What is the impulse withstand rating for the junction?
The impulse withstand rating is 125kV BIL (1.2 x 50 microsecond wave).
What products are compatible with the 274J2-5 junction?
It mates with Elastimold® loadbreak type products, including 25kV Elbow Connectors, 370GLR Grounding Elbow, 370TR Test Rod, and 273/274DRG Insulated Cap.
How is the 274J2-5 junction mounted?
The junction is supplied with U-straps and a back plate for front surface or back surface mounting.
Where can this junction be installed?
ELASTIMOLD® junctions are designed for subsurface, vault, or padmount applications.
What is the continuous and loadbreak current rating?
The 274J2-5 is rated for 200 Amp continuous and loadbreak operation.
How to Install 274J2-5 Loadbreak Junctions
This guide provides step-by-step instructions for the safe installation and initial setup of 274J2-5, J3, and J4 two-, three-, and four-point loadbreak junctions, including mounting, grounding, and connecting mating products.
Estimated time: 45m
Tools needed:
Drill, Wrench or Socket Set, Wire Strippers, Cleaning Cloth
Supplies needed:
Mounting Hardware, Lubricant, Grounding Lug (if mounting on insulating surface), Ground Wire (14AWG minimum, if mounting on insulating surface), Round Yellow Marker
- Prepare for Installation
Before beginning, ensure all apparatus are de-energized. Carefully inspect all parts for any damage, verify their rating, and confirm compatibility with mating parts. Remove any protective shipping covers and replace them with appropriate HV insulated caps or connectors if the circuit will be submerged or energized.
- Determine Location and Drill Mounting Holes
Determine the desired location for the junction assembly. Using the provided dimensions (4.000 x 2.000 for J2, 2.500 x 3.000 for J3, 1.125 x 4.000 for J4, with 0.375 Dia. holes), drill the necessary mounting holes into the chosen flat surface.
- Mount and Ground the Junction Assembly
Assemble the loadbreak junction, shield plate, and hold-down brackets using the supplied fasteners. Attach the complete assembly to the prepared flat surface and securely tighten all fasteners to prevent any movement during operation. IMPORTANT: The shield plate, hold-down brackets, and black conductive rubber shield MUST be grounded. If mounting on a conductive and grounded surface, no additional ground is necessary. For insulating mounting surfaces, attach a grounding lug (not provided) with one of the mounting bolts and connect a minimum 14AWG ground wire from the lug to a ground bus.
- Clean, Lubricate, and Install Mating Products
Thoroughly wipe the bushing interface clean to remove any contaminants. Apply the supplied lubricant generously to the cleaned bushing interface. Install the mating products (e.g., insulated caps or elbow connectors) to the bushing insert, carefully following the specific instructions provided with those mating products.
- Verify Mating Product Seating
After installing an insulated cap or elbow, verify its complete assembly. Proper seating is indicated when no portion of the yellow band is visible when viewed from the side of the connection.
- Attach Yellow Marker
Remove the adhesive-backed round yellow marker supplied with the kit and attach it to the mounting surface in a location where it will be clearly visible to the operator.
