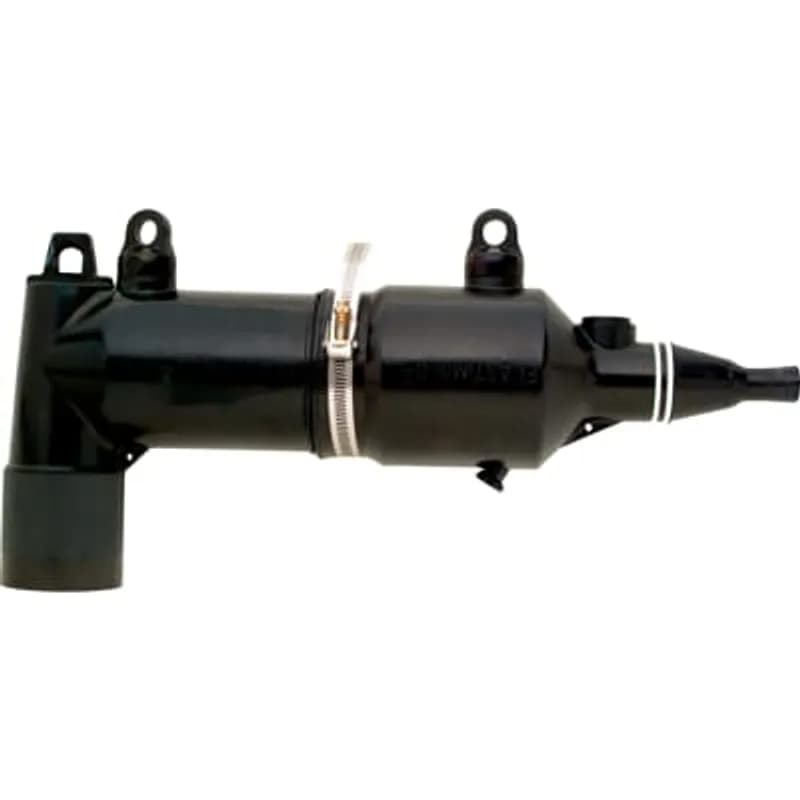

ABB - Installation Products 274FLR1-B5220 - Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 15.5kV, Fuse Test Port - Two Capacitive Test Ports, Small Housing, Cable Insulation Diameter 0.635 inch - 0.905 inch, Bi-Metal Conductor size 2 AWG Stranded Compressed, 1 AWG Solid Compact. No Sealing Kit.

ABB Installation Products 274FLR1-B5220 Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 15.5kV, Fuse Test Port…

UPC: 075114379779


Documents & Media
Installation InstructionsSpecification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB 274FLR1-B5220 molded current limiting fuse housing is a compact, high-performance solution engineered for medium-voltage applications up to 15.5kV. Designed for space-constrained installations, this housing integrates seamlessly into existing switchgear configurations while providing reliable fault current protection. The unit features two capacitive test ports for safe, non-intrusive voltage verification, eliminating the need to interrupt electrical service during diagnostics. The bi-metal conductor accommodates a range of cable sizes, supporting both 2 AWG stranded compressed and 1 AWG solid compact conductors with insulation diameters from 0.635 inch to 0.905 inch. Its small form factor and robust construction ensure compatibility with demanding environments where reliability and safety are critical. Ideal for applications requiring precise fault current limiting in medium-voltage systems, this fuse housing delivers consistent performance without the need for additional sealing kits. The capacitive test ports enable quick and accurate voltage checks without system disconnection, enhancing operational efficiency. The bi-metal conductor design provides flexibility in cable termination, accommodating both stranded and solid conductors within the specified insulation diameter range. The absence of a sealing kit simplifies installation and maintenance, reducing potential points of failure. This fuse housing is optimized for medium-voltage applications where space efficiency, reliability, and safety are paramount, making it a dependable choice for industrial and utility installations.
  • Nominal fuse voltage rating: 15.5kV
  • Two capacitive test ports for safe voltage verification
  • Bi-metal conductor supports 2 AWG stranded compressed and 1 AWG solid compact cables
  • Cable insulation diameter range: 0.635 inch to 0.905 inch
  • No sealing kit required for simplified maintenance

Specifications

Amperage Rating
200 A
Application
Protect Light Duty Underground Distribution Systems
Color
Black
Conductor Range
#2 STR/COMPR AWG , #1 SOL/COMPT AWG
Insulation
True
Length
16.87 in
Length
428.498 mm
Material
EPDM-Rubber
Material
Bi-Metal, Molded
Size
0.635 inch - 0.905 inch
Size
0.635 inch - 0.905 inch (cable insulation diameter)
Special Features
Full-Range Current-Limiting Fusing with 50kA Interrupting Capability. Hotstick Operable 25/28kV Loadbreak Elbow Switching
Standard
IEEE 386, ANSI C37.40, ANSI C37.41, ANSI C37.47
Temperature Rating, Maximum
149 F
Temperature Rating, Maximum
65 C
Temperature Rating, Minimum
-40 F
Temperature Rating, Minimum
-40 C
Type
Loadbreak Fused Elbow Connector with Test Point
Voltage Rating
15.5 kV
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 17.2kV, Fuse Test Port - Two Capactive Test Ports, Large Housing, Cable Insulation Diameter 0.575 inch - 0.740 inch / 15-19mm, Aluminum Conductor size 2 AWG Stranded Compressed, 1 AWG Solid Compact

274FLR3-A0220

Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 17.2kV, Fuse Test Port - Two Capactive Test Ports, Large Housing, Cable Insulation Diameter 0.575 inch - 0.740 inch / 15-19mm, Aluminum Conductor size 2 AWG Stranded Compressed, 1 AWG Solid Compact
600 Amp, 25kV, Deadbreak, Stick-Op Connector Kit with Test Point, With Insulated Cap. Cable Insulation Diameter 1.550 inch to 1.780 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 1000.

K656LRTP-N0410-DRG

600 Amp, 25kV, Deadbreak, Stick-Op Connector Kit with Test Point, With Insulated Cap. Cable Insulation Diameter 1.550 inch to 1.780 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 1000.
600 Amp, 15/25kV, 600 Series Deadbreak Straight Receptacle with Cable Adapter, Lug and Retaining Ring. Cable Insulation Diameter 1.090 inch to 1.310 inch. Aluminum Compression Lug. Conductor Size Compressed Stranded 4/0 or Compacted Solid 250 kcmil or mmSquared Compact 125.

K655SR-K0270

600 Amp, 15/25kV, 600 Series Deadbreak Straight Receptacle with Cable Adapter, Lug and Retaining Ring. Cable Insulation Diameter 1.090 inch to 1.310 inch. Aluminum Compression Lug. Conductor Size Compressed Stranded 4/0 or Compacted Solid 250 kcmil or mmSquared Compact 125.
25 kV, 200 Amp, Deadbreak, Elbow Connector with Test Point, with Jacket Seal, Cable Insulation Diameter - .805-1.060 inch. Bi-Metal Lug, Conductor Size 250 - 2/0 Stranded/Compressed or 3/0 Compact/Solid. Includes Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Bail Assembly, Tube of Lubricant, Installation Instructions, Crimp Chart and V.D. Cap-Peroxide.

252LRJS-C5250

25 kV, 200 Amp, Deadbreak, Elbow Connector with Test Point, with Jacket Seal, Cable Insulation Diameter - .805-1.060 inch. Bi-Metal Lug, Conductor Size 250 - 2/0 Stranded/Compressed or 3/0 Compact/Solid. Includes Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Bail Assembly, Tube of Lubricant, Installation Instructions, Crimp Chart and V.D. Cap-Peroxide.
600 Amp, Straight Receptacle with Cable Adapter, Lug and Retaining Ring, DeadBreak, 15/25 KV, Cable Insulation Diameter 1.180 inch to 1.465 inch. Aluminum Compression Lug. Conductor Size kcmil Compressed Stranded 500 or Compacted Solid 600 or mmSquared Compact 250/300. Cold Shrinkable Seal with Copper Braid and Constant Force Spring Included.

K655SR-L-0330-SG3

600 Amp, Straight Receptacle with Cable Adapter, Lug and Retaining Ring, DeadBreak, 15/25 KV, Cable Insulation Diameter 1.180 inch to 1.465 inch. Aluminum Compression Lug. Conductor Size kcmil Compressed Stranded 500 or Compacted Solid 600 or mmSquared Compact 250/300. Cold Shrinkable Seal with Copper Braid and Constant Force Spring Included.
35kV, 600 Amps, Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Aluminum Compression Lug. Cable Insulation Diameter 0.980 inch to 1.180 inch. Conductor Size AWG, Compressed/Stranded 3/0 or Compacted/Solid 4/0 or 95 mm2. Cold-Shrinkable Jacket Seal Included.

756LR-J0260-S

35kV, 600 Amps, Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Aluminum Compression Lug. Cable Insulation Diameter 0.980 inch to 1.180 inch. Conductor Size AWG, Compressed/Stranded 3/0 or Compacted/Solid 4/0 or 95 mm2. Cold-Shrinkable Jacket Seal Included.
35kV, 600 Amps, Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Aluminum Compression Lug. Cable Insulation Diameter 1.180 inch to 1.465 inch. Conductor Size Compressed/Stranded 400 kcmil or Compacted/Solid 450 kcmil or Compact 240 mm2. Cold-Shrinkable Jacket Seal Included.

756LR-L0310-S

35kV, 600 Amps, Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Aluminum Compression Lug. Cable Insulation Diameter 1.180 inch to 1.465 inch. Conductor Size Compressed/Stranded 400 kcmil or Compacted/Solid 450 kcmil or Compact 240 mm2. Cold-Shrinkable Jacket Seal Included.
600 Series Elbows with IEEE 386 Capacitive Test Points, 600 Amp, 15kV, Stick-OP Elbow Connector Kit with Insulated Cap. Cable Insulation Diameter 1.370 inch to 1.630 inch. Aluminum Compression Lug. Conductor Size Compressed/Stranded 700/750 kcmil or Compact/Solid 900. Includes Elbow Housing, Reducing Tap Plug, Cable Size Adapter, Compression Lug, Lubricant, Instruction Sheet and Crimp Chart.

656LRTP-M0380-DRG

600 Series Elbows with IEEE 386 Capacitive Test Points, 600 Amp, 15kV, Stick-OP Elbow Connector Kit with Insulated Cap. Cable Insulation Diameter 1.370 inch to 1.630 inch. Aluminum Compression Lug. Conductor Size Compressed/Stranded 700/750 kcmil or Compact/Solid 900. Includes Elbow Housing, Reducing Tap Plug, Cable Size Adapter, Compression Lug, Lubricant, Instruction Sheet and Crimp Chart.

Frequently Asked Questions

What voltage rating does this fuse housing support?

The 274FLR1-B5220 supports a nominal fuse voltage rating of 15.5kV.

What cable insulation diameters are compatible?

The housing accommodates cable insulation diameters between 0.635 inch and 0.905 inch.

Does this housing include a sealing kit?

No, the 274FLR1-B5220 does not include a sealing kit.

What conductor sizes are supported?

The bi-metal conductor supports 2 AWG stranded compressed or 1 AWG solid compact sizes.

How many test ports does this housing have?

The housing features two capacitive test ports for voltage verification.

How to Install the 274FLR Loadbreak Fused Elbow Connector

This guide provides step-by-step instructions for the safe and proper installation of the 274FLR Loadbreak Fused Elbow Connector, including cable preparation, component assembly, and neutral connections.

Estimated time: 2h

Tools needed:

Probe Wrench, Torque Limiting Allen Wrench, Wire Brush, Crimp Tool, Wire Strippers, Hotstick

Supplies needed:

Cable Half Housing, Elbow Half Housing, Fuse, Compression Lug, Probe, Probe Connector, Hose Clamp, Lubricant, No. 14 AWG Copper Wire, 200ECS Cold Shrink Cable Seal (optional)

  1. Perform Safety and Pre-Installation Checks

    Ensure all apparatus is de-energized before beginning installation to prevent serious injury or fatality. Verify all package contents are complete and undamaged. Check all components for proper fit with the cable and mating products. Thread the probe into the compression lug to check threads for damage. Have all required tools at hand and maintain cleanliness throughout the procedure. This product must be installed by competent personnel trained in high voltage electrical equipment safety practices.

  2. Prepare the Cable for Training

    Using the bushing centerline as a reference, cut excess cable, leaving a minimum of 20 inches beyond the bushing. If using, slide the optional 200ECS Cold Shrink Cable Seal onto the cable. Remove the cable jacket for a length of 'A' + 7-3/8 inches from the bushing centerline (where 'A' is the fuse body length: 11-1/2 inches for FLR-1 or 15-3/4 inches for FLR-3). Unwrap and fold the concentric neutral wires back over the jacket and bind them. Squarely cut off the cable at a distance of 'A' from the bushing centerline, leaving a minimum of 7-3/8 inches of cable to terminate.

  3. Prepare the Cable End

    Cut 1-1/8 inches from the cable end, ensuring a square cut and taking care not to nick the conductor. Wire brush the bare aluminum conductors immediately and install the compression lug. Rotate the lug to spread the inhibitor. Crimp the unthreaded end of the compression lug to the conductor, starting at the crimp line mark and rotating 180 degrees for each successive crimp. Carefully wipe any excess inhibitor from the outside of the lug and cable. Remove the insulation shield 5-1/2 inches from the end of the lug and bevel the insulation end by a maximum of 1/8 inch. Thoroughly clean the insulation to remove all traces of conductive residue.

  4. Assemble the Cable Half of the Fused Elbow

    Apply the supplied lubricant to the outside of the connector, the cable insulation, the conductive shield, and the cable entrance end of the Fused Elbow cable half. Insert the connector and cable into the cable half of the Fused Elbow until the top end of the connector protrudes beyond surface 'A'. This allows the fuse to be tightened before bottoming on the rubber.

  5. Install and Secure the Fuse

    Insert the threaded terminal end of the fuse into the cable half of the Fused Elbow and hand tighten it into the cable connector. CAUTION: The fuse stud will fracture if over-torqued. Pull the housing up against the bottom of the tightened fuse.

  6. Assemble and Position the Probe Connector

    Assemble the probe connector to the fuse terminal. Rotate the probe connector so that its flats are perpendicular to the bushing with which it will mate. Lock the probe connector in position by tightening the setscrews using the special torque limiting allen wrench supplied in the fuse kit. Rotate the cable half of the Fused Elbow so that the test point is perpendicular to the flats on the probe connector.

  7. Assemble the Elbow Half and Probe

    Apply lubricant to the elbow half of the fused elbow and assemble it to the cable half. The cuff of the cable half will overlap the elbow half by 3/4 inch. Ensure the probe connector faces the opening of the fused elbow half and that the two test points are in line with each other. Insert the probe into the probe connector, pushing on the cable if necessary to align it with the fuse. Start the threads by hand, taking care not to cross-thread. Tighten the probe using the special torque limiting allen wrench supplied; insert the short end into the hole in the probe and tighten until the wrench bends and remains bent. Position the hose clamp as shown in the diagram and tighten it, but DO NOT OVERTIGHTEN.

  8. Connect the Concentric Neutral Wires

    Using a separate copper wire (No. 14 AWG / 2.5mm), insert one end through each grounding eye on the elbow housing and cable housings. Twist tightly, taking care not to damage the eyes. If used, finish installing the 200ECS jacket seal. Twist all neutral wires, exercising care not to damage the grounding eyes, and connect them to ground using an appropriate connector. Provide adequate slack in the wires for elbow operation.

  9. Prepare for Final Connection to Bushing

    Lubricate the receptacle portion of the elbow connector and the mating bushing with the supplied lubricant. ONLY LUBRICATE IF THE TRANSFORMER AND ELBOW ARE KNOWN TO BE DE-ENERGIZED. Do not operate by hand; use a hotstick as per operating instructions.
