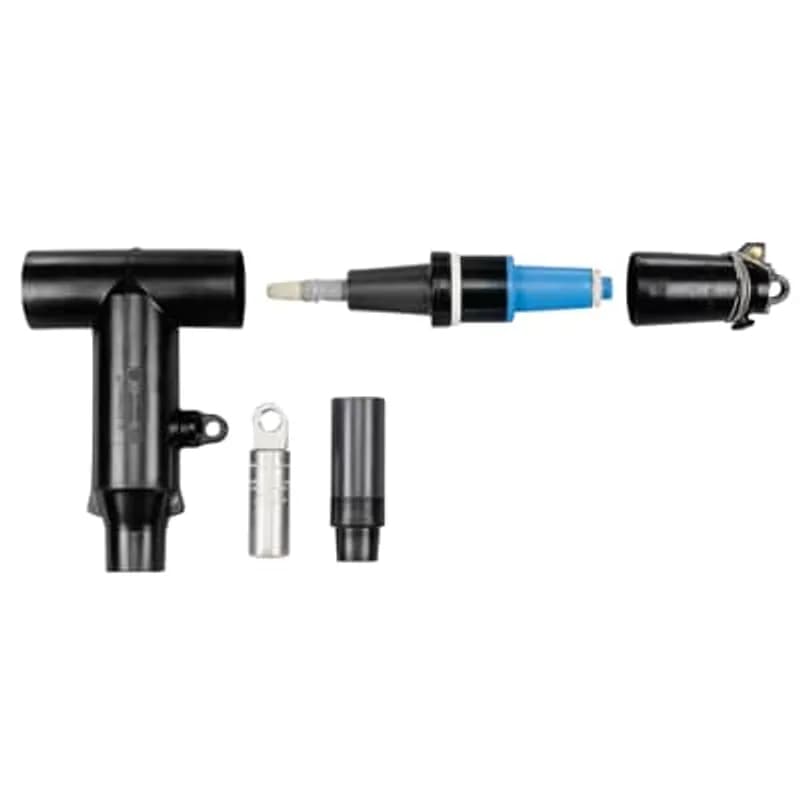

ABB Installation Products K656LRTP-N0410-DRG 600 Amp, 25kV, Deadbreak, Stick-Op Connector Kit with Test Point, With Insulated Cap.…
UPC: 075114379182
Documents & Media
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 600 Amp continuous current rating with 25kA momentary withstand
- 25kV voltage class with 15.2kV phase-to-ground and 26.3kV phase-to-phase ratings
- Deadbreak design allows direct testing and grounding without cable movement
- Stick-Op mechanism provides external visible break via hotstick removal
- Accommodates cable insulation diameters from 1.550" to 1.780" and 1000 AWG conductors
- Aluminum compression lug for 1000 AWG compressed stranded conductor
Specifications
Amperage Rating | 600 to 200 A |
Application | Connect 600 Amp interface to 200 Amp Loadbreak Tap |
Color | Black |
Conductor Range | 1000 kcmil |
Connection | Compression |
Connection Type | Compression Lug, Stick-Op |
Connection Type | Deadbreak, Stick-Op Connector |
Current Rating | 600 A |
Environmental Conditions | All Weather Conditions |
Insulation | True |
Material | Housing - EPDM-Rubber |
Material | Aluminum, EPDM Rubber, Insulated Cap |
Material | Aluminum |
Series | K656LRTP |
Size | 1.550 inch - 1.780 inch |
Size | 1.550-1.780 inch (Insulation Diameter) |
Special Features | Reducing Tap Plug 600 to 200 Amps. Test Point. Provides an External Visible Break by Hotstick Removal of the Elbow |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Stick Op Reducing Tap Plug Connector with Test Point |
Voltage Rating | 15 kV |
Voltage Rating | 25 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
756LR-N0410
35kV, 600 Amps, Deadbreak Elbow with Test Point. Cable Insulation Diameter Range 1.515 to 1.780 inch, Aluminum Lug, Conductor Size 1000 Stranded/Compressed. No Sealing Kit.
USK 350-18 DS
Aluminum Mechanical Splice, Double Screws, 18 Inches Long, 2 Wire, 350 kcmil - #6. Included (1) Repair Slice Cover, (4) Screws, (2) Insulating Rockets and Grease Packets.
K655SR-K0270
600 Amp, 15/25kV, 600 Series Deadbreak Straight Receptacle with Cable Adapter, Lug and Retaining Ring. Cable Insulation Diameter 1.090 inch to 1.310 inch. Aluminum Compression Lug. Conductor Size Compressed Stranded 4/0 or Compacted Solid 250 kcmil or mmSquared Compact 125.
252LRJS-C5250
25 kV, 200 Amp, Deadbreak, Elbow Connector with Test Point, with Jacket Seal, Cable Insulation Diameter - .805-1.060 inch. Bi-Metal Lug, Conductor Size 250 - 2/0 Stranded/Compressed or 3/0 Compact/Solid. Includes Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Bail Assembly, Tube of Lubricant, Installation Instructions, Crimp Chart and V.D. Cap-Peroxide.K655SR-L-0330-SG3
600 Amp, Straight Receptacle with Cable Adapter, Lug and Retaining Ring, DeadBreak, 15/25 KV, Cable Insulation Diameter 1.180 inch to 1.465 inch. Aluminum Compression Lug. Conductor Size kcmil Compressed Stranded 500 or Compacted Solid 600 or mmSquared Compact 250/300. Cold Shrinkable Seal with Copper Braid and Constant Force Spring Included.
DPK3MBS
Network Connector Kit, Main Bus Section, Pedestal Connector. 1/2 inch thick x 7 inch wide x 60 inch long. Copper, Silver Plated or Flash 4 inches Wide on Both Ends of Bar where Both Ends have 2 Rows of 4 Holes on 1.75 inch Centers. One Side of Center Section has 2 Rows of 18 - .562 inch Diameter Holes. Center of 1st hole at 15.125 inch along bar. Holes spaced at 1.75 inch.
756LR-J0260-S
35kV, 600 Amps, Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Aluminum Compression Lug. Cable Insulation Diameter 0.980 inch to 1.180 inch. Conductor Size AWG, Compressed/Stranded 3/0 or Compacted/Solid 4/0 or 95 mm2. Cold-Shrinkable Jacket Seal Included.How to Install and Configure 656/676LR and K656/K676LR Deadbreak Elbow Connectors
Install, prepare, and connect 656/676LR and K656/K676LR deadbreak elbow connectors on compatible high-voltage cable systems. This guide covers cable preparation, lug crimping, elbow assembly, grounding, mating connections, and voltage testing.
Estimated time: 1h
Tools needed:
Cable cutter, Cable stripper, Knife or jacket removal tool, Wire brush, Crimping tool, Hotstick, Suitable voltage sensing meter for capacitive test points
Supplies needed:
656/676LR or K656/K676LR elbow connector kit, Compression lug, Cable adapter, Insulating plug or mating part as required, Lubricant, Stud prepack/threaded stud, Ground wire (No. 14 AWG copper or equivalent ampacity), Vinyl plastic tape, Tape marker, Tape retainer, Silicone grease, Grounding connector
- Verify safety and inspect all parts
De-energize all apparatus before starting. Read the full instructions, inspect every component for damage and compatibility, and confirm that all required tools and supplies are available and clean. Do not install or remove parts on energized equipment.
- Position and cut the cable
Position the cable in its final location with enough slack to remove the elbows later. For concentric neutral cable, unwind the neutral wires, then cut the cable 1-3/4 in. (45 mm) from the center line of the mating product.
- Prepare the cable jacket and shield
Clean the cable outer surface for 24 in. (610 mm) or up to the bent-back concentric neutral wires. Remove the outer jacket and shield materials according to the cable type: fold back shield wires, remove or tape flat metallic tape shield, install tape retainer and marker for fabric tape shield, remove longitudinally corrugated shield and apply tape marker, or remove semi-con shield without nicking the insulation. If using UNISHIELD or lead sheath cable, use the required 10TL cable shield adapter
- Bevel, clean, and install the cable adapter
Bevel the cable insulation end at a 45-degree angle about 1/4 in. (6 mm) back. Clean and lubricate the insulation, working toward the semi-con shield, then install the cable adapter small end first until it is flush with the tape marker.
- Trim the conductor and attach the compression lug
Cut the protruding insulation even with the end of the cable adapter without nicking the adapter or conductor. Ensure the exposed conductor length is 4-3/8 to 4-11/16 in. (111 to 119 mm). Insert the conductor into the compression lug, wire brush aluminum conductors immediately before insertion, measure the check dimension, and crimp the lug per the lug instructions. Wipe off excess inhibitor after crimping.
- Install the elbow onto the cable adapter
Lubricate the cable adapter and the inside of the elbow cable entrance. Push the elbow onto the adapter until it can advance no farther, confirm the adapter remains flush with the tape marker, and remove the tape marker.
- Connect the elbow to the mating part
Remove protective caps, install the threaded stud if needed, and clean and lubricate both mating surfaces. Push the elbow onto the mating part, align the compression lug hole with the stud, then insert the opposite mating part into the elbow, engage the threads, and hand tighten. Torque the mating part to the value specified by the mating-part instructions.
- Install the insulating plug or voltage detection cap
If an insulating plug is used, clean and lubricate the inner surface of the voltage detection cap, place it on the elbow, and press firmly until it snaps into place. Treat the elbow as energized until voltage testing confirms otherwise.
- Ground the shield and waterproof the jacket
Insert a wire with ampacity at least equivalent to No. 14 AWG copper through the grounding eye, twist it into a small loop without damaging the eye, and connect it to ground with a suitable connector. Ground the cable shield using the grounding device instructions or an alternate approved method, and waterproof the cable jacket to help prevent moisture entry.
- Perform the voltage test and restore the cap
Remove the test point cap with a hotstick by peeling it off at an angle. Use only a suitable sensing device designed for capacitive test points; do not use conventional voltage measuring equipment. After testing, clean and lubricate the inside of the cap with silicone grease and reinstall it on the test point.
