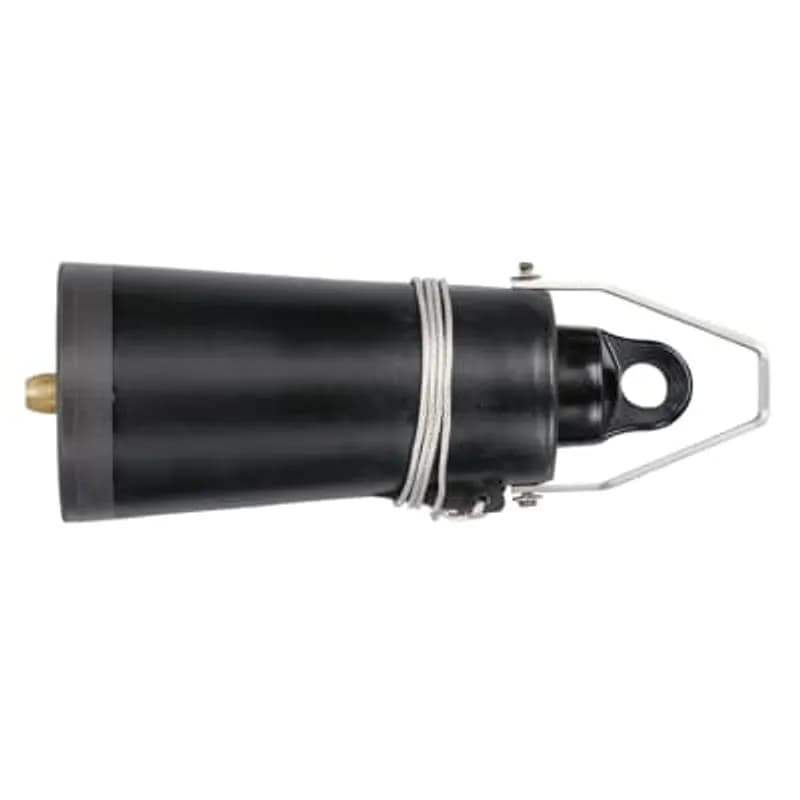

ABB Installation Products 274DRG 25kV 200 Amp, Loadbreak Insulated Cap with Ground Lead and Test Point, equipped with…
UPC: 783786652792
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 25kV, 200 Amp rated for medium-voltage loadbreak operations
- #14 AWG ground lead with brass probe for secure grounding
- Integrated test point for voltage verification without full disconnection
- Insulated cuff and 3.13" diameter x 8.56" length for compatibility with standard loadbreak elbows
- Designed for utility, industrial, and commercial medium-voltage applications
Specifications
Amperage Rating | 200 A |
Application | Fully shielded, fully submersible, hot stick operable, separable connectors designed for energized operation. They are suitable for use on 25kV class loadbreak systems |
Color | Black |
Insulation | True |
Length | 3.77 in |
Length | 95.758 mm |
Material | Housing - EPDM-Rubber |
Special Features | 25kV, 200 Amp Loadbreak Rated. Molded EPDM Rubber. Includes all brass probe. Provision for hotstick operation. Ground lead wire #14 AWG attached. Insulated cuff for extra protection. Includes test point |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Insulated Cap |
Voltage Rating | 25 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.6800 L |
Package Weight (Metric) | 0.7620 kg |
K655L3-LM0360
15/25kV 600 Series Deadbreak 3-Way L-Kit, Cable Insulation Diameter 1.280 inch to 1.430 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 650 /Compacted Solid 750 /mmSquared Compact 400.
370GLR
35kV, 200 Amp, Loadbreak Grounding Elbow Connector with 600 Volt, 6 Foot, 1/0 AWG Stranded, Tinned Copper Ground Lead. Includes (1) Grounding Elbow, (1) Grounding Cable 1/0 AWG, Lubricant, Installation Instructions and (1) Protective Shipping Cap. Body of Connector is 7.40 inch wide and 7.53 inch from Bottom Edge to Center of Probe.
273DRG-5
200 Amp, 25kV, Insulated Cap with Ground, Equipped with Insulated Cuff. Bi-Metal Compression Lug. Ground Lead 62 inches and White.
2701EA4A
200 Amp, 25kV, Loadbreak Extended Bushing Insert. Includes internal torquing feature using 200AT Assembly Tool.Frequently Asked Questions
What is the 274DRG insulated cap used for?
The 274DRG insulated cap is a fully shielded, submersible, hot stick operable connector designed for energized operation on 25kV class loadbreak systems.
What is the one-minute AC withstand voltage?
The one-minute AC withstand voltage for the 274DRG is 40kV.
What items are included in the 274DRG kit?
Each 274DRG kit contains one insulated cap (274DRG), one lubricant (82-08), and one installation instruction (IS-0894).
What is the momentary and fault close rating?
The momentary and fault close rating for the 274DRG is 10kA Symmetrical for 10 cycles.
What is the continuous and loadbreak current rating?
The continuous and loadbreak current rating for the 274DRG is 200 Amp.
What is the 15-minute DC withstand voltage?
The 15-minute DC withstand voltage for the 274DRG is 78kV.
What is the BIL impulse withstand rating of the 274DRG?
The BIL impulse withstand rating for the 274DRG is 125kV (1.2 x 50 microsecond wave).
What is the maximum phase-to-phase voltage rating?
The maximum phase-to-phase voltage rating for the 274DRG is 26.3kV.
What is the maximum phase-to-ground operating voltage?
The maximum phase-to-ground operating voltage for the 274DRG is 15.2kV.
What Elastimold products are compatible with the 274DRG?
The 274DRG is used to dead-end Elastimold® 2701A4 bushing inserts, 274FT feed thrus, 2702A1 feed-thru inserts, and 274 series junctions.
How to Install the 274DRG/376DRG Insulated Cap with Test Point & Ground Lead
This guide provides instructions for safely installing the 274DRG/376DRG insulated cap to insulate, shield, and waterseal 25kV or 35kV class loadbreak bushing interfaces.
Estimated time: 30m
Tools needed:
Hotstick
Supplies needed:
274DRG/376DRG Insulated Cap, Ground Lead, ELASTIMOLD approved lubricant
- De-energize and Inspect
Ensure all apparatus is de-energized before beginning installation. Inspect all parts for damage, proper rating, and compatibility with mating components. Verify the package contents are complete and undamaged. This product must be installed only by competent personnel trained in high voltage electrical equipment safety practices.
- Connect Ground Lead
Connect the free end of the electrostatic grounding wire to the system ground. Leave enough slack for hot-stick operation of the insulated cap. Ensure the grounding wire is trained to avoid contact with the bushing interface during operation.
- Prepare Insulated Cap
Remove the protective cap from the insulated cap and lubricate the receptacle's internal mating surface using only ELASTIMOLD approved lubricants. Do not substitute. Keep the internal mating surface free from dirt and grime.
- Attach Insulated Cap to Bushing
Firmly attach a hotstick to the insulated cap pulling eye. Insert the male contact of the insulated cap into the loadbreak bushing, and push it home with a fast, firm, straight motion. Verify it is fully mated with the locking ring seated. Detach the hotstick from the insulated cap.
- Remove Insulated Cap (Optional)
To remove the insulated cap, first attach a hot-stick to the pulling eye. Before pulling, rotate the cap slightly in a clockwise direction while in the mated position to break surface friction. Pull the receptacle off with a fast, firm, straight motion. Remove the electrostatic grounding wire from the system ground. Replace the protective cap on the insulated cap to keep its internal surface clean.
