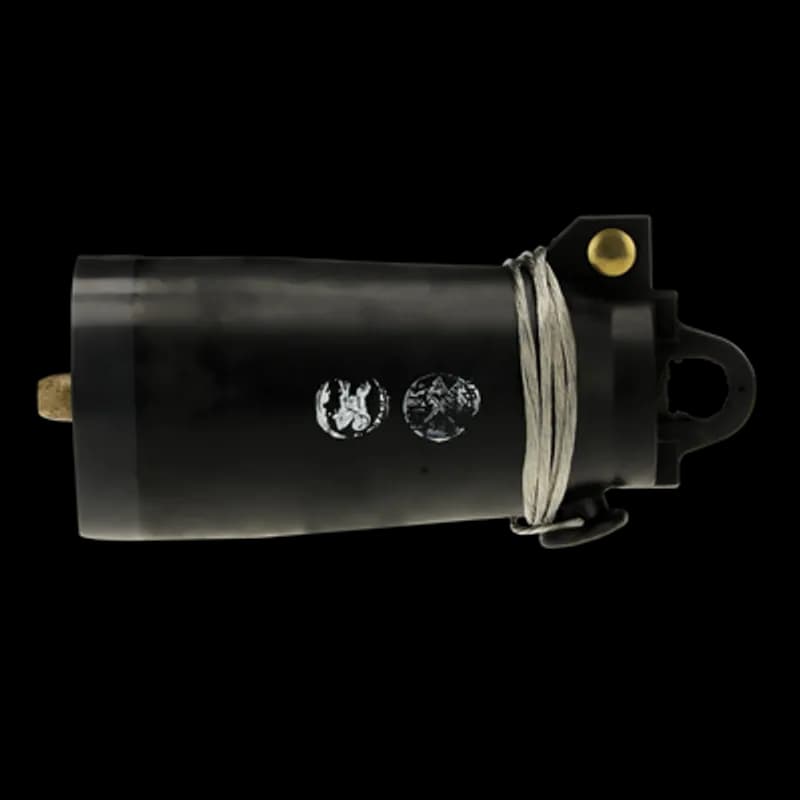

ABB Installation Products 273DRG(3) 200 Amp, 25kV, Insulated Cap with Ground, Equipped with Insulated Cuff. Ground Lead…
UPC: 783786297382
Contact for Pricing
Minimum Qty: 25
Multiplier: 25
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 200 Amp current rating
- 25kV voltage rating
- Includes insulated cuff for safety
- 38-inch black ground lead
- ABB Installation Products manufacturer
Specifications
Amperage Rating | 200 A |
Application | Fully shielded, fully submersible, hot stick operable, separable connectors designed for energized operation |
Color | Black |
Current Rating | 200 A |
Insulation | True |
Material | Insulated |
Material | Housing - EPDM-Rubber |
Series | 273DRG |
Size | Diameter 2.90 inch (73.7mm) |
Special Features | 25kV, 200 Amp Loadbreak Rated. Molded EPDM Rubber. Includes all brass probe. Provision for hotstick operation. Ground lead wire #14 AWG attached. Insulated cuff for extra protection |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Loadbreak Insulated Cap |
Voltage Rating | 25kV |
Voltage Rating | 25 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.4900 L |
Package Weight (Metric) | 0.6760 kg |
K656CETP-J0270
25kv, 600 Amp Series, Deadbreak Combo-T. Connector Elbow with Intergral 200 Amp Loadbreak Tap Plug with Test Point. Cable Insulation Diameter 0.980 to 1.180 inches (24.9-30.0mm). Aluminum Conductor Material, Conductor Code 270 - 4/0 Stranded/Compressed or 250 Solid/Compact. No Sealing Kit.
274DRG
25kV 200 Amp, Loadbreak Insulated Cap with Ground Lead and Test Point, equipped with insulated cuff. #14 AWG Ground Lead. Brass Probe. 3.13 inch Diameter, 8.56 inch Length.
370GLR
35kV, 200 Amp, Loadbreak Grounding Elbow Connector with 600 Volt, 6 Foot, 1/0 AWG Stranded, Tinned Copper Ground Lead. Includes (1) Grounding Elbow, (1) Grounding Cable 1/0 AWG, Lubricant, Installation Instructions and (1) Protective Shipping Cap. Body of Connector is 7.40 inch wide and 7.53 inch from Bottom Edge to Center of Probe.
273DRG-5
200 Amp, 25kV, Insulated Cap with Ground, Equipped with Insulated Cuff. Bi-Metal Compression Lug. Ground Lead 62 inches and White.
Frequently Asked Questions
What are the key features of the 273DRG cap?
The 273DRG insulated cap is fully shielded, fully submersible, hot stick operable, and designed for energized operation. It also includes an integral ground lead and insulated cuff.
What is the one-minute AC withstand voltage?
The one-minute AC withstand voltage for the 273DRG is 40kV.
What items are included in the 273DRG kit?
Each 273DRG kit contains one insulated cap 273DRG, one lubricant 82-08, and one installation instruction IS-0894.
What is the momentary and fault close rating?
The momentary and fault close rating for the 273DRG is 10kA Symmetrical for 10 Cycles.
What is the continuous and loadbreak current rating?
The continuous and loadbreak current rating for the 273DRG is 200 Amp.
What is the corona extinction voltage?
The corona extinction voltage for the 273DRG is 19kV AC at 3pC sensitivity.
What is the 15-minute DC withstand voltage?
The 15-minute DC withstand voltage for the 273DRG is 78kV.
What is the impulse withstand rating (BIL)?
The impulse withstand (BIL) rating for the 273DRG is 125kV (1.2 x 50 microsecond wave).
What is the maximum phase-to-phase voltage rating?
The maximum phase-to-phase voltage rating for the 273DRG is 26.3kV.
What is the maximum operating phase-to-ground voltage?
The maximum phase-to-ground operating voltage for the 273DRG is 15.2kV.
How to Install the 273DRG(3) Insulated Cap with Ground Lead
This guide provides step-by-step instructions for safely installing the 273DRG(3) Insulated Cap with Ground Lead onto a 25kV class loadbreak bushing interface, ensuring proper insulation, shielding, and watersealing.
Estimated time: 20m
Tools needed:
Hotstick
Supplies needed:
273DRG(3) Insulated Cap with Ground Lead, ELASTIMOLD approved lubricant
- Connect Grounding Wire
Ensure all apparatus is de-energized before beginning installation. Connect the free end of the electrostatic grounding wire to the system ground, leaving enough slack for hot-stick operation. Train the grounding wire so it does not contact the bushing interface during operation.
- Lubricate Insulated Cap
Remove the protective cover from the insulated cap. Lubricate the cap's internal mating surface using only the supplied lubricant or ELASTIMOLD approved lubricants. Do not substitute other lubricants, as they may be harmful to the product. Keep the internal mating surface free from dirt and grime.
- Install Insulated Cap
Firmly attach a hotstick (a minimum length of 8 ft. is recommended) to the insulated cap pulling eye. Insert the male contact of the insulated cap into the loadbreak bushing. Push it home with a fast, firm, straight motion, ensuring it is fully mated and the locking ring is seated. Detach the hotstick from the insulated cap.
