Overview

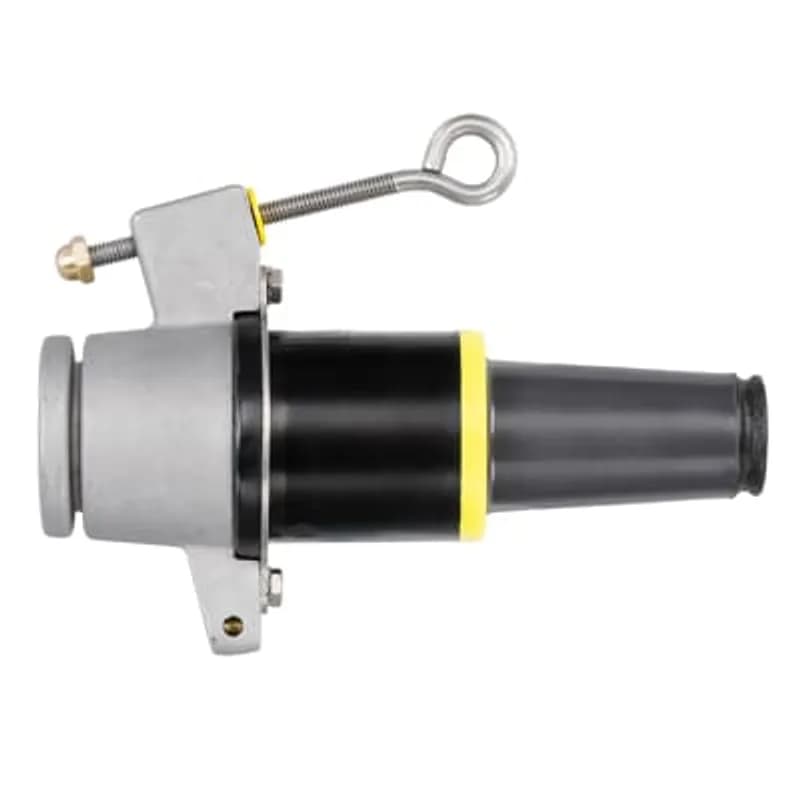

- 25kV class, 200A loadbreak-rated insulated parking bushing
- Molded EPDM interface with cast aluminum bracket for standard parking stands
- Black vented ring for pressure equalization and moisture prevention
- Directly integrates with ABB medium-voltage switchgear/transformer bushings
- Compatible with ANSI/IEEE C37.011 and IEC 60137 standards
Specifications
Amperage Rating | 200 A |
Color | Black |
Current Rating | 200 A |
Insulation | EPDM Rubber |
Material | Insulated |
Material | EPDM-Rubber |
Type | Insulated Parking Bushing |
Voltage Rating | 25kV |
Voltage Rating | 25 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 5.0000 L |
Package Weight (Metric) | 2.2680 kg |
SP4
The Polaris SP4 Set Screw Plug is a replacement part that take the place of the secure removable plugs present in many Polaris pre-insulated connectors. This plug fits connectors sized for 4 AWG wires, covering the set screws used to tighten their connections. Protect the interior of your Polaris pre-insulated connectors, each port of which is pre-loaded with an oxide inhibitor to ensure a low-contact resistance connection, by guarding the set screws from outside contaminants. Polaris designs connectors for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
K150-DP
15/25kV 200 Amp, Deadbreak Insulated Plug. Bails are required, but not included, order separately.Frequently Asked Questions
What is the purpose of the 272SOP bushing?
The 272SOP is a 25kV class, 200 Amp loadbreak insulated parking bushing for insertion into a standard parking stand.
What is the continuous and loadbreak current rating?
The continuous and loadbreak current rating for the 272SOP is 200 Amp.
What is the DC 15-minute withstand voltage?
The DC 15-minute withstand voltage is 78kV.
What is the corona extinction voltage rating?
The corona extinction voltage is 19kV AC at 3pC sensitivity.
What is the momentary and fault close rating?
The momentary and fault close rating is 10kA Symmetrical for 10 cycles.
What material is used for the 272SOP interface?
The 272SOP interface is made of molded EPDM.
What is the impulse withstand (BIL) rating?
The impulse withstand (BIL) rating is 125kV (1.2 x 50 microsecond wave).
What is the AC one-minute withstand voltage?
The AC one-minute withstand voltage is 40kV.
What is the maximum phase-to-phase voltage rating?
The maximum phase-to-phase voltage rating for the 25kV class is 26.3kV.
What is the maximum phase-to-ground operating voltage?
The maximum phase-to-ground operating voltage for the 25kV class is 15.2kV.
How to Install and Use the 272SOPA/372SOP Stand-Off Plug
This guide provides instructions for the safe installation and operation of the 272SOPA and 372SOP Stand-Off Plugs, designed to isolate and 'dead-end' loadbreak elbow connectors.
Estimated time: 30m
Tools needed:
Hotstick, Electrostatic grounding lead, Cleaning supplies
Supplies needed:
Elastimold approved lubricant, Protective cap
- Prepare for Installation and Grounding
Before starting, ensure all apparatus is de-energized. Connect an electrostatic grounding lead to the grounding lug on the stand-off plug, then connect the opposite end to ground, leaving enough slack for hotstick operation. Remove the protective cap from the stand-off plug. Clean and lubricate the stand-off plug interface with an Elastimold approved lubricant; do not substitute. Always replace the protective cap when the stand-off plug is not in use.
- Mount the Stand-Off Plug to the Parking Stand
Rotate the eyebolt counterclockwise until the nut is in contact with the bracket. Attach a hot stick firmly to the eyebolt. Using the hot stick, slide the Stand-off Plug into the parking stand.
- Secure the Stand-Off Plug
Back off the hot stick. Rotate the eyebolt clockwise until the nut on the opposite end snugly wedges the stand-off plug to the underside of the parking stand. DO NOT OVER TIGHTEN THE BOLT to avoid damage.
- Connect a Loadbreak Elbow (Optional)
CAUTION: Verify that the ground lead is connected between the stand-off plug lug and ground before attempting to assemble an elbow. Do not attempt to attach the ground lead after the elbow is assembled. To connect, remove the ELASTIMOLD loadbreak elbow connector from its bushing (following its specific operating instructions). Insert the male contact of the loadbreak elbow into the stand-off plug and push it home with a fast, firm, straight motion. Ensure it is firmly in place and the locking ring is seated. Complete assembly is indicated by no portion of the yellow band being visible when viewed from the side.
