Overview

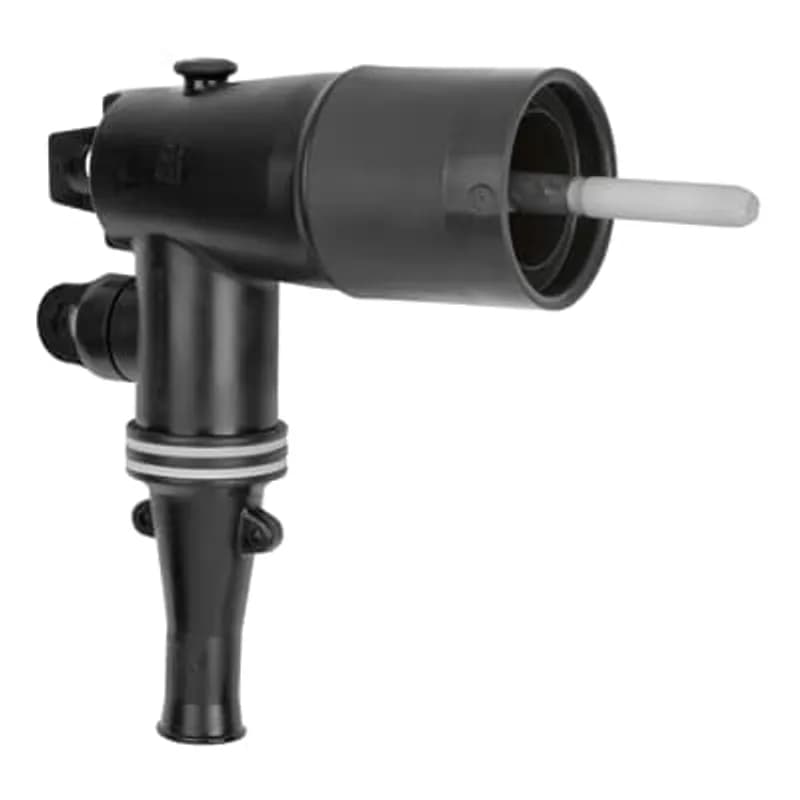

- 28kV, 200 Amp rated loadbreak elbow connector for medium-voltage applications
- Integrated capacitive test point for safe voltage verification without service interruption
- Supports cable insulation diameters from 0.805" to 1.060" (20.45 mm to 26.92 mm)
- Accommodates 1/0 stranded and 2/0 solid wire sizes with copper compression lug
- Includes probe, probe wrench, lubricant, crimp chart, and installation instructions
Specifications
Amperage Rating | 200 A |
Application | 28 kV, 200 Amp |
Color | Black |
Conductor Range | 1/0 STR/COMPR AWG , 2/0 SOL/COMPT AWG |
Connection | Compression |
Environmental Conditions | All Weather Conditions |
Insulation | True |
Material | Housing - EPDM-Rubber |
Size | 9.03 inch (299.4 mm) X 8.20 inch (208.3 mm) not including probe, 2.86 inch (72.6 mm) Diameter |
Special Features | 28kV, 200 Amp Loadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation. Provision for ground wire connection. Wide cable range with minimum number of sizes. Long bi-metal compression lug is standard. Non-corrosive capacitive test point |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Loadbreak Elbow Connector with Test Point |
Voltage Rating | 28 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
262LR-D5240
25kV 200 Amp, Loadbreak Elbow Connector with Test Point, .890 inch - 1.220 Inch Cable Insulation Diameter, Wire Size 1/0 Stranded or 2/0 Solid. Bi-Metal Compression Lug.
262LR-C2260
28kV, 200 Amps, Loadbreak Elbow Connector with Test Point, No Sealing Kit, .805 inch - 1.060 Inch Cable Insulation Diameter, 3/0 Stranded, 4/0 Solid Wire Size, Copper Compression Lug. Contains Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Tube of Lubricant, Crimp Chart and Installation Instructions.
K656I-H0250-S
15-25kV 600 Series Deadbreak Separable Straight Joint Package (2-Way) with Test Point. Cable Insulation Diameter 0.850 inch to 1.050 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 2/0 /Compacted Solid 3/0 /mmSquared Compact 70. Cold-Shrinkable Jacket Seal Included.
K655LR-G0240-SG3
600 Amp, 15/25kV, 600 Series Deadbreak, Elbow with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Aluminum Compression Lug. Cable Insulation Diameter 0.760 inch to 0.950 inch. Conductor Size AWG Compressed Stranded 1/0 or Compacted Solid 2/0. Cold-Shrinkable Seal with Copper Braid and Constant Force Spring.
K656LR-F0270-SG3
15/25kV, 600 Amp Deadbreak Separable WYE Joint Connector with Test Point. Cable Insulation Diameter F - 0.640 - 0.820 inch. Aluminum Compression Connector. Conductor Size 270 - 4/0 Stranded/Compressed or 250 kcmil Solid/Compact. Sealing Kit SG3 - Cold-Shrinkable Seal with Copper Braid and Constant Force Spring.K656LR-F0250-SG3
15/25kV, 600 Amp Deadbreak Separable WYE Joint Connector with Test Point. Cable Insulation Diameter F - 0.640 - 0.820 inch. Aluminum Compression Connector. Conductor Size 250 - 2/0 Stranded/Compressed or 3/0 Solid/Compact. Sealing Kit SG3 - Cold-Shrinkable Seal with Copper Braid and Constant Force Spring.
162LR-A2220-S
200 Amp, 15kV, Loadbreak Elbow Connector with Test Point, Cable Insulation Diameter 0.575 inch to 0.740 inch. Copper Compression Lug. Conductor Size AWG Compressed Stranded #2/Solid #1/mmSquared 33.62. 200ECS Jacket Seal Included.Frequently Asked Questions
What are the voltage ratings for this elbow?
The enhanced Elastimold 200 amp loadbreak elbow is available in 15 kV and 25 kV series.
Does the elbow have a no-stick interface?
Yes, it features a no-stick interface when used with Elastimold bushings, which has been NEETRAC tested.
Is the Elastimold elbow RUS accepted?
Yes, the enhanced Elastimold 200 amp loadbreak elbow has Rural Utilities Service (RUS) acceptance from the U.S. Department of Agriculture (USDA).
What standards and certifications does the product have?
The enhanced Elastimold elbow is IEEE 386 compliant and has ANSI certification. It also has Rural Utilities Service (RUS) acceptance.
What safety features does the enhanced elbow include?
It features improved insulation for 15 kV elbows, rigid probe support, a no-stick interface with Elastimold bushings, a robust stainless-steel pulling eye, and dual grounding eye positions.
What is the Elastimold 200 amp loadbreak elbow?
It is an enhanced 200 amp loadbreak elbow available in 15 kV and 25 kV series, designed for easier switching operations.
What are the voltage ratings for this elbow?
The enhanced Elastimold 200 amp loadbreak elbow is available in 15 kV and 25 kV series.
Does the elbow have a no-stick interface?
Yes, it features a no-stick interface when used with Elastimold bushings, which has been NEETRAC tested.
Is the Elastimold elbow RUS accepted?
Yes, the enhanced Elastimold 200 amp loadbreak elbow has Rural Utilities Service (RUS) acceptance from the U.S. Department of Agriculture (USDA).
What is the Elastimold 200 amp loadbreak elbow?
It is an enhanced 200 amp loadbreak elbow available in 15 kV and 25 kV series, designed for easier switching operations.
How to Install the Elastimold 262LR Loadbreak Elbow Connector
This guide provides step-by-step instructions for the safe and proper installation of the Elastimold 262LR Loadbreak Elbow Connector, including cable preparation, assembly, and grounding procedures.
Estimated time: 1h 30m
Tools needed:
Probe wrench, Crimp tool (specific to compression lug), Wire brush, Cable cutting tool, Wire strippers, Hotstick (for final connection and operation), Suitable capacitive sensing device
Supplies needed:
Elastimold 262LR Loadbreak Elbow Connector Kit (includes housing, compression lug, probe, lubricant), No. 14 AWG (2.5mm) copper wire (for grounding), Appropriate connector (for neutral wires), Cold shrink sealing kit (e.g., 200ECS, 200ECS-G1, 200ECS-G2, if applicable), Conductive copper tape (if using 200ECS-G2 kit), Vinyl tape (if using jacketed cable with drain wires)
- Perform Pre-Installation Checks and Safety Measures
DANGER: Ensure all apparatus is de-energized before starting installation. Do not touch or move energized products. Verify that the installation will be performed by competent personnel trained in high voltage electrical equipment safety practices. Inspect all parts for damage, correct rating, and compatibility with the cable and mating products. Check package contents for completeness. Thread the probe into the compression lug by hand to ensure threads are free of damage. Have all required tools ready and maintain cleanliness throughout the procedure.
- Prepare the Cable for Termination
Train the cable to ensure adequate slack for future operation. Cut the cable squarely at the centerline of the bushing. Based on your cable type (non-jacketed concentric neutral, jacketed concentric neutral, jacketed with drain wires, or jacketed copper tape shield), follow the specific instructions in the product manual for removing the outer jacket, unwrapping neutral/ground wires, and preparing the shield. If using a cold shrink sealing kit, slide the cold shrink tube onto the cable, loose end first, before proceeding. Remove the insulation shield and insulation 2-1/8” (55mm) from the cable end, cutting squarely without nicking the conductor. Remove the insulation shield 6-7/8” (175mm) from the cable end, ensuring a straight, smooth, and squared cut. Bevel the insulation end a maximum of 1/8” (5mm). Thoroughly clean the insulation to remove all traces of dirt or excess inhibitor.
- Install the Compression Lug
Wire brush bare aluminum conductors immediately before installation. Install the compression lug onto the prepared conductor. Rotate the lug to spread the inhibitor evenly. Position the compression lug so that the contact threaded hole aligns with the bushing bore. Crimp the lug according to the crimp chart provided with the lug, starting at the crimp line mark and rotating 180 degrees for each successive crimp. Carefully wipe any excess inhibitor from the outside of the lug and cable.
- Assemble the Elbow Connector Housing
Lubricate the cable insulation and the inside of the elbow housing with the supplied lubricant. DO NOT SUBSTITUTE other lubricants, as they may be harmful. Keep the insulation clean. Slide the elbow connector onto the cable using a back-and-forth twisting motion until it is fully seated. Wipe off any excess lubricant from the exterior of the elbow and cable. Align the elbow connector with the compression lug’s threaded hole. Thread the probe into the lug by hand, ensuring not to cross-thread. The probe should turn freely for approximately four turns before becoming snug. Tighten the probe with the supplied probe wrench until the wrench bends, indicating proper torque.
- Ground the Elbow Connector
Insert one end of a separate No. 14 AWG (2.5mm) copper wire or equivalent through the grounding eye on the elbow. Twist the wire tightly, taking care not to damage the grounding eye. For concentric neutral cables, twist all neutral wires together and connect them to ground using an appropriate connector. Ensure adequate slack in the ground and neutral wires to allow for future elbow operation. If using a cold shrink grounding kit, refer to the instructions provided with that kit to complete the grounding installation.
- Connect the Elbow to the Bushing Plug
CONFIRM THAT THE TRANSFORMER AND ELBOW ARE DE-ENERGIZED before proceeding with this connection. Lubricate the receptacle portion of the elbow connector and the mating bushing with the supplied lubricant. Using a full insulated "hotstick" type tool, securely fasten it to the loadbreak connector pulling eye. Insert the probe tip approximately 2” (50mm) into the bushing. Immediately push the elbow home with a fast, firm, straight motion, using sufficient force to engage the internal lock on the elbow connector and bushing interface. DO NOT HOLD IN THE PARTIALLY INSERTED POSITION. DO NOT OPERATE BY HAND.
- Perform Voltage Test (for 262LR only)
Remove the test point cap with a hotstick, peeling it off at an angle. WARNING: The voltage test point is a capacitance device and is not directly connected to the conductor. Do not use conventional voltage measuring equipment. Test with a suitable sensing device designed for capacitive test points to determine if the cable is energized. To prevent serious or fatal injury, treat the elbow as energized until the "no voltage" test point indication is confirmed by other means. Contamination, moisture, dirt, or incorrect equipment can provide a false "no voltage" indication. After testing, clean the inside surface of the cap, lubricate with silicone lubricant (supplied), and replace it on the test point.
