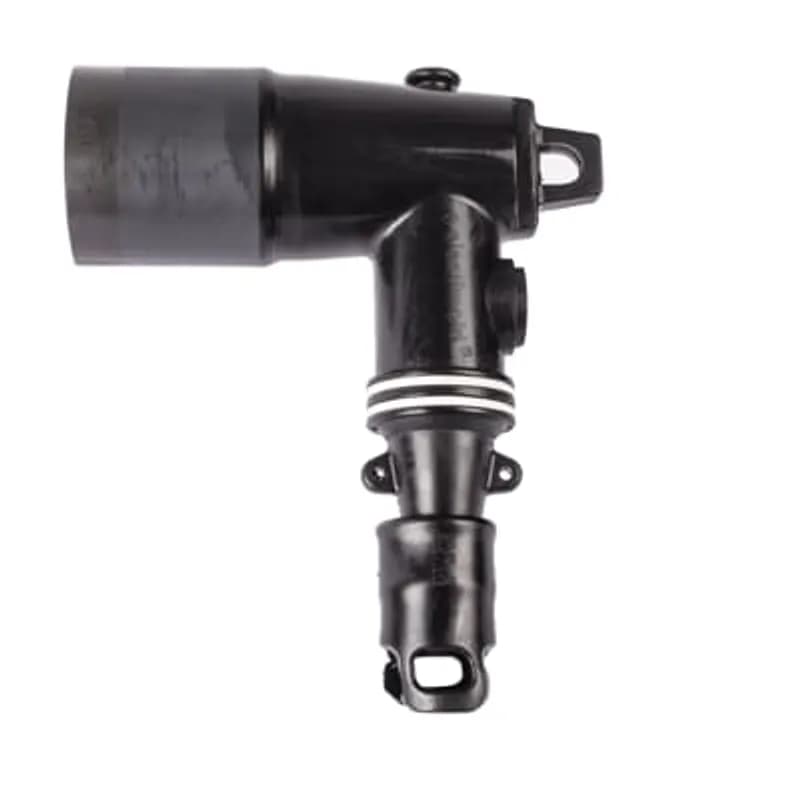

ABB Installation Products 261LRJS-B5240 25/28kV, 200 Amp, Loadbreak Jacket Seal Elbow Connector, .635 inch - .905 inch Cable…
UPC: 075114191111
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 25/28kV voltage rating with 200 Amp continuous current capacity
- Accommodates cable insulation diameters from .635" to .905"
- Bi-metal compression lug compatible with copper and aluminum conductors
- Fully shielded, submersible molded rubber construction with jacket seal
- Loadbreak operation with visible disconnect using standard hotstick tools
Specifications
Amperage Rating | 200 A |
Application | The 262LRJS is designed for Connecting to and Operating 25/28kV Class, 200 Amp Distribution apparatus. It Provides a Convenient Method to Connect/Disconnect Cable and Equipment on Power Distribution Systems |
Color | Black |
Conductor Range | 1/0 STR/COMPR AWG , 2/0 SOL/COMPT AWG |
Connection Type | Loadbreak Jacket Seal Elbow Connector |
Current Rating | 200 A |
Environmental Conditions | Products are designed and constructed for all applications including Padmount, Subsurface, Vault, Indoor, Outdoor, Direct Sunlight, Direct Buried and Continuously Submerged in Water |
Insulation | True |
Material | Housing - EPDM-Rubber |
Material | Bi-Metal Compression Lug |
Size | 0.635 inch - 0.905 inch Cable Insulation Diameter, 1/0 Stranded Wire Size |
Special Features | 25/28kV, 200 Amp Loadbreak Elbow. Fully Shielded, Fully Submersible Molded Rubber Housing, 100 Percent Peroxide-Cured Construction includes Insulation and Conductive EPDM Materials. Provision for Hot Stick Operation. Provision for Ground Wire Connection. Built in Cable Jacket Seal |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Loadbreak Elbow Connector and Jacket Seal |
Voltage Rating | 25/28 kV |
Voltage Rating | 25 to 28 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
252LR-B5240
25 kV, 200 Amp, Deadbreak, Elbow Connector with Test Point, Cable Insulation Diameter - .635-.905 inch. Bi-Metal Lug, Conductor Size 240 - 1/0 Stranded/Compressed or 2/0 Compact/Solid. Includes Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Bail Assembly, Tube of Lubricant, Installation Instructions, Crimp Chart and V.D. Cap-Peroxide.
167ELR-7495-5230S
15kV, 200 Amp, LoadBreak, Repair Elbow Connector/Extended Elbow, Cable Insulation .740-.950 inches, Bi-Metal Compression Lug, Conductor Size #1 Stranded/Compressed or 1/0 Compact/Solid. 200ECS Jacket Seal Included.167ELR-7495-5230
15kV, 200 Amp, LoadBreak, Repair Elbow Connector/Extended Elbow, Cable Insulation .740-.950 inches, Bi-Metal Compression Lug, Conductor Size #1 Stranded/Compressed or 1/0 Compact/Solid.
K151SP-C2220
15kv 200 Amp Straight Plug No Test Point, No Seal, Cable Insulation Diameter 0.805 inch to 1.060 inch. Copper Compression Lug. Conductor Size AWG Compressed Stranded #2/Solid #1/mmSquared 33.62.
168ELR-6689-5210-S
15kV 200 Amp, Loadbreak Repair Elbow Connector with Test Point, Repair Elbow has extended length contact and elbow housing resulting in a net gain of 3-1/4 inches in length. Bi-Metal Contact. Cable Insulation Diameter 0.665 inch to 0.895 inch. Conductor Size AWG Compressed Stranded #3/Solid #2/mmSquared 26.67. With Jacket Seal.168ELR-88110-5270
200 Amp, 15kV, Loadbreak Repair Elbow Connector with Test Point, Cable Insulation Diameter 0.880 inch to 1.100 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded 4/0 /Solid 250 /mmSquared 126.67.
167LRT-G5220-S
15KV, 200 Amp, Loadbreak Bolted Elbow with Tap, Cable Insulation Diameter 0.760 inch to 0.950 inch. Bi-Metal Compression Lug, Conductor Size AWG Compressed Stranded #2/Solid #1/mmSquared 33.62. 200ECS Jacket Seal Included.K151SP-C2200
15kv Dead Break 200 Amp Straight Plug Cable Insulation Diameter 0.805 inch to 1.060 inch. Copper Compression Lug. Conductor Size AWG Compressed Stranded #4/Solid #3/mmSquared 21.14.Frequently Asked Questions
How does the elbow reduce life cycle costs?
It is optimized for switching operations, offers lifetime ease of operation and non-stick performance with Elastimold bushings, and has an improved seal system.
What is the Elastimold 200 amp loadbreak elbow?
It is an enhanced 200 amp loadbreak elbow available for 15 kV and 25 kV series, designed for switching operations.
What safety features does the enhanced elbow include?
It includes improved insulation for 15 kV elbows, rigid probe support, a no-stick interface with Elastimold bushings, a robust stainless-steel pulling eye, and dual grounding eye positions.
What standards and certifications does the elbow meet?
The enhanced Elastimold 200 amp loadbreak elbow is IEEE 386 compliant and has ANSI certification. It also has Rural Utilities Service (RUS) acceptance.
Is the Elastimold elbow approved for rural infrastructure projects?
Yes, it has Rural Utilities Service (RUS) acceptance from the U.S. Department of Agriculture (USDA), authorizing its use in rural infrastructure construction.
How does the enhanced elbow offer increased flexibility?
It offers additional sizes, improved wider cable ranges, an easy order system, and an optional integral jacket seal.
Does the Elastimold elbow feature a no-stick interface?
Yes, it incorporates a no-stick interface when used with Elastimold bushings, which has been NEETRAC tested.
What is the function of the rigid probe support?
The internal rigid probe support ensures proper switching and easy probe installation.
What material is the pulling eye made from?
The pulling eye is made from robust stainless steel, promoting durable hotstick control.
Is an integral jacket seal available for the elbow?
Yes, the enhanced design includes an optional integral jacket seal.
How to Install Elastimold 261LRJS/262LRJS Loadbreak Elbow Connectors
This guide provides step-by-step instructions for the safe and proper installation of Elastimold 261LRJS and 262LRJS Loadbreak Elbow Connectors, including cable preparation, assembly, and connection to a bushing.
Estimated time: 1h 30m
Tools needed:
Probe wrench, Crimp tool, Wire brush, Hotstick
Supplies needed:
Lubricant (Do Not Substitute), Mastic sealing strips, Vinyl tape, No. 14 AWG / 2.5mm copper wire, Grounding connector
- Perform Pre-Installation Checks and Safety Review
Ensure all apparatus is de-energized before starting installation. Inspect all package contents and components for completeness, damage, and compatibility with the cable and mating products. Verify the probe threads freely into the compression lug; if resistance occurs, replace damaged components. Read all instructions thoroughly and gather all required tools. If installing a 262LRJS, lubricate and install the test point cap if not already present.
- Train and Prepare Cable Length
Train the cable to ensure sufficient slack for ease of operation. Pull extra cable 24-26 inches beyond the bushing centerline and mark the centerline. Remove the outer jacket 7-3/4 to 8 inches back from the tape mark. Unwrap the neutral wires back past the bushing centerline. Cut the excess cable squarely at the bushing centerline.
- Prepare Cable End Insulation and Neutral Wires
Wrap one mastic strip, stretching slightly, around the cable jacket. Bend all neutral wires straight back over the mastic and along the cable, pressing them into the mastic. Wrap a second mastic strip completely around the outer jacket, overlapping the imbedded neutral wires. Use a third mastic strip if needed to build up the outer diameter, then cover all mastic with vinyl tape. Remove the insulation shield and insulation from the cable end, cutting squarely without nicking the conductor. Bevel the insulation end 1/8 inch maximum. Thoroughly clean the insulation to remove all traces of conductive residue.
- Install Compression Lug onto Conductor
Wire brush bare aluminum conductors immediately after cleaning. Install the compression lug onto the conductor, rotating it to spread inhibitor. Position the compression lug so its contact threaded hole aligns with the bushing bore. Crimp the lug starting at the crimp line mark, rotating 180 degrees for each successive crimp. Carefully wipe any excessive inhibitor from the outside of the lug and cable.
- Assemble Elbow Housing onto Cable
Lubricate the cable insulation and the inside of the elbow housing with the supplied lubricant; do not substitute. Slide the elbow connector onto the cable with a back and forth twisting motion. Wipe off all excess lubricant. Align the elbow with the compression lug's threaded hole. Thread the probe into the lug by hand, ensuring it turns freely for approximately four turns before becoming snug. Tighten the probe with the supplied wrench until the wrench bends.
- Connect Concentric Neutral Wires
Insert one end of a separate No. 14 AWG (2.5mm) copper wire or equivalent through the grounding eye on the elbow and twist tightly, taking care not to damage the eye. Pull the hood over the concentric neutral seal area on the cable by pulling the tabs or rolling the seal down. Twist all neutral wires together and connect them to ground using an appropriate connector, ensuring adequate slack for elbow operation.
- Connect Elbow to Bushing Plug
Lubricate the receptacle portion of the elbow connector and the mating bushing with the supplied lubricant. IMPORTANT: ONLY LUBRICATE IF THE TRANSFORMER AND ELBOW ARE KNOWN TO BE DE-ENERGIZED. Operate the connection using a full insulated hotstick type live-line tool; do not operate by hand.
