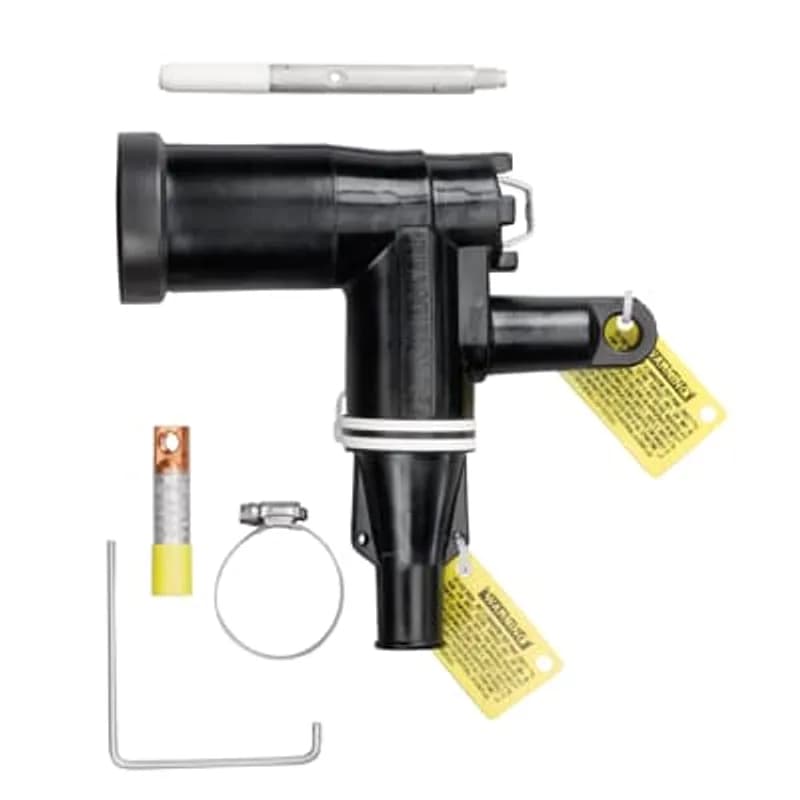

ABB - Installation Products 167DLR-H5270 - 200 Amp, 15kV, Loadbreak Direct Test Elbow Connector, Cable Insulation Diameter 0.850 inch to 1.050 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded 4/0 or Solid 250 or mmSquared 26.67.

ABB Installation Products 167DLR-H5270 200 Amp, 15kV, Loadbreak Direct Test Elbow Connector, Cable Insulation Diameter 0.850…

UPC: 783786497010


Documents & Media
Installation InstructionsSpecification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB 167DLR-H5270 Loadbreak Direct Test Elbow Connector is a 200 Amp, 15kV rated device engineered for underground distribution systems. This elbow connector accommodates cable insulation diameters from 0.850 to 1.050 inches, making it compatible with a wide range of medium-voltage cables. The bi-metal compression lug ensures reliable electrical contact with compressed stranded 4/0 AWG or solid 250 mm² conductors, providing a secure termination for loadbreak applications. Key specifications include a maximum operating voltage of 15kV (8.3kV phase-to-ground, 14.4kV phase-to-phase) and a continuous current rating of 200 Amps, suitable for underground residential, commercial, and industrial power distribution networks. The connector’s design allows for safe loadbreak operations, enabling energized connections and disconnections without interrupting service. The bi-metal construction ensures compatibility with both copper and aluminum conductors, reducing the need for additional adapters or accessories. The 167DLR-H5270 features a fully shielded, fully submersible molded rubber housing with 100% peroxide-cured insulation, insert, and jacket for durability in harsh underground environments. It includes an Elastimold® Direct Test System (EDTS) port for direct conductor voltage testing, allowing safe energized status determination. The elbow provides provision for hot stick operation and ground wire connection, enhancing operational flexibility. The connector meets ANSI/IEEE Standard 386, with a 95kV BIL impulse withstand rating and 11kV AC corona extinction sensitivity. Ideal for utilities and contractors requiring a dependable, high-ampacity elbow connector for medium-voltage cable systems.
  • 200 Amp continuous and loadbreak current rating
  • 15kV voltage class with 95kV BIL impulse withstand
  • Bi-metal compression lug for copper and aluminum conductors
  • Elastimold® Direct Test System (EDTS) port for direct voltage testing
  • Fully shielded, submersible molded rubber housing for underground use

Specifications

Amperage Rating
200 A
Application
15kV, 200 Amp Class loadbreak elbow connector which incorporates Elastimold Direct Test System (EDTS) for isolation, testing, and grounding
Color
Black
Conductor Range
4/0 STR/COMPR AWG , 250 kcmil
Connection Type
Loadbreak Direct Test Elbow Connector
Connection Type
Compression Lug
Current Rating
200 A
Environmental Conditions
Fully Submersible
Insulation
True
Material
Bi-Metal, Plastic
Material
Bi-Metal Compression Lug
Material
Housing - EPDM-Rubber
Series
167DLR
Size
Cable Insulation Diameter 0.850 inch to 1.050 inch
Special Features
Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured insulation, insert and jacket. Provision for hot stick operation, Provision for ground wire connection. Wide cable range with minimum number of sizes. Elastimold Direct Test System port for easy energized status determination
Standard
ANSI/IEEE Standard 386
Temperature Rating, Maximum
149 F
Temperature Rating, Maximum
65 C
Temperature Rating, Minimum
-40 F
Temperature Rating, Minimum
-40 C
Type
Loadbreak Direct Test Elbow Connector
Voltage Rating
15 kV
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
2.0000 L
Package Weight (Metric)
0.9070 kg
200 Amp, 15kV, Loadbreak Elbow Connector, Cable Insulation Diameter 0.890 inch to 1.220 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded 4/0 /Solid 250 /mmSquared 126.67. 200ECS Jacket Seal Included.

162LR-D5270-S

200 Amp, 15kV, Loadbreak Elbow Connector, Cable Insulation Diameter 0.890 inch to 1.220 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded 4/0 /Solid 250 /mmSquared 126.67. 200ECS Jacket Seal Included.
200 Amp, 15/25kV, Deadbreak Elbow, Straight Plug, Bails are required but not included, order separately. Cable Insulation Diameter 0.805 inch to 1.060 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 2/0 /Solid 3/0 /mmSquared 67.43.

K151SP-C0250

200 Amp, 15/25kV, Deadbreak Elbow, Straight Plug, Bails are required but not included, order separately. Cable Insulation Diameter 0.805 inch to 1.060 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 2/0 /Solid 3/0 /mmSquared 67.43.
200 Amp, 15/25kV, Deadbreak Elbow, Straight Receptacle, Bails are required but not included, order separately. Cable Insulation Diameter 0.805 inch to 1.060 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded #1 or Solid 1/0 or mmSquared 42.41.

K151SR-C0230

200 Amp, 15/25kV, Deadbreak Elbow, Straight Receptacle, Bails are required but not included, order separately. Cable Insulation Diameter 0.805 inch to 1.060 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded #1 or Solid 1/0 or mmSquared 42.41.
200 Amp, 15/25kV, Deadbreak Elbow, Straight Plug, Bails are required but not included, order separately. Cable Insulation Diameter 0.805 inch to 1.060 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded #1/Solid 1/0 /mmSquared 42.41.

K151SP-C0230

200 Amp, 15/25kV, Deadbreak Elbow, Straight Plug, Bails are required but not included, order separately. Cable Insulation Diameter 0.805 inch to 1.060 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded #1/Solid 1/0 /mmSquared 42.41.
200 Amp, 15kV, Loadbreak Replacement Elbow Connector with Test Point, Cable Insulation Diameter 0.640 inch to 0.820 inch. Bi-Metal Compression Lug, Conductor Size 220 - AWG Compressed Stranded 1/0 /Solid 2/0 /mmSquared 53.49. Repair Elbow has extended length contact and elbow housing resulting in a net gain of 8-7/8 inches in length. Includes 00400X long Bi-Metal Contact. Conductor Size 240 AWG Compressed Stranded 1/0 /Solid 2/0 /mmSquared 53.49.

168RLR-F5220-5240

200 Amp, 15kV, Loadbreak Replacement Elbow Connector with Test Point, Cable Insulation Diameter 0.640 inch to 0.820 inch. Bi-Metal Compression Lug, Conductor Size 220 - AWG Compressed Stranded 1/0 /Solid 2/0 /mmSquared 53.49. Repair Elbow has extended length contact and elbow housing resulting in a net gain of 8-7/8 inches in length. Includes 00400X long Bi-Metal Contact. Conductor Size 240 AWG Compressed Stranded 1/0 /Solid 2/0 /mmSquared 53.49.
200 Amp, 15/25kV, Deadbreak Elbow, Straight Receptacle, Bails are required but not included, order separately. Cable Insulation Diameter 0.805 inch to 1.060 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded #2 or Solid #1 or mmSquared 33.62.

K151SR-C0220

200 Amp, 15/25kV, Deadbreak Elbow, Straight Receptacle, Bails are required but not included, order separately. Cable Insulation Diameter 0.805 inch to 1.060 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded #2 or Solid #1 or mmSquared 33.62.
200 Amp, 15/25kV, Deadbreak Elbow, Straight Plug, Bails are required but not included, order separately. Cable Insulation Diameter 0.635 inch to 0.905 inch. Includes a copper compression lug. Conductor Size AWG Compressed Stranded #4/Solid #3/mmSquared 21.14.

K151SP-B2200

200 Amp, 15/25kV, Deadbreak Elbow, Straight Plug, Bails are required but not included, order separately. Cable Insulation Diameter 0.635 inch to 0.905 inch. Includes a copper compression lug. Conductor Size AWG Compressed Stranded #4/Solid #3/mmSquared 21.14.
Straight Receptacle, 200 Amp, DeadBreak, 15/25KV, Cable Insulation Diameter 0.635 inch to 0.905 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded #3 or Solid #2 or mmSquared 26.67.

K151SR-B0210

Straight Receptacle, 200 Amp, DeadBreak, 15/25KV, Cable Insulation Diameter 0.635 inch to 0.905 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded #3 or Solid #2 or mmSquared 26.67.

Frequently Asked Questions

What cable insulation diameters does this connector support?

The connector supports cable insulation diameters ranging from 0.850 to 1.050 inches.

What conductor sizes are compatible with this elbow connector?

The connector is compatible with compressed stranded 4/0 AWG or solid 250 mm² conductors.

What is the maximum operating voltage for this connector?

The maximum operating voltage for this connector is 15kV.

What type of lug does this connector use?

This connector uses a bi-metal compression lug for reliable electrical contact.

What is the continuous current rating of this connector?

The continuous current rating of this connector is 200 Amps.

Is this connector suitable for loadbreak operations?

Yes, this connector is designed for loadbreak operations, allowing safe energized connections and disconnections.

How to Install the 167DLR Direct Test Loadbreak Elbow Connector

This guide provides step-by-step instructions for the safe and proper installation of the 167DLR Direct Test Loadbreak Elbow Connector, including cable preparation, assembly, and connection to a bushing.

Estimated time: 45m

Tools needed:

Probe Wrench, Wire Brush, Crimp Tool, Wire Strippers, Hotstick, Cable Cut Back Template

Supplies needed:

167DLR Elbow Connector Housing, Compression Lug (02200XXX or 02500XXX type), Probe, Lubricant (supplied), UD Cable, No. 14 AWG / 2.5mm Copper Wire, Appropriate Ground Connector

  1. Perform Initial Checks and Safety Procedures

    DANGER: Ensure all apparatus is de-energized during installation. Inspect all parts for damage, rating, and compatibility with mating parts. Verify the package contents are complete and undamaged. Check all components for proper fit, ensuring the compression lug is either 02200XXX or 02500XXX type. Thread the probe into the compression lug to check for resistance; replace any damaged components if resistance is encountered. Gather all required tools and maintain cleanliness throughout the procedure.

  2. Train and Cut the Cable

    Train the UD cable as shown in the documentation, ensuring a minimum of 20 inches beyond the end of the cable pad mount transformer to ease operation. Cut the excess cable squarely at the center line of the bushing.

  3. Prepare the Cable End

    Unwrap and bind the concentric neutral wires 8-1/2 inches back from the end of the cable. Carefully remove the shield and insulation from the cable end, cutting squarely and taking care not to nick the conductor. Wire brush the bare aluminum conductors and immediately install the compression lug, rotating it to spread the inhibitor. Position the compression lug so its contact threaded hole aligns with the bushing bore. Crimp the lug according to the crimp chart, starting at the crimp line mark and rotating 180 degrees for each successive crimp. Carefully wipe excessive inhibitor from the outside of the lug and cable. Verify the 'CHECK' dimension is between 3 inches and 3-5/8 inches; if not, redo the cable preparation. Ensure the gap shown on the cutback template is a minimum of 1/8 inch and free of inhibitor and grease. Remove the semi-con shield as shown and bevel the insulation end a maximum of 1/8 inch. Thoroughly clean the insulation to remove all traces of conductive residue.

  4. Assemble the Elbow Connector

    Lubricate the cable insulation and the inside of the elbow housing with only the lubricant supplied; do not substitute. Keep the insulation clean of dirt and grime, and do not introduce excess grease into the gap between the lug and the insulation. Slide the elbow connector onto the cable using a back-and-forth twisting motion, then wipe off all excess grease. Align the elbow with the compression lug's threaded hole. Do not get lubricant on the threaded end of the probe. Thread the probe into the lug by hand, taking care not to cross-thread. The probe must turn freely for approximately four turns before becoming snug. Tighten the probe with the supplied wrench until the wrench bends.

  5. Connect the Concentric Neutral

    Using a separate copper wire (No. 14 AWG / 2.5mm or equivalent), insert one end through the grounding eye on the elbow and twist it tight, taking care not to damage the eye. Twist all neutral wires and the wire from the grounding eye together, then connect them to ground using an appropriate connector. Provide adequate slack in the wires for elbow operation.

  6. Connect the Elbow to the Bushing Plug

    DANGER: Lubricate the receptacle portion of the elbow connector and the mating bushing ONLY if the transformer and elbow are known to be de-energized. Using a full insulated hotstick type live-line tool, insert the probe tip approximately 2 inches into the bushing. Immediately push the elbow home with a fast, firm, straight motion, which will engage the internal lock on the elbow and bushing interface. DO NOT OPERATE BY HAND.
