Contact for Pricing
Minimum Qty: 400
Multiplier: 400
*Contact for lower quantities*

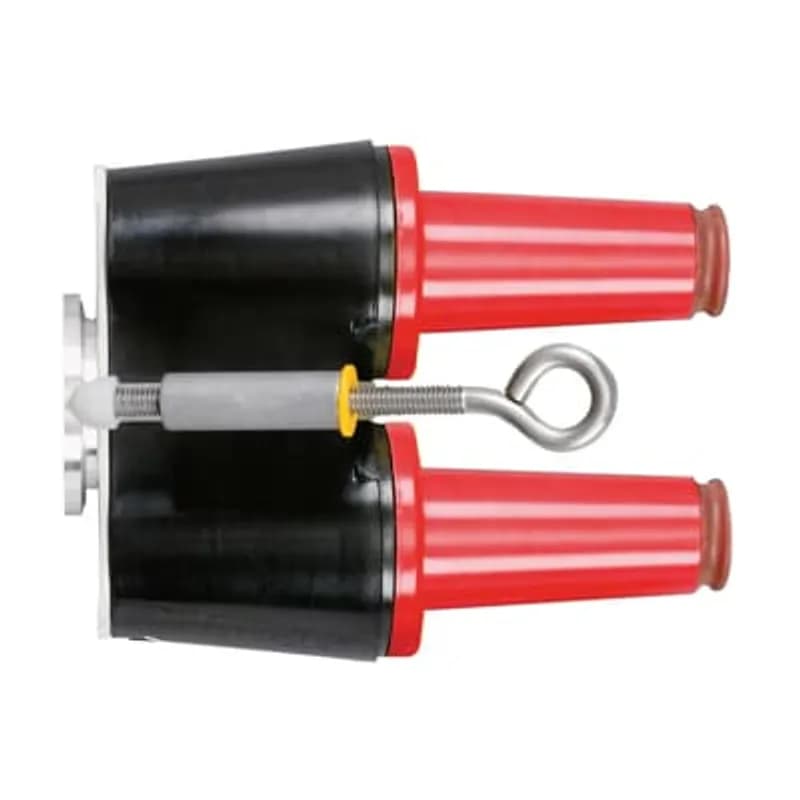

Overview
- 15kV voltage class with 8.3kV phase-to-ground and 14.4kV phase-to-phase ratings
- 200 Amp continuous and loadbreak current capacity
- Fully shielded, submersible design for energized operation
- Stainless steel bracket for corrosion-resistant mounting
- ABB - Installation Products Manufacturer
Specifications
Application | 15kV, 200 Amps |
Connection Type | Feed Thru |
Current Rating | 200 A |
Material | Stainless Steel |
Material | EPDM-Rubber |
Mounting | Brackets |
Mounting Type | Stainless Steel Bracket |
Series | 164 |
Size | 6.87 inch long x 5.93 inch wide |
Special Features | Stainless Steel Brackets |
Type | Feed-Thru |
Voltage Rating | 15 kV |
Voltage Rating | 15kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
K650RTW
15/25kV 600 Series Deadbreak Reducing Tap Well. Length 5.37 inch. Width 3 inch not counting bracket. 600/200 Amps
1601DLA
15kV, 200 Amp, DeadBreak to LoadBreak Bushing Adapter, Red. Includes hex-broach for Torque installation, Peroxide-cured insulation and jacket, Provision for ground wire connection, All copper current path. Red PBT interface shield reduces sticking and provides seating indicator.
K656DLR-K0300
600 Amp, 15/25kV, 600 Series Deadbreak Direct Test Elbow with Test Point, (with Insulated Plug, Cap, Stud, Lug and Cable Adapter), Aluminum Compression Lug. Cable Insulation Diameter 1.090 inch to 1.310 inch. Conductor Size kcmil Compressed Stranded 350 /Compacted Solid 400 /mmSquared Compact 185.K656DLR-H0270
600 Amp, 15/25kV, 600 Series Deadbreak Direct Test Elbow with Test Point, (with Insulated Plug, Cap, Stud, Lug and Cable Adapter), Aluminum Compression Lug. Cable Insulation Diameter 0.850 inch to 1.050 inch. Conductor Size AWG Compressed Stranded 4/0 or Compacted Solid 250 kcmil.K656DLR-L0320-SG3
600 Amp, 15/25kV, 600 Series Deadbreak Direct Test Elbow with Test Point, (with Insulated Plug, Cap, Stud, Lug and Cable Adapter), Aluminum Compression Lug. Cable Insulation Diameter 1.180 inch to 1.465 inch. Conductor Size kcmil Compressed Stranded 450 or Compacted Solid 500/550. Cold Shrinkable Seal with Copper Braid and Constant Force Spring Included.K656DLR-F0260
600 Amp, 15/25kV, 600 Series Deadbreak Direct Test Elbow with Test Point, (with Insulated Plug, Cap, Stud, Lug and Cable Adapter), Aluminum Compression Lug. Cable Insulation Diameter 0.640 inch to 0.820 inch. Conductor Size AWG or kcmil, Compressed Stranded 3/0 /Compacted Solid 4/0 /mmSquared Compact 95.
M655YSR-K0240
600 Amp, 35kV, Separable Cable Joint, Straight Receptacle. Cable Insulation Diameter 1.090 inch to 1.310 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 1/0 or Compacted Solid 2/0.Frequently Asked Questions
What items are included in the 164FT kit?
Each kit contains one 164FT feed-thru body, two protective shipping caps (1601-APC-1), two lubricants (82-08), and one installation instruction (IS-0376).
What Elastimold products are compatible with the 164FT?
The 164FT mates with 15kV Family of Elbow Connectors, 370TR test rod, 160GLR grounding elbow, and 160DR/DRG insulated cap.
What standards does the 164FT meet?
The 164FT meets ANSI/IEEE Standard 386, Latest Revision.
What is the impulse withstand (BIL) rating?
The impulse withstand (BIL) rating for the 164FT is 95kV.
What is the 164FT feed-thru used for?
The 164FT is a fully shielded, submersible insulated connector designed for energized operation in 15kV class loadbreak systems, providing a loadbreak junction point.
What is the continuous and loadbreak current rating?
The 164FT has a continuous and loadbreak current rating of 200 Amps.
What is the maximum phase-to-phase voltage rating?
The maximum phase-to-phase voltage rating for the 164FT is 14.4kV.
What is the maximum operating phase-to-ground voltage?
The maximum phase-to-ground operating voltage for the 164FT is 8.3kV.
What voltage class is the 164FT designed for?
The 164FT is designed for 15kV voltage class systems.
What is the impulse withstand (BIL) rating?
The impulse withstand (BIL) rating for the 164FT is 95kV.
How to Install the 164FT-SS Feed-Thru/Grounding Device
Instructions for installing the 164FT-SS feed-thru device as either a junction point or a grounding point.
Estimated time: 45m
Tools needed:
Hotstick, Voltage detection device, Live-line tool
Supplies needed:
Ground lead (No. 14 copper wire or equivalent), Lubricant (supplied), Loadbreak elbow, Grounding elbow, Insulated cap
- Prepare Ground Connection
Insert the ground lead into the grounding lug on the mounting hardware and tighten. Connect the other end of the lead to ground, ensuring enough slack for operation with a hotstick. Use No. 14 copper wire or equivalent.
- Prepare Feed-Thru Bushings
Remove the protective caps from the feed-thru bushings. Clean the bushing surfaces and lubricate them with the supplied lubricant. Do not substitute lubricants. Replace protective caps if the feed-thru is not in use.
- Attach Feed-Thru to Hotstick
Firmly attach the feed-thru eye to the hotstick.
- Mount Feed-Thru on Parking Stand
Using the hotstick, slide the feed-thru onto the parking stand. Unlock the hotstick and back it off to allow space for the eyebolt to be tightened. Tighten the eyebolt by rotating the hotstick clockwise until snug. Do not overtighten. Release the hotstick.
- Connect First Loadbreak Elbow (Junction Point Application)
Remove a loadbreak elbow from its apparatus loadbreak bushing. Using a hotstick firmly attached to the elbow, insert the probe tip into one feed-thru bushing until slight resistance is felt. Push the elbow home with a fast, firm, straight motion to engage the internal lock.
- Connect Second Loadbreak Elbow (Junction Point Application)
Remove a second loadbreak elbow. Using a hotstick firmly attached to the elbow, insert the probe tip into the remaining feed-thru bushing until slight resistance is felt. Push the elbow home with a fast, firm, straight motion to engage the internal lock.
- Disconnect Loadbreak Elbows (Junction Point Application)
To disconnect, ensure no system faults exist. Reverse the operational sequence, following the applicable loadbreak operating instructions, to return the loadbreak elbow(s) to the apparatus bushing(s).
- Verify System De-energization (Grounding Point Application)
Ensure the system is de-energized. Check the capacitive test point on the loadbreak elbow with an appropriate voltage detection device, or use a test rod and a meter capable of reading system voltage to check the test rod disc. If voltage is indicated, do not proceed without de-energizing the system. Keep the hotstick eye and test rod disc clear from ground until tested de-energized.
- Install Grounding Elbow (Grounding Point Application)
Install the ground elbow into the second plug of the feed-thru, following the grounding elbow operating instructions. IMPORTANT: Do not insert the grounding elbow unless the circuit has been tested 'De-Energized'.
- Verify Full Elbow Seating
Confirm that the elbow is fully seated by observing that no portion of the yellow band is visible when viewed from the side.
