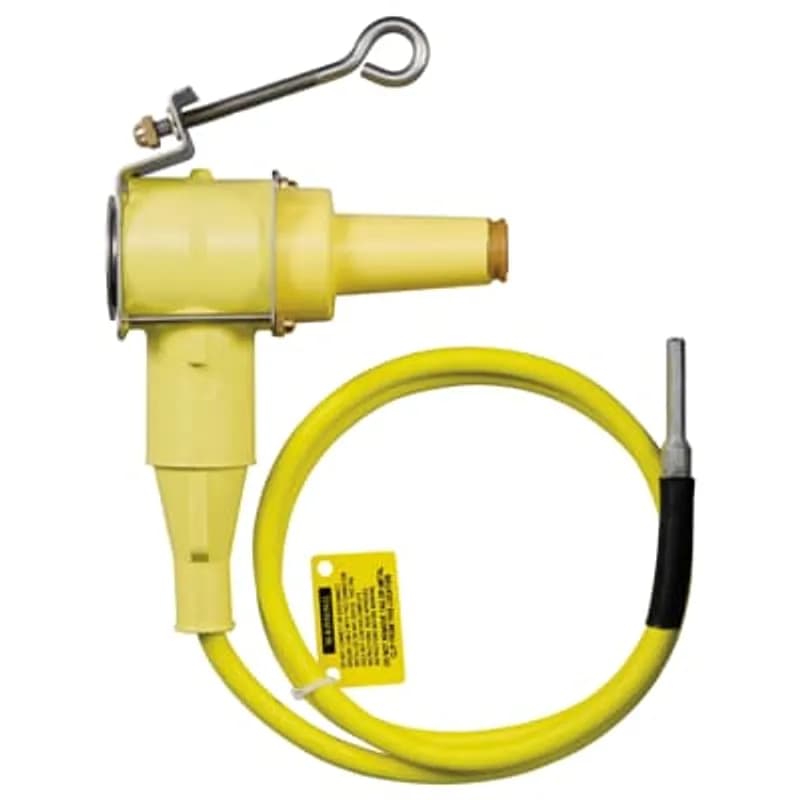

ABB - Installation Products 161GP - 200 Amp, 15kV, Loadbreak Grounding Plug with 1/0 AWG 6 foot Ground Lead

ABB Installation Products 161GP 200 Amp, 15kV, Loadbreak Grounding Plug with 1/0 AWG 6 foot Ground Lead

UPC: 783786663620


Documents & Media
Installation InstructionsSpecification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB 161GP is a 15kV class, 200 Amp loadbreak grounding plug designed for safe and reliable circuit grounding in high-voltage electrical systems. This unit features a 6-foot (183cm) grounding cable constructed from 1/0 AWG stranded tinned copper, suitable for dissipating fault currents. The grounding plug incorporates a stainless steel mounting bracket and hot stick operable hardware, facilitating secure installation into standard parking stands. It utilizes a 5/16''-18 stainless steel eyebolt with a brass cap nut for positive engagement. The 161GP meets ANSI/IEEE Standard 386 and is rated for 10kA symmetrical momentary and fault close operations over 10 cycles. It is designed for insertion into a parking stand using an insulated hot stick, allowing for the de-energized removal of mating Elastimold 15kV class loadbreak elbows to ground the circuit. This grounding plug is suitable for applications in substations, industrial facilities, and power distribution networks where personnel safety and equipment protection are paramount. Each kit includes the 161GP grounding plug, lubricant, installation instructions, a 14 AWG grounding cable, and a protective shipping cap. Manufacturer: ABB - Installation Products. SKU: 161GP.
  • 15kV class, 200 Amp rated loadbreak interface
  • Includes 6ft (183cm) of 1/0 AWG stranded tinned copper ground lead
  • Meets ANSI/IEEE Standard 386
  • Rated for 10kA symmetrical momentary and fault close over 10 cycles
  • Features stainless steel mounting bracket and hot stick operable hardware

Specifications

Application
200 Amps, 15kV
Connection
Push-In
Connection Type
Ground Lead
Current Rating
200 A
Material
Copper
Material
EPDM-Rubber
Size
7.66 inches x 4.50 inches with 6 Foot Ground Lead
Size
1/0 AWG
Special Features
6 foot Ground Lead. Stainless Steel Mounting Bracket
Standard
ANSI/IEEE Standard 386
Type
Grounding Plug
Voltage Rating
15 kV
Voltage Rating
15kV
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
6.5000 L
Package Weight (Metric)
2.9480 kg
4 Point Junction, with one 200 Amp Bushing Well Interface, two 600 Amp Bushing interfaces and one 200 Amp Bushing Well Interface, 15kV, Left Parking Stand.

J4-6226-15-L

4 Point Junction, with one 200 Amp Bushing Well Interface, two 600 Amp Bushing interfaces and one 200 Amp Bushing Well Interface, 15kV, Left Parking Stand.
15kV, 200 Amp, DeadBreak to LoadBreak Bushing Adapter, Red. Includes hex-broach for Torque installation, Peroxide-cured insulation and jacket, Provision for ground wire connection, All copper current path. Red PBT interface shield reduces sticking and provides seating indicator.

1601DLA

15kV, 200 Amp, DeadBreak to LoadBreak Bushing Adapter, Red. Includes hex-broach for Torque installation, Peroxide-cured insulation and jacket, Provision for ground wire connection, All copper current path. Red PBT interface shield reduces sticking and provides seating indicator.
15-25 kV, 600 Amps, Sacrificial Limb, Spiking Aid Appendage. Replaceable Cap that Provides a Convenient Place to Spike the Bus to Assure that it is De-Energized. This also Assures that all Cables Connected to the Bus are De-Energized. Meets ANSI/IEEE Standard 386. 5.06 inches Long X 1.96 inch Diameter. Includes IS-1296 Instruction Sheet.

M650SL

15-25 kV, 600 Amps, Sacrificial Limb, Spiking Aid Appendage. Replaceable Cap that Provides a Convenient Place to Spike the Bus to Assure that it is De-Energized. This also Assures that all Cables Connected to the Bus are De-Energized. Meets ANSI/IEEE Standard 386. 5.06 inches Long X 1.96 inch Diameter. Includes IS-1296 Instruction Sheet.
4 Point Junction, with three 200 Amp Bushing Well Interfaces and one 600 Amp Bushing interface, 15kV, Left Parking Stand.

J4-2226-15-L

4 Point Junction, with three 200 Amp Bushing Well Interfaces and one 600 Amp Bushing interface, 15kV, Left Parking Stand.
15/25kV 600 Series Spiking Aid Appendage. 5.06 inches Long x 1.96 inch Diameter

K650SL

15/25kV 600 Series Spiking Aid Appendage. 5.06 inches Long x 1.96 inch Diameter
600 Amp, 15/25KV, Cam-Op, Size Sensitive Kit, (Cable Adapter, and Lug), Cable Insulation Diameter 1.370 inch to 1.630 inch. Aluminum Compression Lug. Conductor Size kcmil, Compressed Stranded 500 /Compacted Solid 600 /mmSquared Compact 250/300.

655CK-M0330

600 Amp, 15/25KV, Cam-Op, Size Sensitive Kit, (Cable Adapter, and Lug), Cable Insulation Diameter 1.370 inch to 1.630 inch. Aluminum Compression Lug. Conductor Size kcmil, Compressed Stranded 500 /Compacted Solid 600 /mmSquared Compact 250/300.
5 Point Junction, with five 600 Amp Bushing Interfaces, 35kV, Optional 6-1/2 inch Spacing. Left Parking Stand.

J5-66666-35-SVL

5 Point Junction, with five 600 Amp Bushing Interfaces, 35kV, Optional 6-1/2 inch Spacing. Left Parking Stand.
15/25kV 600 Amp Series Deadbreak 3-Point Junction, Rubber Junctions only.

K650J3-4

15/25kV 600 Amp Series Deadbreak 3-Point Junction, Rubber Junctions only.

Frequently Asked Questions

What items are included in the 161GP kit?

The 161GP kit includes the grounding plug, lubricant 82-08, installation instruction IS-0369, grounding cable #14 AWG 160-185-2, and a protective shipping cap 1601-APC-1.

What are the specifications of the ground lead equipped with the plug?

The 161GP is equipped with a 6 ft., 600 Volt, 1/0 Stranded tinned copper ground lead.

What secures the 161GP into a parking stand?

A 5/16 in-18 stainless steel eyebolt with a brass cap nut secures the 161GP into the mating parking stand.

Does the 161GP include a fault close mechanism?

Yes, the 161GP grounding plug contains a fully operational fault close mechanism.

What is the momentary and fault close rating?

The momentary and fault close rating for the 161GP is 10kA Symmetrical for 10 Cycles.

What is the voltage class and continuous current rating?

The 161GP is designed for a 15kV voltage class with a 200 Amp continuous current rating.

What ANSI/IEEE standard does the 161GP meet?

The 161GP meets ANSI/IEEE Standard 386, Latest Revision.

What are the key components of the 161GP?

The 161GP includes a 15kV class, 200 Amp loadbreak interface, 6 feet of 1/0 AWG grounding cable, a stainless steel mounting bracket, and hot stick operable hardware.

How is the 161GP grounding plug installed?

The 161GP Grounding Plug is inserted into a standard parking stand using an insulated hot stick and then secured in place.

What is the primary application of the 161GP?

The 161GP Grounding Plug is used to ground a circuit by allowing de-energized 15kV class loadbreak elbows to be placed on it.

How to Install the 160DRG/167DRG Insulated Cap with Ground Lead

This guide provides instructions for the safe installation of the ELASTIMOLD 160DRG and 167DRG Insulated Caps with Ground Lead on 15kV class loadbreak bushing interfaces. Ensure all apparatus are de-energized before installation by competent personnel.

Estimated time: 20m

Tools needed:

Hotstick

Supplies needed:

Insulated Cap with Ground Lead, Lubricant

  1. Connect Electrostatic Grounding Wire

    Connect the free end of the electrostatic grounding wire to the system ground. Leave enough slack for hot-stick operation of the insulated cap. CAUTION: Train the grounding wire to prevent contact with the bushing interface during operation. WARNING: If the ground lead disconnects during operation, do not attempt to reattach without first pulling the insulated cap off the bushing with the hotstick.

  2. Prepare Insulated Cap

    Remove the protective cover from the insulated cap. Lubricate the cap’s internal mating surface using only the supplied or ELASTIMOLD approved lubricant. DO NOT SUBSTITUTE, as other lubricants may be harmful to this product and its mating products. Keep the internal mating surface free from dirt and grime. Always replace the protective cover when not in use.

  3. Attach and Insert Insulated Cap

    Firmly attach a hotstick to the insulated cap's pulling eye. Insert the male contact of the insulated cap into the loadbreak bushing. Push the cap home with a fast, firm, straight motion, ensuring it is fully mated and the locking ring is seated. Detach the hotstick from the insulated cap.

  4. Remove Insulated Cap (if needed)

    To remove the cap, attach a hotstick to the pulling eye. Before pulling, rotate the insulated cap clockwise slightly while in the mated position to break surface friction. Pull the receptacle off with a fast, firm, straight motion to complete the operation. Remove the electrostatic grounding wire of the insulated cap from the system ground. Replace the protective cover on the insulated cap to keep its internal surface clean.
