UPC: 075114366526
Contact for Pricing
Overview

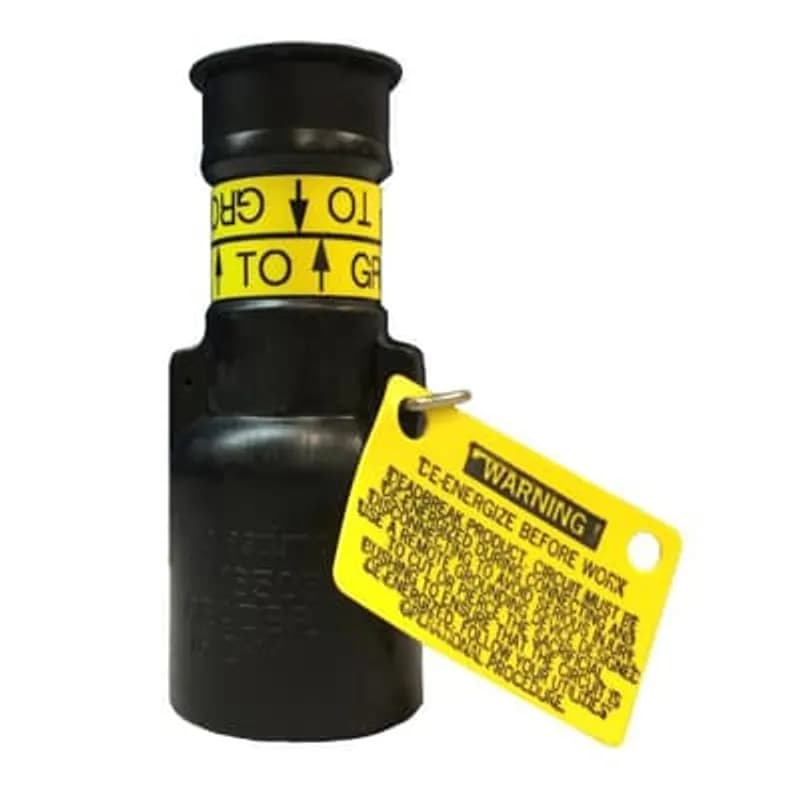

- 15-25 kV, 600 Amp rated for medium-voltage systems
- Replaceable cap for safe, verifiable bus de-energization
- Meets ANSI/IEEE Standard 386 for compatibility
- Compact 5.06" L x 1.96" Dia. design for confined spaces
- Includes IS-1296 instruction sheet for proper use
Specifications
Application | 35 |
Connection | Mechanical |
Material | EPDM-Rubber |
Size | 5.06 inches Long x 1.96 inch Diameter |
Special Features | Replaceable |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Sacrificial Limb, Spiking Aid Appendage |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
K650RTW
15/25kV 600 Series Deadbreak Reducing Tap Well. Length 5.37 inch. Width 3 inch not counting bracket. 600/200 Amps
J4-2226-15-L
4 Point Junction, with three 200 Amp Bushing Well Interfaces and one 600 Amp Bushing interface, 15kV, Left Parking Stand.
655CK-M0330
600 Amp, 15/25KV, Cam-Op, Size Sensitive Kit, (Cable Adapter, and Lug), Cable Insulation Diameter 1.370 inch to 1.630 inch. Aluminum Compression Lug. Conductor Size kcmil, Compressed Stranded 500 /Compacted Solid 600 /mmSquared Compact 250/300.
J5-66666-35-SVL
5 Point Junction, with five 600 Amp Bushing Interfaces, 35kV, Optional 6-1/2 inch Spacing. Left Parking Stand.Frequently Asked Questions
What is the purpose of the K650SL/M650SL spiking aid appendage?
It is a replaceable cap that screws onto spiking aid H, Y, or I buses. It provides a convenient point to spike the bus to ensure it and connected cables are de-energized.
What is the impulse withstand rating (BIL) for the 35kV M650SL?
For the 35kV class, the impulse withstand (BIL) is 150kV (1.2 x 50 microsecond wave).
How do I order the 35kV spiking aid appendage?
To order the 35kV spiking aid appendage, specify part number M650SL.
What is the momentary current rating for the spiking aid?
The momentary current rating for all voltage classes is 25kA Sym for 10 Cycles.
What is the corona extinction voltage for the 35kV M650SL?
For the 35kV class, the corona extinction voltage at 3pC sensitivity is 26kV AC.
What is the 15-minute DC withstand voltage for the 35kV M650SL?
For the 35kV class, the 15-minute DC withstand voltage is 103kV DC.
What is the one-minute AC withstand voltage for the 35kV M650SL?
For the 35kV class, the one-minute AC withstand voltage is 50kV AC.
What components are included in the K650SL kit?
Each kit contains one Spiking Aid Appendage (K650SL) and one Instruction Sheet (IS-1296).
Is the K650SL/M650SL spiking aid appendage replaceable?
Yes, the K650SL/M650SL spiking aid appendage is replaceable and can be easily removed and installed.
What industry standard does the K650SL/M650SL meet?
The K650SL/M650SL meets ANSI/IEEE Standard 386, Latest Revision, specifically IEEE-386-2006.
How to Install and Replace Sacrificial Caps and Grounding Rods
This guide provides step-by-step instructions for the safe installation and replacement of M/K650SL sacrificial caps and K650SLGB grounding rods, ensuring proper circuit de-energization and grounding procedures.
Estimated time: 30m
Tools needed:
Cutting or spiking tool, Hex wrench, Hot line clamp (bar or ball type)
Supplies needed:
New sacrificial cap (M/K650SL/CS1887), Lubricant, K650SLGB grounding rod (if applicable), 4/0 grounding cable, 14 AWG gage wire
- Ensure De-energization and Safety Checks
Before starting, ensure all apparatus is de-energized. Do not touch or move energized products in the work area. Inspect all parts for damage, proper rating, and compatibility with mating parts. Check package contents and components for proper fit. Failure to follow these instructions will result in damage to the product and serious or fatal injury.
- Confirm Circuit De-energization
Install a cutting or spiking tool on the existing sacrificial cap. Cut or spike the sacrificial cap on the line to visually confirm the circuit is de-energized before proceeding with removal.
- Remove Old Sacrificial Cap
After confirming de-energization, remove the ground wire from the cut or spiked cap. Rotate the cap counter-clockwise to remove it from the sacrificial male interface. Discard the old cap properly.
- Install Grounding Rod (Optional)
If installing a K650SLGB grounding rod, thread it onto the sacrificial male interface. Tighten the grounding rod using the supplied hex wrench until the wrench twists, indicating a torque of 75/110 in/lbs. If not installing a grounding rod, proceed to Step 6.
- Attach Grounding Cable (Optional)
If a grounding rod was installed, attach either a bar or ball type hot line clamp with a 4/0 grounding cable to the grounding rod. Take care not to loosen the grounding rod when tightening the clamp. Attach the opposite end of the 4/0 grounding cable to the system ground. When repairs have been completed, remove the hot line clamp and grounding rod.
- Prepare Male Interface and New Cap
Inspect the sacrificial male interface for any distortion as a result of high fault current. If the interface is distorted, the Buss Bar must be replaced. Clean the male interface thoroughly. Apply the supplied lubricant to both the male interface and the inside of the new sacrificial cap.
- Install New Sacrificial Cap
Install the new sacrificial cap by rotating it clockwise 9 to 10 turns until it stops turning. No additional torque is required. Verify that the gap between the cap and the shoulder of the splice is 1/8 inch or less around the entire cap.
- Connect Grounding Wire to New Cap
Attach a 14 AWG gage wire through the grounding eye of the new cap and tighten it by twisting. Connect the other end of this wire directly to the system ground.
