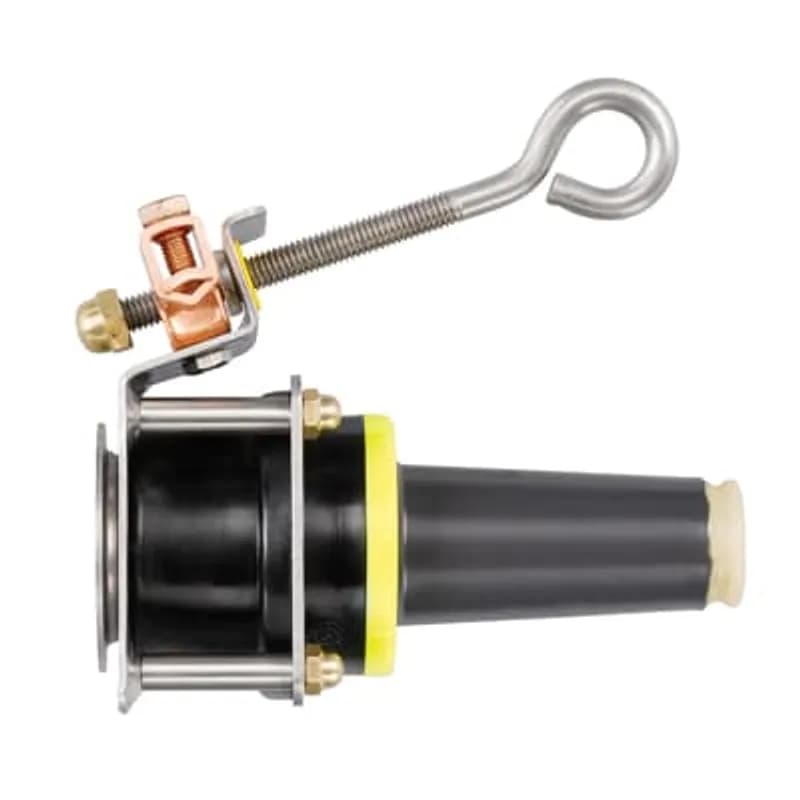

ABB Installation Products 164BSOP 200 Amp, 15kV, Double parking stand bushing
UPC: 783786355624
Documents & Media
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 200 Amp continuous current rating with 10kA symmetrical momentary/fault close capability
- 15kV class voltage rating (8.3kV phase-to-ground, 14.4kV phase-to-phase)
- Double parking stand mount with adjustable bracket for precise positioning
- Fully shielded, submersible design for energized operation in loadbreak systems
- Compatible with 15kV class elbow connectors, test rods, grounding elbows, and insulated caps
Specifications
Application | 15kV, 200 Amps |
Connection | Push-In |
Material | EPDM-Rubber |
Mounting | Parking Stand |
Type | Bushing |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
J4-6226-15
4 Point Junction, with one 200 Amp Bushing Well Interface, two 600 Amp Bushing interfaces and one 200 Amp Bushing Well Interface, 15kV, No Tilt Mounting.
K650-J2-U
15/25kV 600 Series Deadbreak 2-Point Junction, Rubber Junction with stainless steel mounting plate, back plate and adjustable mounting bracket.
K650-J4-U
15/25kV 600 Series Deadbreak 4-Point Junction, Rubber Junction with stainless steel mounting plate, back plate and adjustable mounting bracket.
K650-J3-5
15/25kV 600 Series Deadbreak 3-Point Junction, Rubber Junction, Stainless Steel U-Straps and Back Plate.K650-J4-5
15/25kV 600 Series Deadbreak 4-Point Junction, Rubber Junction, Stainless Steel U-Straps and Back Plate.Frequently Asked Questions
What is the continuous current rating of the 164BSOP?
The 164BSOP has a continuous current rating of 200 Amps.
Can the 164BSOP be used in submersible applications?
Yes, the 164BSOP is a fully submersible insulated connector designed for energized operation.
What voltage class is the 164BSOP rated for?
The 164BSOP is rated for 15kV class systems with a maximum phase-to-ground operating voltage of 8.3kV and phase-to-phase voltage of 14.4kV.
Does the 164BSOP meet any industry standards?
Yes, the 164BSOP meets ANSI/IEEE Standard 386, Latest Revision.
Is the 164BSOP compatible with Elastimold® connectors?
Yes, the 164BSOP is designed to mate with the 15kV Family of Elastimold® elbow connectors.
What is the impulse withstand rating of the 164BSOP?
The 164BSOP has a 95kV BIL impulse withstand rating (1.2 x 50 microsecond wave).
What accessories are compatible with the 164BSOP?
The 164BSOP works with the 370TR test rod, 160GLR grounding elbow, and 160DR insulated cap for testing, grounding, and isolation.
What is the corona extinction voltage of the 164BSOP?
The 164BSOP has a corona extinction voltage of 11kV AC at 3pC sensitivity.
How to Install and Remove the 160DRG/167DRG Insulated Cap
This guide provides step-by-step instructions for the safe installation and removal of the ELASTIMOLD 160DRG and 167DRG Insulated Caps with Ground Lead on 15kV class loadbreak bushing interfaces.
Estimated time: 15m
Tools needed:
Hotstick, Wire strippers
Supplies needed:
160DRG or 167DRG Insulated Cap with Ground Lead, Lubricant (supplied or ELASTIMOLD approved)
- De-energize Apparatus and Inspect Components
Ensure all apparatus is de-energized before beginning installation. Inspect the insulated cap, ground lead, and mating bushing for any damage, and verify compatibility and proper rating. Confirm all package contents are complete.
- Connect Electrostatic Grounding Wire
Connect the free end of the electrostatic grounding wire to the system ground. Leave sufficient slack to allow for hot-stick operation of the insulated cap. CAUTION: Train the grounding wire to prevent it from contacting the bushing interface during operation.
- Prepare Insulated Cap for Installation
Remove the protective cover from the insulated cap. Lubricate the cap’s internal mating surface using only the supplied lubricant or an ELASTIMOLD approved lubricant. Do not substitute. Ensure the internal mating surface remains free from dirt and grime.
- Install Insulated Cap onto Bushing
Firmly attach an eight-foot long, fully insulated hotstick to the insulated cap's pulling eye. Insert the male contact of the insulated cap into the loadbreak bushing. Push the cap home with a fast, firm, straight motion, ensuring it is fully mated and the locking ring is securely seated. Detach the hotstick from the insulated cap.
- Remove Insulated Cap (Optional)
To remove the insulated cap, first attach an eight-foot long, fully insulated hotstick to the pulling eye. While the cap is still mated, rotate it slightly clockwise to break any surface friction. Pull the cap off the bushing with a fast, firm, straight motion. Remove the electrostatic grounding wire from the system ground. Replace the protective cover on the insulated cap to keep its internal surface clean.
