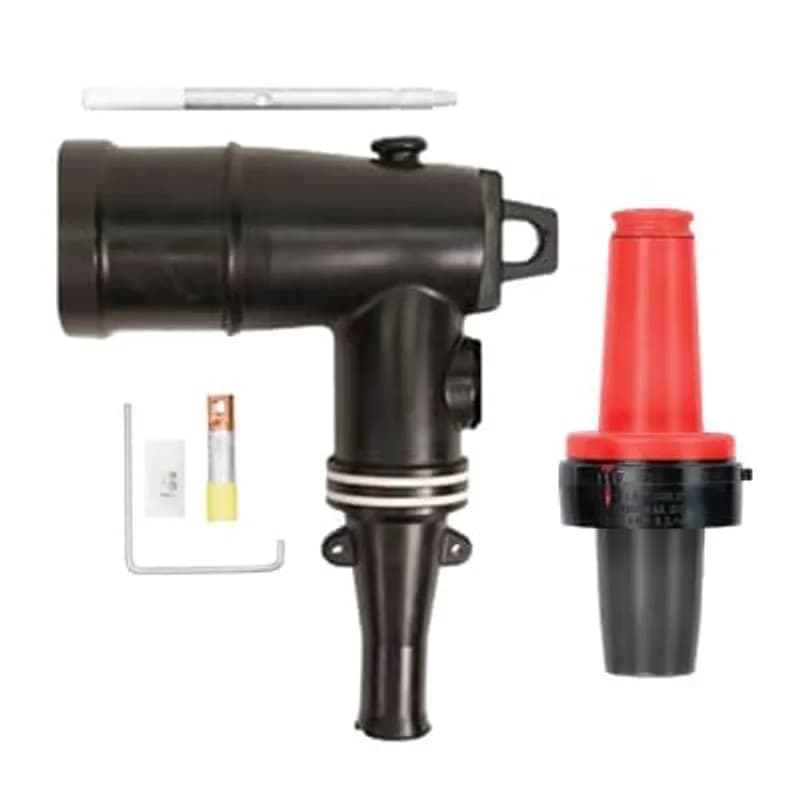

ABB - Installation Products 161A4-C5240 - 15kv, 200 Amps, Elbow-Bushing Insert Kit. Cable Insulation Diameter .805-1.060 inches. Bi-Metal Compression Lug. Conductor Sizse 240 - 1/0 Stranded/Compressed or 2/0 Solid/Compact or 53.49 mmsq.

ABB Installation Products 161A4-C5240 15kv, 200 Amps, Elbow-Bushing Insert Kit. Cable Insulation Diameter .805-1.060 inches.…

UPC: 075114340908


Documents & Media
Installation InstructionsSpecification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB 161A4-C5240 is a 15kV, 200 Amp Elbow-Bushing Insert Kit designed for reliable medium-voltage cable terminations. This kit is engineered to accommodate cable insulation diameters ranging from 0.805 to 1.060 inches, ensuring compatibility with a variety of medium-voltage cable constructions. The core of this kit is a bi-metal compression lug, providing a robust connection for conductors. Key components included in the kit are: - Elbow connector housing (161BLR-W) - Bi-metal compression lug (02500240) - Probe (162LRF) - Probe wrench (271-94) - Bushing Insert (1601A4) - Protective shipping cap (1601-APC-1) - Lubricant tube (82-08) - Crimp chart (CC-0020) - Installation Instruction (IS-1378) The bi-metal construction of the lug ensures excellent conductivity and mechanical integrity, crucial for high-current applications. The kit is suitable for use in switchgear, transformers, and other medium-voltage equipment requiring loadbreak elbow connectors. The 15kV rating aligns with industry standards for medium-voltage power distribution. The SKU 161A4-C5240 is part of ABB Installation Products' comprehensive range of medium-voltage accessories.
  • 15kV rated, 200 Amp capacity for medium-voltage applications
  • Accommodates cable insulation diameters from 0.805 to 1.060 inches
  • Bi-metal compression lug for reliable conductor termination
  • Supports solid/compact conductors: 2/0 AWG (53.49 mm²)

Specifications

Amperage Rating
200 A
Application
15kV 200 Amp
Color
Black
Conductor Range
1/0 to 2/0 AWG
Connection
Compression
Connection Type
Compression Lug
Connection Type
Elbow-Bushing Insert
Current Rating
200 A
Environmental Conditions
Fully Submersible
Insulation
True
Length
2.9 in
Length
73.66 mm
Material
Bi-Metal (Aluminum/Copper)
Material
Housing - EPDM-Rubber
Material
Bi-Metal Compression Lug
Series
161A4
Size
Cable Insulation Diameter 0.805-1.060 inches
Size
0.805-1.060 inches (cable insulation diameter)
Special Features
Provision for Hot Stick Operation, Provision for Ground Wire Connection
Standard
ANSI/IEEE Standard 386
Temperature Rating, Maximum
149 F
Temperature Rating, Maximum
65 C
Temperature Rating, Minimum
-40 F
Temperature Rating, Minimum
-40 C
Type
Loadbreak Elbow and Bushing
Voltage Rating
15 kV
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
15kV, 200 Amp, Loadbreak Elbow-Bushing Insert, Cable Insulation Diameter 0.635 inch to 0.905 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded 1/0 /Solid 2/0

162A4-B5240

15kV, 200 Amp, Loadbreak Elbow-Bushing Insert, Cable Insulation Diameter 0.635 inch to 0.905 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded 1/0 /Solid 2/0
600 Amp, 15kV, Combo T Elbow Reducing Tap Plug with Stud, Cable Adapter, Lug, No Test Point, Aluminum, Cable Insulation Diameter 1.515 inch to 1.780 inch. With Shrink-Fit Jacket Seal Kit. Aluminum Compression Lug, 700/750 kcmil Stranded/Compressed or 900 kcmil Solid/Compact.

655CETP-N0380-S

600 Amp, 15kV, Combo T Elbow Reducing Tap Plug with Stud, Cable Adapter, Lug, No Test Point, Aluminum, Cable Insulation Diameter 1.515 inch to 1.780 inch. With Shrink-Fit Jacket Seal Kit. Aluminum Compression Lug, 700/750 kcmil Stranded/Compressed or 900 kcmil Solid/Compact.
15-25kV 600 Series Deadbreak Separable Straight Joint Package (2-Way) with Test Point. Cable Insulation Diameter 0.850 inch to 1.050 inch. Aluminum Compression Lug. Conductor Size Compressed/Stranded 1/0 or Compacted/Solid 2/0.

K656I-H0240

15-25kV 600 Series Deadbreak Separable Straight Joint Package (2-Way) with Test Point. Cable Insulation Diameter 0.850 inch to 1.050 inch. Aluminum Compression Lug. Conductor Size Compressed/Stranded 1/0 or Compacted/Solid 2/0.
35kV 600 Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Aluminum Compression Lug. Cable Insulation Diameter 1.180 inch to 1.465 inch. Conductor Size AWG or kcmil, Compressed Stranded 350 /Compacted Solid 400 /mmSquared Compact 185. Cold Shrinkable Seal with Copper Braid and Constant Force Spring Included.

756LR-L0300-SG3

35kV 600 Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Aluminum Compression Lug. Cable Insulation Diameter 1.180 inch to 1.465 inch. Conductor Size AWG or kcmil, Compressed Stranded 350 /Compacted Solid 400 /mmSquared Compact 185. Cold Shrinkable Seal with Copper Braid and Constant Force Spring Included.
15/25kV 200 Amp, Deadbreak Straight Receptacle, Bails are required, but not included, order separately. Cable Insulation Diameter 0.635 inch to 0.905 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded #2/Solid #1/mmSquared 33.62. 200ECS-G3 Jacket Seal and Grounding Kit Included. Comes with Straight Receptacle Housing, Receptacle Pin Connector, Lubricant, Installation Instructions and Crimp Chart

K151SR-B0220-SG3

15/25kV 200 Amp, Deadbreak Straight Receptacle, Bails are required, but not included, order separately. Cable Insulation Diameter 0.635 inch to 0.905 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded #2/Solid #1/mmSquared 33.62. 200ECS-G3 Jacket Seal and Grounding Kit Included. Comes with Straight Receptacle Housing, Receptacle Pin Connector, Lubricant, Installation Instructions and Crimp Chart
200 Amp, 35kV, Loadbreak Elbow Connector with Test Point, Cable Insulation Diameter 1.090 inch to 1.310 inch. Conductor Size AWG Compressed/Stranded 3/0, Solid/Compact 4/0 /mmSquared 85.01. 200ECS-G3 Jacket Seal and Grounding Kit Included. Comes with Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Lubricant, Installation Instructions, Crimp Chart and V.D. Cap-Peroxide.

376LR-K5260-SG3

200 Amp, 35kV, Loadbreak Elbow Connector with Test Point, Cable Insulation Diameter 1.090 inch to 1.310 inch. Conductor Size AWG Compressed/Stranded 3/0, Solid/Compact 4/0 /mmSquared 85.01. 200ECS-G3 Jacket Seal and Grounding Kit Included. Comes with Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Lubricant, Installation Instructions, Crimp Chart and V.D. Cap-Peroxide.
Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 15.5kV, Fuse Test Port - Two Capacitive Test Ports, Small Housing, Cable Insulation Diameter 0.635 inch - 0.905 inch, Bi-Metal Conductor size 2 AWG Stranded Compressed, 1 AWG Solid Compact. No Sealing Kit.

274FLR1-B5220

Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 15.5kV, Fuse Test Port - Two Capacitive Test Ports, Small Housing, Cable Insulation Diameter 0.635 inch - 0.905 inch, Bi-Metal Conductor size 2 AWG Stranded Compressed, 1 AWG Solid Compact. No Sealing Kit.
600 Amp, 25kV, Deadbreak, Stick-Op Connector Kit with Test Point, With Insulated Cap. Cable Insulation Diameter 1.550 inch to 1.780 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 1000.

K656LRTP-N0410-DRG

600 Amp, 25kV, Deadbreak, Stick-Op Connector Kit with Test Point, With Insulated Cap. Cable Insulation Diameter 1.550 inch to 1.780 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 1000.

Frequently Asked Questions

What is the part number for the included bushing?

The bushing insert included in the kit is part number 1601A4.

What is the voltage rating for the 161A4 connector?

The 161A4 connector is rated for 15kV voltage class. It has an 8.3kV maximum phase-to-ground operating voltage and 14.4kV maximum phase-to-phase.

What is the continuous current rating of the 161A4?

The 161A4 elbow connector has a continuous and loadbreak current rating of 200 Amps. It also has a 10kA Sym momentary and fault close rating for 10 cycles.

What cable insulation diameters does the 161A4 support?

The 161A4 allows connection of cables with insulation diameters from 0.575 inches (14.6mm) to 1.220 inches (31.0mm).

Can the 161A4 connector be operated energized?

Yes, the 161A4 includes provisions for energized operation using standard hotstick tools. This allows loadmake/loadbreak operation and a visible disconnect.

Which standards does the 161A4 connector meet?

The 161A4 elbow connector meets ANSI/IEEE Standard 386, Latest Revision.

What is included in the 161A4-W5X kit?

The kit contains the elbow connector housing, bi-metal compression lug, probe, probe wrench, bushing insert, protective shipping cap, lubricant, crimp chart, and installation instructions.

What conductors are compatible with the compression lugs?

Bi-metal compression lugs are suitable for both copper or aluminum conductors. Copper compression lugs are suitable for copper conductors only.

Is a sealing and grounding kit recommended?

Yes, for safety purposes, a sealing and grounding kit with the loadbreak elbow is highly recommended.

What sealing kits are available for cables?

For Jacketed Concentric Neutral Cables, use 200ECS or add suffix "-S". For Copper Tape Shield Cables, use 200ECS or add suffix "-S-G3".

How to Install Elastimold 161LR/162LR Loadbreak Elbow Connectors

This guide provides step-by-step instructions for the safe installation and initial setup of Elastimold 161LR and 162LR Loadbreak Elbow Connectors, designed for terminating UD cables and connecting to 15kV class loadbreak bushings.

Estimated time: 1h 30m

Tools needed:

Utility knife or cable cutting tool, Wire strippers, Wire brush, Crimping tool, Probe wrench, Hotstick tool

Supplies needed:

Elbow Connector Housing (included in kit), Compression Lug (included in kit), Probe (included in kit), Lubricant (Do Not Substitute) (included in kit), Copper wire (No. 14 AWG / 2.5mm) or equivalent, Appropriate connector for neutral wires, Vinyl tape (if applicable), Conductive copper tape (if applicable), Cold shrink tube (if using sealing kit)

  1. De-energize Apparatus and Inspect Components

    DANGER: Ensure all apparatus is de-energized during installation or removal of parts. Do not touch or move energized products. This product must be installed by competent personnel trained in high voltage safety practices. Inspect all package contents and components for damage, proper fit with cable and/or mating products, and compatibility. Check the probe threads by threading it into the compression lug; if resistance is encountered, check for damage and replace the component. Read all instructions before proceeding and maintain cleanliness.

  2. Prepare Cable and Outer Jacket

    Train the cable to ensure adequate slack for ease of operation. Prepare concentric neutral wires or grounding braid wire to facilitate connection to the tank ground, ensuring an extra length of 24-36 inches (610-914mm) beyond the bushing centerline, or connect using a jumper/braid. Cut the excess cable squarely at the bushing centerline. Based on your cable type (non-jacketed, jacketed concentric neutral, jacketed with drain wires, or jacketed copper tape shield), remove the specified length of outer jacket and/or copper tape shield. For drain wires, unwrap, bind, fold back, and wrap with vinyl tape. For copper tape shield, remove 7-1/8 inches (180mm) and wrap conductive copper tape over the end to hold it in place. If using a 200ECS sealing kit, slide the cold shrink tube onto the cable loose end first.

  3. Prepare Conductor and Insulation

    Remove the shield and insulation 2-1/8 inches (55mm) from the cable end, cutting squarely and taking care not to nick the conductor. Wire brush bare aluminum conductors immediately and install the compression lug, rotating to spread inhibitor. Position the compression lug so its contact threaded hole aligns with the bushing bore. Crimp the lug according to the crimp chart, starting at the crimp line mark and rotating 180 degrees for each successive crimp. Carefully wipe excess inhibitor from the lug and cable. Remove the insulation shield 6-7/8 inches (175mm) from the cable end. Bevel the insulation end a maximum of 1/8 inch (5mm). Thoroughly clean the insulation to remove all traces of dirt or excess inhibitor.

  4. Assemble Elbow and Connect Grounding

    Lubricate the cable insulation and the inside of the elbow housing with the supplied lubricant; DO NOT SUBSTITUTE. Slide the elbow connector onto the cable using a back-and-forth twisting motion, then wipe off all excess lubricant. Align the elbow with the compression lug’s threaded hole. Thread the probe into the lug by hand, ensuring it turns freely for approximately four turns before becoming snug. Tighten the probe with the supplied wrench until the wrench bends. Insert one end of a separate copper wire (No. 14 AWG / 2.5mm) or equivalent through the grounding eye on the elbow and twist tightly, taking care not to damage the eye. Twist all neutral wires and connect them to ground using an appropriate connector, providing adequate slack for elbow operation. If using a cold shrink grounding kit, refer to its instructions.

  5. Connect Elbow to Bushing Plug (De-energized)

    CONFIRM THAT THE TRANSFORMER AND ELBOW ARE DE-ENERGIZED before proceeding. Lubricate the receptacle portion of the elbow connector and the mating bushing with the supplied lubricant. Operate the connection using a full insulated hotstick type tool; DO NOT OPERATE BY HAND. Securely fasten the hotstick to the loadbreak connector pulling eye. Insert the probe tip approximately 2 inches (50mm) into the bushing, then immediately push the elbow home with a fast, firm, straight motion, using sufficient force to engage the internal lock on the elbow connector and bushing interface.
