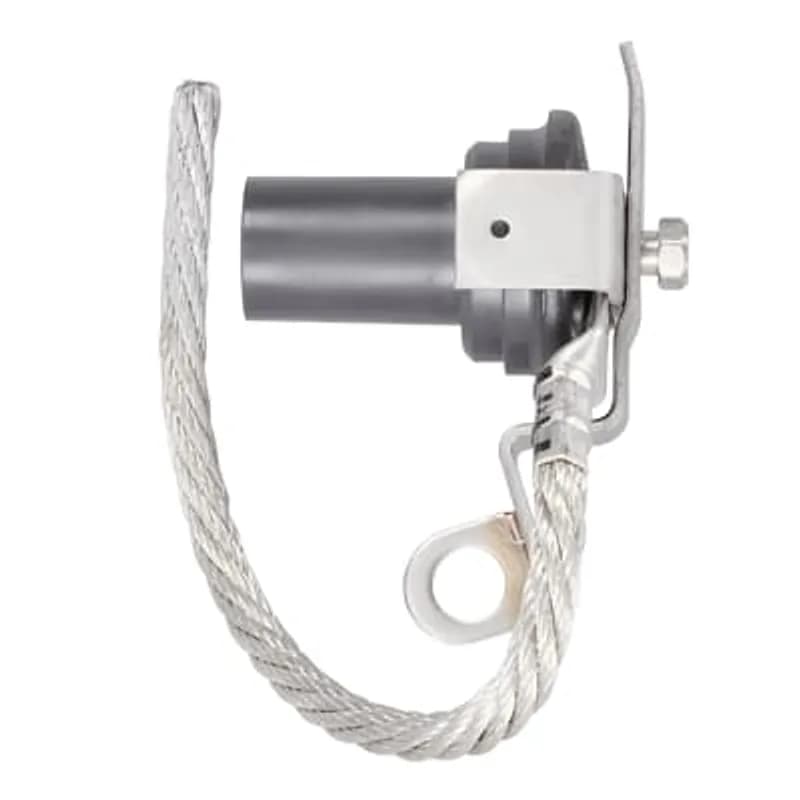

ABB - Installation Products 151-GP - 15/25kV 200 Amp, Deadbreak Grounding Plug, Bails are required, but not included, order separately.
More images

ABB Installation Products 151-GP 15/25kV 200 Amp, Deadbreak Grounding Plug, Bails are required, but not included, order…

UPC: 783786627677


Documents & Media
Installation InstructionsSpecification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

It delivers a 200 Amp continuous current rating and a 10kA symmetrical momentary rating for 10 cycles across both voltage classes. The plug features fully shielded and fully submersible construction, ensuring reliable performance in harsh and demanding environments. Its 100% peroxide-cured EPDM insulation provides superior dielectric strength and long-term stability, minimizing the risk of electrical failure. Designed specifically for grounding Elastimold® 156LR elbow connectors, the 151-GP includes mounting provisions for a parking stand to secure the elbow during operation. Each kit (K151GP) contains one grounding plug, lubricant (82-08), installation instructions (IS-0003), and a protective shipping cap (180-PPC). Grounding bails are required for proper operation and must be ordered separately. Typical applications include grounding switchgear, transformers, and cable systems in substations, industrial facilities, and other locations where de-energized operation is necessary to ensure safety during maintenance or testing.
  • 15/25kV, 200 Amp Deadbreak Rated
  • 10kA Sym – 10 Cycles Momentary Rating
  • Fully shielded and fully submersible
  • 100% Peroxide cured insulation
  • Provides grounding connection for Elastimold® 156LR elbow connectors

Specifications

Application
Used to ground Elastimold 156LR Elbow Connectors
Connection
Push-In
Connection Type
Deadbreak
Current Rating
200 A
Material
EPDM-Rubber
Material
Fully Shielded, Fully Submersible Insulated
Series
151
Size
3.80 inches wide
Special Features
Deadbreak. Comes with Grounding Plug Lubricant, Protective Shipping Cap and Installation Instructions
Standard
ANSI/IEEE 386
Type
Grounding Plug
Voltage Rating
15/25 kV
Voltage Rating
15/25kV
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.6800 L
Package Weight (Metric)
0.7620 kg
6 Point Junction, with one 600 Amp Bushing Interfaces, four 200 Amp Bushing Well Interface and one 600 Amp Bushing Interface, 25kV, No Tilt Mounting.

J6-622226-25

6 Point Junction, with one 600 Amp Bushing Interfaces, four 200 Amp Bushing Well Interface and one 600 Amp Bushing Interface, 25kV, No Tilt Mounting.
15KV, 200 Amp, Feed Thru with Stainless Steel Bracket

164FT-SS

15KV, 200 Amp, Feed Thru with Stainless Steel Bracket
200 Amp, 15kV, Loadbreak Grounding Plug with 1/0 AWG 6 foot Ground Lead

161GP

200 Amp, 15kV, Loadbreak Grounding Plug with 1/0 AWG 6 foot Ground Lead
15kV, 200 Amp, DeadBreak to LoadBreak Bushing Adapter, Red. Includes hex-broach for Torque installation, Peroxide-cured insulation and jacket, Provision for ground wire connection, All copper current path. Red PBT interface shield reduces sticking and provides seating indicator.

1601DLA

15kV, 200 Amp, DeadBreak to LoadBreak Bushing Adapter, Red. Includes hex-broach for Torque installation, Peroxide-cured insulation and jacket, Provision for ground wire connection, All copper current path. Red PBT interface shield reduces sticking and provides seating indicator.
15-25 kV, 600 Amps, Sacrificial Limb, Spiking Aid Appendage. Replaceable Cap that Provides a Convenient Place to Spike the Bus to Assure that it is De-Energized. This also Assures that all Cables Connected to the Bus are De-Energized. Meets ANSI/IEEE Standard 386. 5.06 inches Long X 1.96 inch Diameter. Includes IS-1296 Instruction Sheet.

M650SL

15-25 kV, 600 Amps, Sacrificial Limb, Spiking Aid Appendage. Replaceable Cap that Provides a Convenient Place to Spike the Bus to Assure that it is De-Energized. This also Assures that all Cables Connected to the Bus are De-Energized. Meets ANSI/IEEE Standard 386. 5.06 inches Long X 1.96 inch Diameter. Includes IS-1296 Instruction Sheet.
4 Point Junction, with three 200 Amp Bushing Well Interfaces and one 600 Amp Bushing interface, 15kV, Left Parking Stand.

J4-2226-15-L

4 Point Junction, with three 200 Amp Bushing Well Interfaces and one 600 Amp Bushing interface, 15kV, Left Parking Stand.
15/25kV 600 Series Spiking Aid Appendage. 5.06 inches Long x 1.96 inch Diameter

K650SL

15/25kV 600 Series Spiking Aid Appendage. 5.06 inches Long x 1.96 inch Diameter
600 Amp, 15/25KV, Cam-Op, Size Sensitive Kit, (Cable Adapter, and Lug), Cable Insulation Diameter 1.370 inch to 1.630 inch. Aluminum Compression Lug. Conductor Size kcmil, Compressed Stranded 500 /Compacted Solid 600 /mmSquared Compact 250/300.

655CK-M0330

600 Amp, 15/25KV, Cam-Op, Size Sensitive Kit, (Cable Adapter, and Lug), Cable Insulation Diameter 1.370 inch to 1.630 inch. Aluminum Compression Lug. Conductor Size kcmil, Compressed Stranded 500 /Compacted Solid 600 /mmSquared Compact 250/300.

Frequently Asked Questions

What is the primary application of the 151GP grounding plug?

The 151GP grounding plug is a fully shielded, fully submersible, separable insulating plug designed for de-energized operation.

Are bails included with the 151GP grounding plug kit?

No, bails are required for the 151GP but are not included in the kit and must be ordered separately.

What items are included in the 151GP kit?

Each kit contains one K151GP Grounding Plug, two 82-08 Lubricants, one IS-0003 Installation Instruction, and one 180-PPC Protective shipping cap.

What type of insulation does the 151GP grounding plug use?

The 151GP grounding plug features 100% Peroxide cured insulation.

What is the momentary current rating for the 151GP?

The momentary current rating for the 151GP is 10kA Sym for 10 Cycles in both 15kV and 25kV voltage classes.

What is the continuous current rating for the 151GP?

The 151GP has a continuous current rating of 200 Amp for both 15kV and 25kV voltage classes.

What industry standards does the 151GP grounding plug meet?

The 151GP grounding plug meets ANSI/IEEE Standard 386, Latest Revision.

What type of connectors does the 151GP ground?

The 151GP grounding plug is used to ground Elastimold® 156LR elbow connectors.

What voltage class systems is the 151GP suitable for?

The 151GP grounding plug is suitable for use on 15 and 25kV class systems.

Are bails included with the 151GP grounding plug kit?

No, bails are required for the 151GP but are not included in the kit and must be ordered separately.

How to Install the 151GP Deadbreak Grounding Plug

This guide provides step-by-step instructions for safely installing and securing the 151GP Deadbreak Grounding Plug with a deadbreak elbow connector. It is crucial that all associated apparatus are de-energized before beginning installation.

Estimated time: 30m

Tools needed:

Hotstick, Suitable sensing device for capacitive test points

Supplies needed:

151GP Deadbreak Grounding Plug, Stainless steel mounting hardware, Hold-down Bail Assembly, Elastimold approved lubricant, Silicone grease

  1. Prepare the Grounding Plug

    Connect the flexible lead of the grounding plug to system ground, ensuring enough slack to operate with a hotstick. Remove the protective shipping cap from the grounding plug. Clean and lubricate the mating interface of the grounding plug using only the supplied or ELASTIMOLD approved lubricant. Do not substitute other lubricants.

  2. Prepare for Elbow Connection

    Attach a hotstick to the eye of the grounding plug carriage assembly. Slide the carriage assembly into the parking stand. Push the bail out of the way so it will not interfere with the placement of the deadbreak elbow connector.

  3. Perform Voltage Test on Deadbreak Elbow

    Remove the test point cap from the deadbreak elbow connector using a hotstick, peeling it off at an angle. WARNING: The voltage test point is a capacitance device; do not use conventional voltage measuring equipment. Use a suitable sensing device, made for use with separable connectors manufactured with capacitive test points, to determine if the cable is energized. Treat the elbow as energized until the 'no voltage' test point indication is confirmed by other means. After testing, clean and lubricate the inside surface of the cap with silicone grease and replace it on the test point.

  4. Connect Deadbreak Elbow to Grounding Plug

    WARNING: If the voltage test indicates the connector is energized, DO NOT remove it. Follow the applicable instructions to make a voltage test before removing the deadbreak elbow connector from the apparatus bushing. Remove the elbow connector from the apparatus bushing and place it onto the grounding plug.

  5. Secure the Deadbreak Elbow

    The bail must be used to secure the deadbreak elbow. Position the bail eyebolt directly over the bail locater on the elbow. Tighten down on the bail locater by turning the eyebolt with the hotstick in a clockwise direction.
