UPC: 786210307718
Documents & Media
Contact for Pricing
Overview

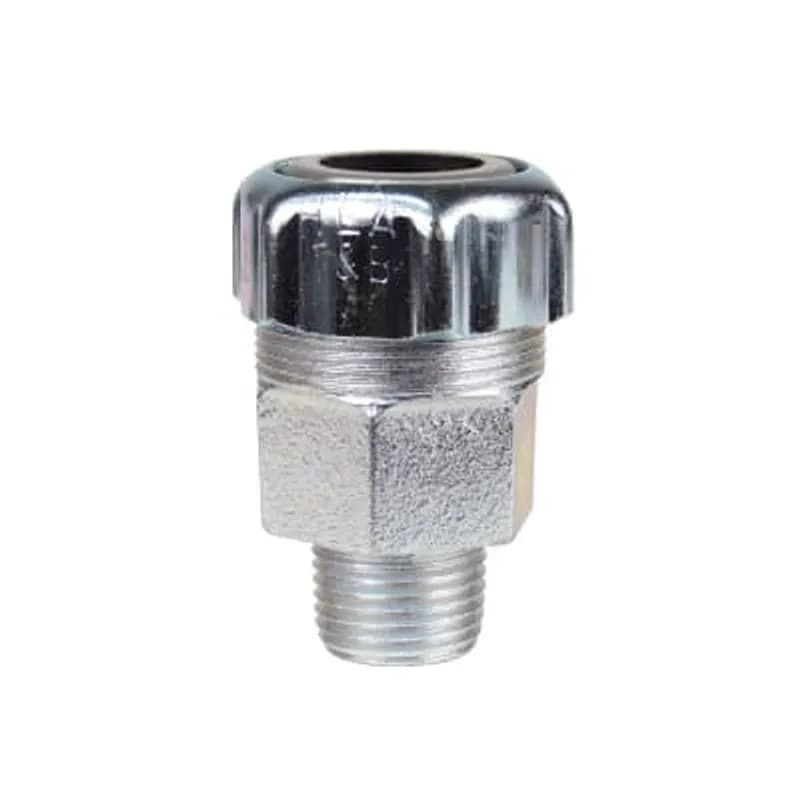

- Watertight malleable iron fitting for secure cable entry
- 2-inch NPT hub thread for standard conduit compatibility
- Accommodates cable jacket OD 2.156 to 2.36 inches
- Prevents moisture ingress in wet or hazardous environments
- Suitable for outdoor, underground, and marine applications
Specifications
Color | Silver |
Material | Malleable Iron |
Size | 2 Inches |
Special Features | When using fittings on single conductor cable, aluminum fittings and aluminum locknuts must be used |
Standard | UL E38947, CSA 23086, CSA 4484 |
Type | Watertight Fittings |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 3.8600 L |
Package Weight (Metric) | 1.7510 kg |
10471
Watertight fitting made of malleable iron with a hub thread size of 1-1/4 inches Cable Jacket outside diameter is 1.625 to 1.875 inches.
95138

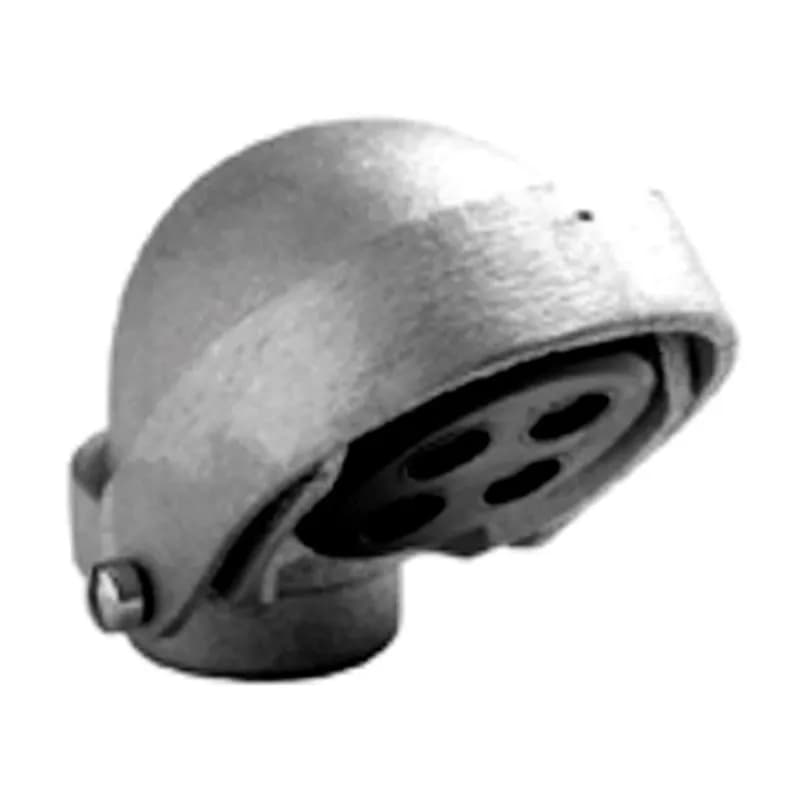

Clamp-on service entrance cap for 4-inch EMT and rigid/IMC conduit. It is made of aluminum with a silver color and no additional finish. The enclosure is listed as Weatherhead.10476
Watertight fitting made of malleable iron with a hub thread size of 2 inches Cable Jacket outside diameter is 2.535 to 2.75 inches.10477
Watertight fitting made of malleable iron with a hub thread size of 2-1/2 inches Cable Jacket outside diameter is 2.735 to 2.985 inches.10478
Watertight fitting made of malleable iron with a hub thread size of 2-1/2 inches Cable Jacket outside diameter is 2.97 to 3.22 inches.10550
Watertight fitting made of malleable iron with a hub thread size of 1-1/4 inches Cable Jacket outside diameter is 1.375 to 1.625 inches Throat diameter 1.400 inches.
10602-TB
90 degres watertight fitting made of malleable iron with a protective grounding sleeve for jacketed metal-clad cable. 1/2 inch hub thread size. Neoprene bushing 0.750-0.885 inch.How to Install a Jacketed Metal Clad Cable Connector (Sabre Tooth Grounding Sleeve Type)
This guide provides step-by-step instructions for installing Thomas & Betts jacketed metal clad cable connectors, specifically those utilizing the Sabre Tooth grounding sleeve for Teck or jacketed MC type cables.
Estimated time: 20m
Tools needed:
Cable cutter, Wire strippers, Torque wrench
Supplies needed:
Jacketed Metal Clad Cable Connector (e.g., 10474), Teck or jacketed MC type cable
- De-energize Circuits
Before starting installation or maintenance, verify that all circuits are de-energized to prevent electrical shock.
- Prepare the Cable
Ring-cut the cable squarely and remove the outer jacket and armor to the desired length. Ensure the outer jacket is flush with the end of the armor. CAUTION: Do not nick or cut the conductor insulation.
- Pre-assemble Connector Components
Slide the gland nut, retainer ring, and neoprene bushing over the prepared cable in that specific order.
- Install Sabre Tooth Grounding Sleeve
Insert the point of the Sabre Tooth grounding sleeve fully over the cable armor and beneath the outer jacket.
- Seat Neoprene Bushing
Slide the neoprene bushing forward to seat it properly in the bevel on the grounding sleeve.
- Attach Connector Body and Tighten Gland Nut
Place the main connector body over the grounding sleeve. Then, thread the gland nut onto the connector body and tighten it to the appropriate torque for your hub size. Refer to the provided torque table (e.g., 200 in.-lbs for 1/2 inch hub, up to 1600 in.-lbs for 2-4 inch hubs).
