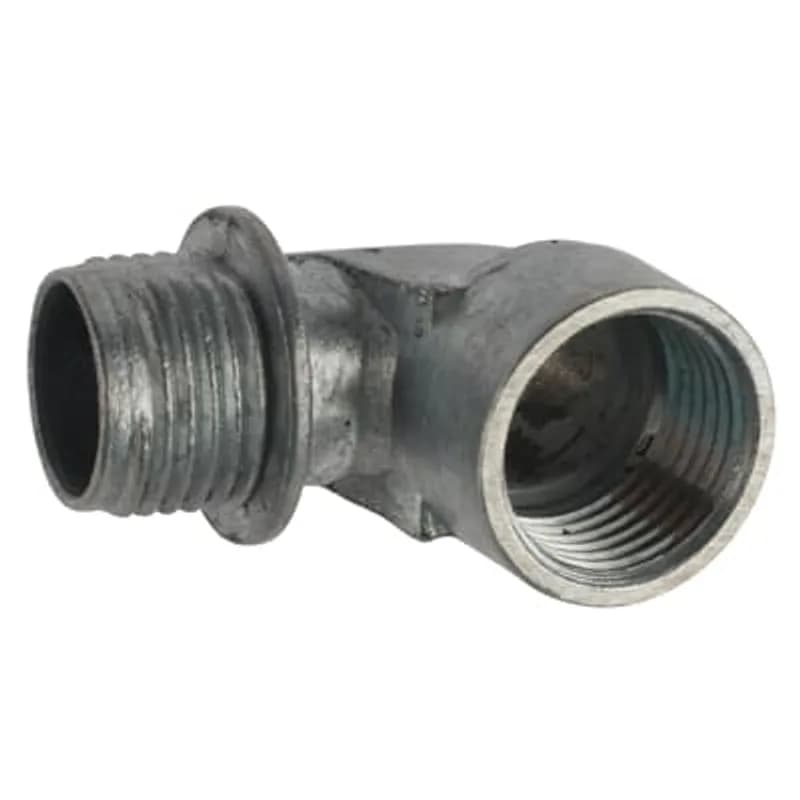

ABB - Installation Products L 90-1LN - 1/2 Inch. 90 degree die cast zinc short radius elbow.

ABB Installation Products L 90-1LN 1/2 Inch. 90 degree die cast zinc short radius elbow.

UPC: 023386901051


Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 50

Multiplier: 50

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB L 90-1LN is a 1/2 inch, 90-degree short radius elbow designed for conduit fittings. Manufactured by ABB - Installation Products, this elbow is constructed from die-cast zinc, providing a durable and corrosion-resistant solution for directing conduit runs at a sharp angle. Its short radius design is ideal for applications where space is limited, allowing for efficient cable and wire management in tight installations. The die-cast zinc construction ensures robustness and longevity, making it suitable for various industrial and commercial environments. This component facilitates smooth transitions in conduit systems, protecting electrical wiring from physical damage and environmental factors. The SKU L 90-1LN clearly identifies this specific fitting within the ABB catalog. Key specifications include: * **Size:** 1/2 Inch * **Angle:** 90 Degrees * **Radius:** Short Radius * **Material:** Die Cast Zinc * **Manufacturer:** ABB - Installation Products * **SKU:** L 90-1LN
  • 1/2 Inch conduit size
  • 90-degree bend angle
  • Short radius design for space efficiency
  • Constructed from durable die-cast zinc
  • ABB - Installation Products manufacturer

Specifications

Application
To join rigid or IMC conduit at right angles where lack of room prevents using a standard sweep elbow
Material
Zinc Die Cast
Size
2-Jan
Special Features
To terminate a run of rigid or IMC conduit at box
Standard
UL E23018
Type
Short Radius Elbows
Package Dimensions (L x W x H)
7.4 IN x 5.3 IN x 3.6 IN
Package Dimensions (L x W x H)
18.796 cm x 13.462 cm x 9.144 cm
Package Weight (Imperial)
0.1100 L
Package Weight (Metric)
0.0500 kg
PVC Coated Zinc Grounded Hub with Thermoplastic Insulated Throat, Pipe Size 3 Inch/78 Metric, Overall Diameter 4.38 Inch/111.25 Millimeters, Maximum Panel Thickness 0.25 Inch/6.35 Millimeters, Throat Diameter 2.97 Inch/75.44 Millimeters, Nitrile Rubber (Buna-N) Sealing Ring, Dark Gray

STG8-G

PVC Coated Zinc Grounded Hub with Thermoplastic Insulated Throat, Pipe Size 3 Inch/78 Metric, Overall Diameter 4.38 Inch/111.25 Millimeters, Maximum Panel Thickness 0.25 Inch/6.35 Millimeters, Throat Diameter 2.97 Inch/75.44 Millimeters, Nitrile Rubber (Buna-N) Sealing Ring, Dark Gray
Locknut, Grounding, Zinc Die Cast, Size 4 Inch, 3/0-6 Lug

170-G

Locknut, Grounding, Zinc Die Cast, Size 4 Inch, 3/0-6 Lug
Non watertight fittings made of malleable iron. Hub size 3/4 inch.

10000

Non watertight fittings made of malleable iron. Hub size 3/4 inch.
Non watertight fittings made of malleable iron. Hub size 1-1/2 inches.

10003-TB

Non watertight fittings made of malleable iron. Hub size 1-1/2 inches.
5 Inch Aluminum, Hub Connector with Thermoplastic Insulating Throat, Sealing Ring Nitrile (BUNA-N) for Use with Rigid/IMC Conduit

H500A

5 Inch Aluminum, Hub Connector with Thermoplastic Insulating Throat, Sealing Ring Nitrile (BUNA-N) for Use with Rigid/IMC Conduit
Aluminum liquidtight fitting for tray cable. Hub size N.P.T. 3/4 inch Range over jacket is 0.32 to 0.57 inch.

HLT075

Aluminum liquidtight fitting for tray cable. Hub size N.P.T. 3/4 inch Range over jacket is 0.32 to 0.57 inch.
Aluminum liquidtight fitting for tray cable. Hub size N.P.T. 2 inches Range over jacket is 1 to 1.56 inches.

HLT200

Aluminum liquidtight fitting for tray cable. Hub size N.P.T. 2 inches Range over jacket is 1 to 1.56 inches.
Connector, Non-Metallic Sheathed Cable, Size 1/2 Inch, Total Length 15/16 Inch, Width 7/8 Inch, Clamping Range Minimum 0.21 Inch to Maximum 0.42 Inch, Non-Metallic, Suggested Application 14/2-10/2, 14/3-10/3 2 Cables: 14/2-12/2, Pack of 10,000

CI4004-BAR

Connector, Non-Metallic Sheathed Cable, Size 1/2 Inch, Total Length 15/16 Inch, Width 7/8 Inch, Clamping Range Minimum 0.21 Inch to Maximum 0.42 Inch, Non-Metallic, Suggested Application 14/2-10/2, 14/3-10/3 2 Cables: 14/2-12/2, Pack of 10,000
