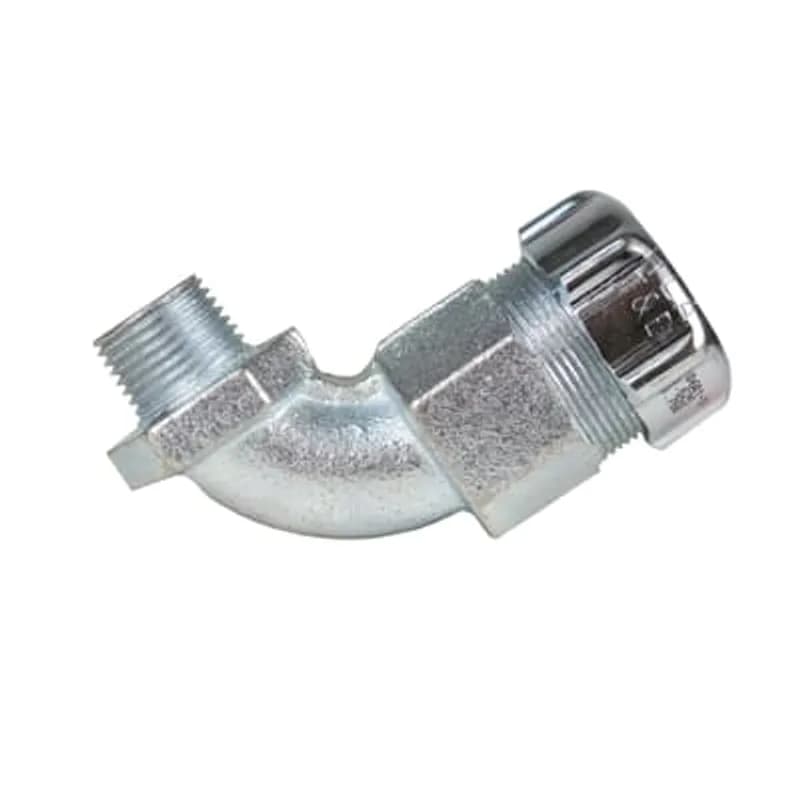

ABB - Installation Products 10602-TB - 90 degres watertight fitting made of malleable iron with a protective grounding sleeve for jacketed metal-clad cable. 1/2 inch hub thread size. Neoprene bushing 0.750-0.885 inch.
More images

ABB Installation Products 10602-TB 90 degres watertight fitting made of malleable iron with a protective grounding sleeve…

UPC: 786210106021


Documents & Media
Manufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB 10602-TB is a 90-degree watertight fitting designed for jacketed metal-clad cable applications. Constructed from durable malleable iron, this fitting ensures reliable performance in industrial settings. It features an integrated protective grounding sleeve, crucial for maintaining electrical safety and system integrity. The hub thread size is 1/2 inch, providing a standard connection point. A neoprene bushing is included, accommodating cable diameters ranging from 0.750 to 0.885 inches, ensuring a secure and watertight seal. This fitting is manufactured by ABB - Installation Products, a recognized provider of electrical infrastructure components. Its robust construction and specific design features make it suitable for environments where moisture ingress is a concern and proper grounding is essential. The 90-degree angle facilitates efficient cable routing in confined spaces or when directional changes are required. Key specifications include: * **Type:** 90-degree watertight fitting * **Material:** Malleable iron * **Grounding:** Protective grounding sleeve included * **Hub Thread Size:** 1/2 inch * **Bushing Type:** Neoprene * **Bushing Diameter Range:** 0.750 - 0.885 inches * **Manufacturer:** ABB - Installation Products * **SKU:** 10602-TB
  • 90-degree watertight fitting for jacketed metal-clad cable
  • Constructed from durable malleable iron
  • Includes protective grounding sleeve for enhanced safety
  • 1/2 inch hub thread size for standard connections
  • Neoprene bushing accommodates 0.750-0.885 inch cable diameters

Specifications

Color
Silver
Material
Malleable Iron
Size
1/2 Inch
Size
1/2 inch (hub thread), 0.750-0.885 inch (neoprene bushing)
Special Features
When using fittings on single conductor cable, aluminum fittings and aluminum locknuts must be used
Standard
UL E38947, CSA 23086, CSA 4484
Type
Watertight Fittings
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.4700 L
Package Weight (Metric)
0.2130 kg
