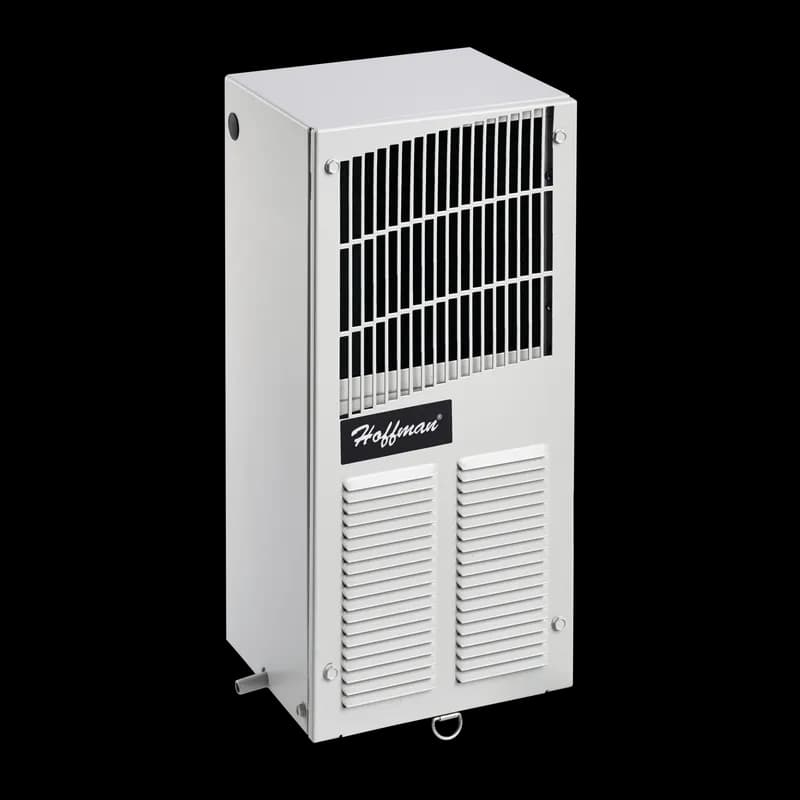

Overview
- Compact footprint to minimize real estate and maximize capacity
- Models for 115, 230 and 460 VAC power input
- Outdoor model operating temperature range from -40 F/-40 C to 131 F/55 C
- UL Listed to save customers time and money with agency approvals (some models UL recognized)
- Painted galvanized or stainless steel sheet-metal cover for rugged factory and outdoor environments
- Reliable mechanical thermostat on enclosure side of the unit
- Dual condenser-side air movers for performance redundancy
- Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
- Exterior and fully recessed mounting options on many models
- Easy-mount flanges for simple installation
Specifications
Amperage Rating | 3.8/3.6 A |
Application | Controls and Drives;Power Distribution |
Btu Rating | 800 |
Color | Lt Gray |
Color | Gray |
Color | Light Gray |
Color Code | RAL 7035 |
Depth | 160 mm |
Depth | 6.3 in |
Finish | Powder Coated |
Frequency | 50/60Hz |
Frequency Rating | 50/60 Hz |
Frequency Rating, Maximum | 60 Hz |
Frequency Rating, Minimum | 50 Hz |
Height | 15.75 in |
Height | 400 mm |
Material | Steel |
Material | Mild Steel |
Max Current | 3.5 A |
NEMA Rating | 4 Watertight |
Nominal Capacity Btu/h | 800 Btu/h |
Nominal Capacity Watts | 235 W |
Nominal Voltage | 115 V |
Number Of Phases | 1 |
Operating Temperature | -40-55 °C |
Operating Temperature | -40-131 |
Operating Temperature | -40-55 |
Operating Temperature | 131 Deg F @ 60 Hz |
Phase | 1 Ph |
Phase | 1 |
Product Family | T-Series |
Protection Rating | NEMA Type 4 |
Remote Access Control | No |
Series | T-Series |
Series | T-Series Compact Outdoor |
Thickness | 51.40mm (2.024") |
Thickness | 1.21 mm |
Thickness | 18 ga |
Type | Air Conditioners |
Voltage AC | 100-120 V |
Voltage Rating | 100/115 |
Voltage Rating | 115V |
Weight | 12 kg |
Weight | 28.2 lb |
Width | 191 mm |
Width | 7.5 in |
Package Dimensions (L x W x H) | 11.2 IN x 9.9 IN x 18.8 IN |
Package Dimensions (L x W x H) | 28.448 cm x 25.146 cm x 47.752 cm |
Package Weight (Imperial) | 28.200 L |
Package Weight (Metric) | 12.792 kg |
How to Install the T150116G120 Air Conditioner
This guide provides step-by-step instructions for installing and setting up the T150116G120 air conditioner, ensuring proper functionality and safety.
Estimated time: 45m
Tools needed:
Screwdriver, Wrench, Wire strippers, Multimeter
Supplies needed:
Mounting screws, Gasket kit, Drain tube
- Inspect the air conditioner
Check for any visible damage and ensure the unit is functioning correctly before installation. Connect the power cord to a grounded supply and run the unit for 5-10 minutes.
- Prepare the enclosure
Using the cutout dimensions provided in the manual, create the necessary air 'IN' and 'OUT' openings, and prepare the mounting bolt hole pattern on the enclosure.
- Install gaskets
Use the gasket kit provided to install gaskets on the air conditioner to ensure a proper seal.
- Mount the air conditioner
Secure the air conditioner to the enclosure using the mounting bolts and screws provided. Ensure the unit is upright and allow it to remain in this position for at least 5 minutes before operation.
- Connect the power supply
Refer to the nameplate for electrical requirements and connect the power cord to a properly grounded power supply. Avoid using an extension cord.
- Route the drain tube
Ensure the drain tube is routed without kinks and maintains a continuous downward slope to prevent overflow of the condensate drain pan.
- Adjust the thermostat
Remove the nylon plug from the front face of the unit and use a screwdriver to adjust the thermostat to the desired temperature setting.
- Test the installation
Turn on the air conditioner and verify that both the evaporator and condenser fans are operational, and check for proper airflow.
