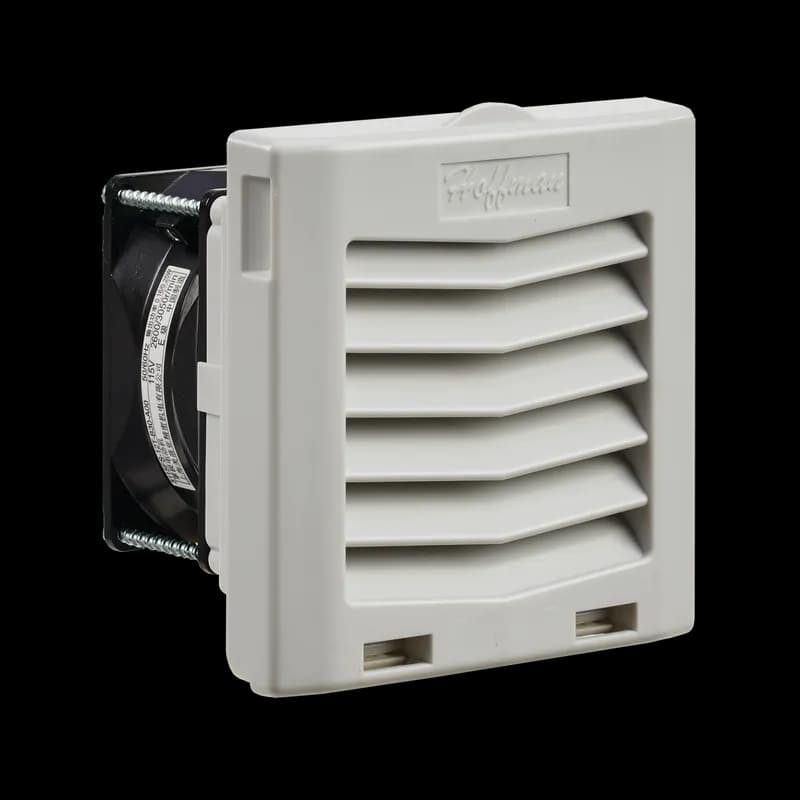

Overview
- Click-Fit design quickly installs into enclosure wall; no tools or screws required
- Opens with the flick of a finger for easy filter replacement
- Enclosure side wall mounting
- Reverse airflow option on HF13 models available to push/pull air through higher static pressure
- Standard rope gasket provides proper seal to the enclosure
- Similar cut-out sizes as other filter fan manufacturers
- Terminal block connections
- Optional thermostat available to save energy and extend service life
- Hinged grille remains attached after opening
- Size rage from 4 inch (102 mm) to 13 inch (325 mm)
Specifications
Airflow | 59 m³/h |
Airflow | 35 ft³/min |
Amperage Rating | 0.16/0.14 A |
Application | Power Distribution; Controls and Drives |
Application | Controls and Drives;Power Distribution |
Color | Light Gray |
Color | Gray |
Color | Grey |
Color | Lt Gray |
Color Code | RAL 7035 |
Connection Type | Terminal Block |
Current Rating | 0.16A |
Depth | 101 mm |
Depth | 3.98 in |
Finish | Smooth Matte |
Finish | Lt Gray;Smooth Matte |
Flow Rate | 35 CFM |
Frequency | 60 Hz |
Height | 6.15 in |
Height | 156 mm |
Housing Material | Non-metallic |
IP Rating | IP54 |
Material | UV-resistant plastic |
Material | Plastic |
Max Current | 0.16 A |
Mounting Type | tool-less click-fit |
Mounting Type | Side-Mount |
Nema Rating | Type 12 |
Nominal Voltage | 115 V |
Operating Temperature | 14-131 °F |
Operating Temperature | -40 to 60 |
Series | HF |
Series | HF05 |
Size | 6.15 x 6.16 x 3.98 in |
Size | 5 in |
Type | Fans and Filter Fans |
Voltage AC | 100-100 V |
Voltage Rating | 115 VAC |
Voltage Rating | 115V |
Weight | 0.8 kg |
Weight | 2.5 lb |
Width | 156 mm |
Width | 6.16 in |
Package Dimensions (L x W x H) | 8.3 IN x 8.3 IN x 8.6 IN |
Package Dimensions (L x W x H) | 21.082 cm x 21.082 cm x 21.844 cm |
Package Weight (Imperial) | 2.500 L |
Package Weight (Metric) | 1.134 kg |
How to Install the Side-Mount Filter Fans and Grilles
This guide provides step-by-step instructions for installing side-mount filter fans and grilles in an enclosure, ensuring proper fit and functionality.
Estimated time: 45m
Tools needed:
Screwdriver, Drill, Wire strippers, Multimeter
Supplies needed:
Mounting screws, Terminal connectors
- Prepare the enclosure
Apply the cutout template to the desired location on the side of the enclosure. Ensure all internal components are clear of the cutting tool to avoid damage.
- Cut the opening
Cut the hole in the enclosure according to the appropriate size for the model purchased. Deburr the cutting edge to prevent injury.
- Insert the fan or grille
Insert the fan or grille into the opening and push until all four corners snap and lock into place.
- Install mounting fasteners
If the enclosure material thickness is between 0.10 (2.5 mm) and 0.14 (3.5 mm), install mounting fasteners. For thickness greater than 0.14 (3.5 mm), removal of the grille is required to install the fasteners.
- Wire the filter fan
Follow the wire diagrams provided in the manual to connect the filter fan to the power supply. Ensure all connections are secure.
- Verify installation
Check that the enclosure with the installed filter fan has a minimum clearance of 7.00 (178 mm) to ensure proper airflow.
