Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

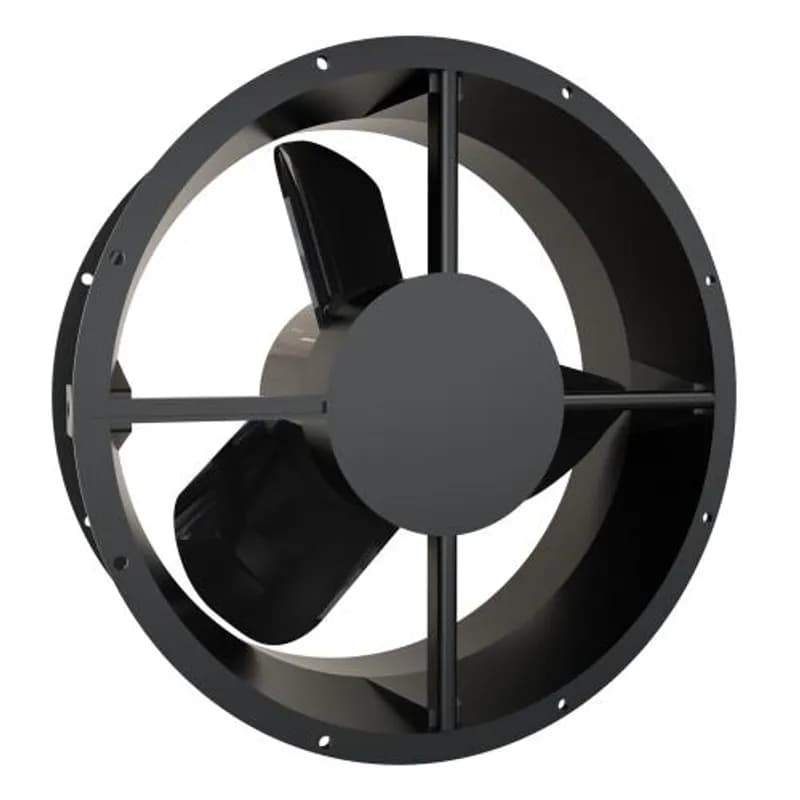

Overview
- 254 mm (10-inch) fan size for effective airflow
- 550 CFM (934 m³/hr) free air delivery
- 115V AC, 60 Hz operation
- 76,000-hour service life at 40°C
- Terminal block for easy power connection
Specifications
Brand Name | Hammond Mfg. |
Connection Type | Terminal Block |
Frequency | 60 Hz |
Size | 254 mm (10-inch) |
Sub Brand | DNMF Series |
Voltage Rating | 115 V ac |
Package Dimensions (L x W x H) | 1 IN x 1 IN x 1 IN |
Package Dimensions (L x W x H) | 2.54 cm x 2.54 cm x 2.54 cm |
Package Weight (Imperial) | 4.290 L |
Package Weight (Metric) | 1.946 kg |
Frequently Asked Questions
What fan sizes are available in the DNMF Series?
The DNMF Series fans are available in 3.15", 4.70", 5.91", or 10" sizes.
What voltage options are offered for the DNMF Series fans?
The DNMF Series fans are available in either 115 or 230 VAC, 50/60 Hz.
What are the dimensions for the FAN10A115 fan?
The FAN10A115 fan has dimensions of 10.00" height, 10.00" width, and 3.50" depth.
What is the speed of the FAN10A115 fan?
The FAN10A115 fan operates at 1650 RPM on 50Hz and 30 RPM on 60Hz.
What is the noise level of the FAN10A115 fan?
The FAN10A115 fan has a noise level of 35 dB.
What type of motor protection does the DNMF Series fan have?
The DNMF Series fans feature an impedance-protected motor.
What is the insulation class for the DNMF Series fan motor?
The motor in the DNMF Series fans is Class-B insulated.
What are the fan blades made of for most DNMF Series models?
Most DNMF Series fans have metal fan blades, except for FAN150AC230, FAN10A115, and FAN10A220.
Which DNMF Series fans have male plug terminations?
DNMF100AC, FAN150AC, and FAN10A fans have male plug terminations and require fan cords.
What are the lead wire lengths for FAN80AC fans?
FAN80AC fans come with 11" long lead wires.
