nVent DAHHL501AC - Hazardous Location Heater, 50W 115V, Aluminum

nVent DAHHL501AC Hazardous Location Heater, 50W 115V, Aluminum

UPC: 783510287177


Documents & Media
Installation Instructions

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The nVent DAHHL501AC is a 50W conductive hazardous location heater designed for freeze protection in critical equipment. Manufactured by nVent, this aluminum heater features self-limiting power regulation and a T4 temperature classification. It provides freeze protection down to -60°C (-76°F) and maximum operating temperature of 150°C (302°F). Ideal for mounting directly to manifolds, instruments, or control valves in oil & gas, chemical processing, and mining applications where condensation and freezing are concerns.
  • 50W, 80W, 200W, 300W, 400W and 600W models available
  • Provides freeze protection down to -76 F / -60 C
  • Conductive and Convection heating types available
  • 50W and 80W models can be mounted directly to manifolds, measuring or analyzing instruments, control valves, and similar equipment
  • 200W, 300W, 400W, 600W models are finned heaters that heat the area by transferring the heat from the heater to surrounding air, creating a convection current
  • Two thermostat options available with a 50 F / 10 C or 68 F / 20 C set point

Specifications

Application
Hazardous Environments
Color
Black
Depth
1.2 in
Depth
30 mm
Finish
Anodized
Frequency
50/60 Hz
Heating Capacity
50 W
Height
3.5 IN
Height
89 mm
IP Rating
IP65
Material
Aluminum
Nominal Capacity Watts
50 W
Nominal Voltage
115 V
Series
HL HEATER SL
Series
DAHHL
Series
DAHHL501AC
Type
Heaters
Voltage AC
110-265 V
Voltage Rating
115 V
Voltage Rating
110-265 VAC or VDC
Voltage Rating
115 VAC
Voltage Rating
110-265 Vac
Weight
0.5 kg
Weight
1.26 lb
Width
1.6 in
Width
41 mm
Package Dimensions (L x W x H)
6.97 IN x 5 IN x 2.17 IN
Package Dimensions (L x W x H)
17.7038 cm x 12.7 cm x 5.5118 cm
Package Weight (Imperial)
1.260 L
Package Weight (Metric)
0.572 kg
Hazardous Location Heater, 80W 115V, Aluminum

DAHHL801AC

Hazardous Location Heater, 80W 115V, Aluminum
FLH 010W Rad Heater 110-250V

17001005007

FLH 010W Rad Heater 110-250V
Hazardous Location Heater Thermostat 10C SetPt, 1.1X.9X4.3, Black, Aluminum

HLTSTAT10C

Hazardous Location Heater Thermostat 10C SetPt, 1.1X.9X4.3, Black, Aluminum
Hazardous Location Heater Thermostat 20C SetPt, 1.1X.9X4.3, Black, Aluminum

HLTSTAT20C

Hazardous Location Heater Thermostat 20C SetPt, 1.1X.9X4.3, Black, Aluminum

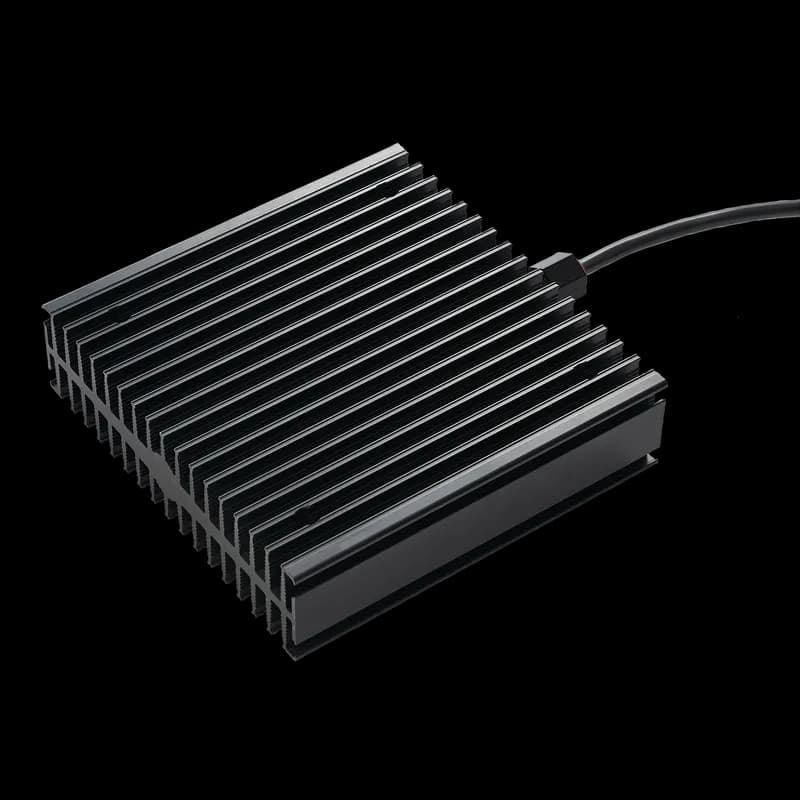

Hazardous Location Heater, 200W 115V, Aluminum

DAHHL200AC

Hazardous Location Heater, 200W 115V, Aluminum
Hazardous Location Heater, 300W 115v , Aluminum

DAHHL300AC

Hazardous Location Heater, 300W 115v , Aluminum
Hazardous Location Heater, 400W 115V, Aluminum

DAHHL4001A

Hazardous Location Heater, 400W 115V, Aluminum
Hazardous Location Heater, 600W 115V, Aluminum

DAHHL6001A

Hazardous Location Heater, 600W 115V, Aluminum

How to Install the DAHHL501AC Heater

This guide provides step-by-step instructions for installing and wiring the DAHHL501AC heater for effective temperature maintenance in hazardous locations.

Estimated time: 45m

Tools needed:

Screwdriver, Wire strippers, Multimeter

Supplies needed:

Mounting screws, Terminal connectors, Cable gland or ½ NPT conduit

  1. Mount the heater

    Secure the DAHHL501AC heater block directly to a flat conductive surface using at least one bolt through the middle hole. Ensure the heater is level and firmly attached.

  2. Connect the wiring

    Install the connection cable into the customer-supplied Ex junction box, ensuring to observe the permissible bending radius of 5 times the outside cable diameter. Use a cable gland or ½ NPT conduit as appropriate.

  3. Ground the heater

    Connect the ground terminal of the heater to ensure potential equalization. Use a multimeter to verify the connection is secure and meets safety standards.

  4. Power on the heater

    Once installation is complete, turn on the heater. Be aware that the startup current may be 3 to 5 times greater than the nominal current for the first 1 to 2 seconds.

  5. Verify operation

    Use a multimeter to check the heater's output and ensure it is functioning within the specified parameters. Monitor for any deviations beyond 15% from the nominal output.
