Contact for Pricing

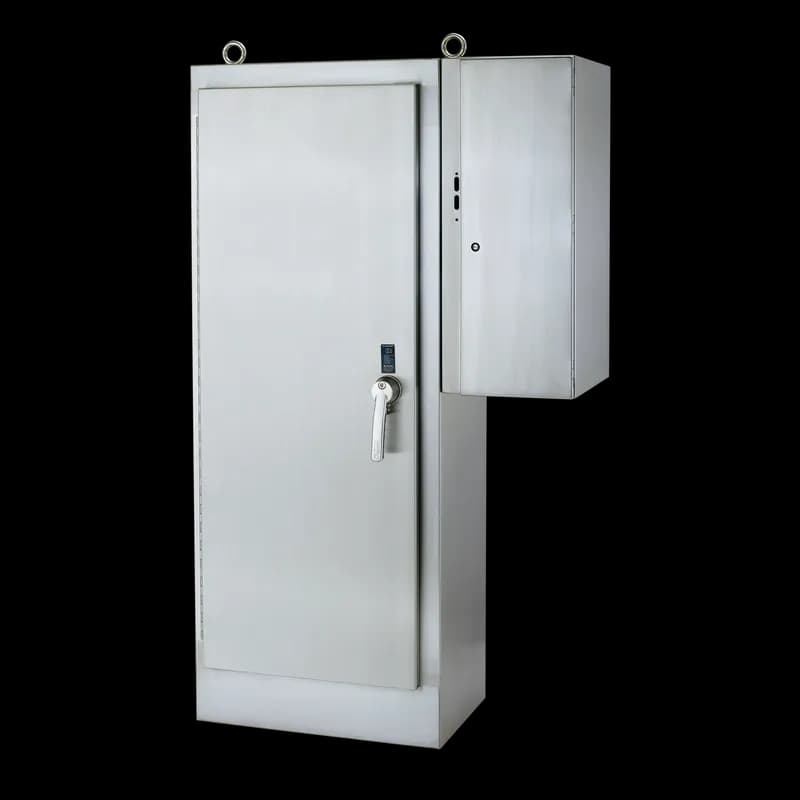

Overview
- Interlocks with doors of main control cabinet when the disconnect switch is powered ON
- Maintains UL Type 4X rating
- Provision for pass-through power into the main cabinet - blank plate for customer modification
- Preferred disconnect cutout
- Quarter-turn screwdriver slot and 3-point latch
- Hidden hinges
- Bonding provision on door
- Conductive back panel included
- Installation hardware and templates included
- Continuously welded and ground seams all around
Specifications
Application | Corrosive Environments; Controls and Drives; Arc Flash Safety |
Color | Unpainted |
Color | Brushed |
Current Rating | 200 A |
Depth | 18.12 in |
Depth | 460 mm |
Finish | Brushed #4 |
Height | 34.45 in |
Height | 875 mm |
IP Rating | IP66 |
Ip Rating | IP4X |
Ip Rating | IP66/IP67 |
Material | 304 Stainless Steel |
Material | Stainless Steel 304 |
Material | SS304 |
Material | Stainless Steel |
Modification Services | Yes |
NEMA Rating | 12 Indoor, dust-resistant |
Nema Rating | Type 4X |
Product Family | Sequestr |
Protection Rating | NEMA Type 12 |
Series | Sequestr |
Size | 34x14x18 In |
Size | 34x14x18 |
Size | 18" Deep Retrofit Kit in |
Thickness | 14 ga |
Thickness | 1.9 mm |
Type | Stainless Steel Freestanding Industrial Disconnect Enclosures |
Type Number | Type 4X |
Weight | 77.4 lb |
Width | 14 IN |
Width | 356 mm |
Package Dimensions (L x W x H) | 37.5 IN x 21.5 IN x 16.6 IN |
Package Dimensions (L x W x H) | 95.25 cm x 54.61 cm x 42.164 cm |
Package Weight (Imperial) | 77.400 L |
Package Weight (Metric) | 35.109 kg |
How to Install the Sequestr External Disconnect Enclosure
This guide provides step-by-step instructions for installing the Sequestr external disconnect enclosure to a control enclosure, ensuring proper mounting, wiring, and initial setup.
Estimated time: 1h
Tools needed:
Screwdriver, Drill, Volt meter, Wire strippers
Supplies needed:
Mounting screws, Terminal connectors, Hoffman hole seal, Hoffman blank adapter plate
- Power Down the System
Turn off the local disconnect in the control enclosure and the feeder disconnect. Wear appropriate Personal Protective Equipment (PPE) and test for power using a volt meter.
- Prepare the Control Enclosure
Remove the existing disconnect from the control enclosure and seal the hole with a Hoffman hole seal. Cover all components in the control enclosure to protect them.
- Mount the Sequestr Enclosure
Remove the subpanel from the Sequestr enclosure. Drill a hole for the power line entrance, then hang the Sequestr enclosure on the control enclosure using M6x16mm bolts and secure it with washer head cap screws.
- Install Circuit Breaker/Disconnect Switch
Drill mounting holes for the circuit breaker or disconnect switch on the panel. Install the device according to the manufacturer's instructions and secure the panel back into the Sequestr enclosure.
- Connect Wiring
Install conduit and connect wires to the incoming side of the circuit breaker/disconnect switch in the Sequestr enclosure. Ensure all connections are secure and properly insulated.
- Power Up the System
Remove any protective coverings, ensure the operator handle is in the 'OFF' position, close and latch the Sequestr and control enclosure doors, then turn on the feeder disconnect switch and verify system operation.
