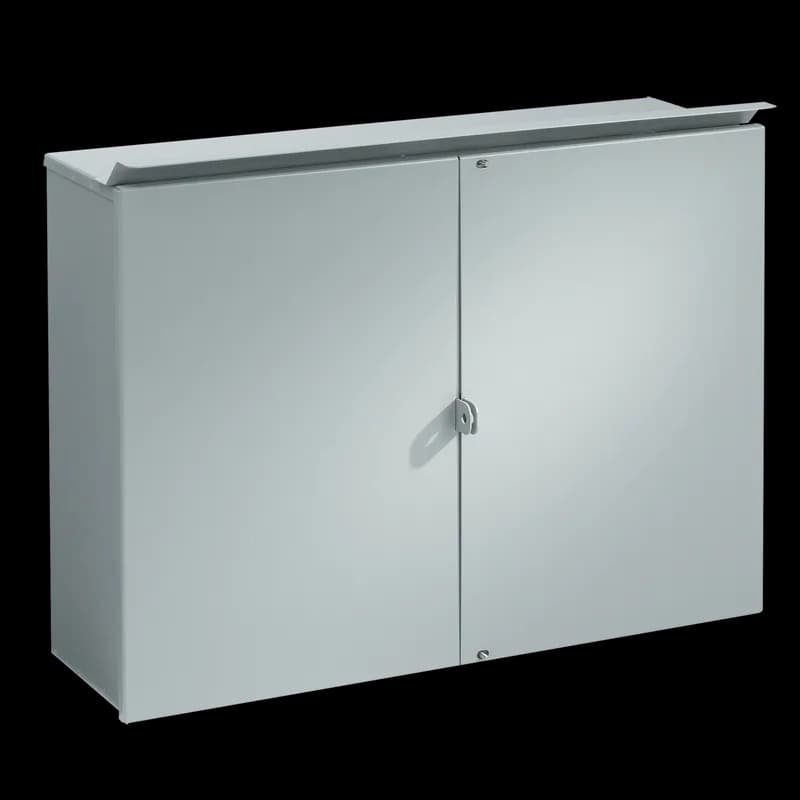

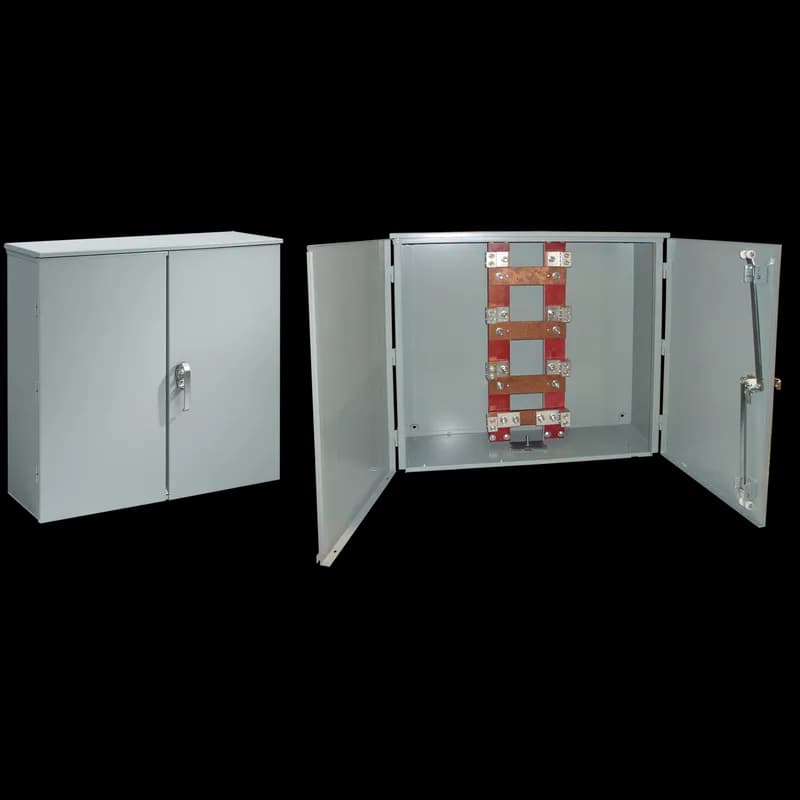

Overview
- Double door with 3-point latch includes padlock feature
- Lift-off hinges for removable doors
- Mechanical lugs provided for three-phase line-load connections plus neutral
- Ground lug
- Catalog number A1200NECT includes panel-mounting provisions for voltage transformer (VT)
- Embossed mounting holes
- No gasketing or knockouts
- Enclosures are finished with paint over plated surfaces
- No gasketing or knockouts
- See also Accessories. Touch-Up Paint
Specifications
Application | Power Distribution |
Body Thickness | 1.9 mm |
Body Thickness | 14 ga |
Color | Gray |
Color Code | ANSI 61 |
Connection Type | Mechanical Lugs |
Current Rating | 800-1200 A |
Depth | 305 mm |
Depth | 12 |
Depth | 305 |
Door Thickness | 14 ga |
Door Thickness | 1.9 mm |
Finish | Galvanized |
Height | 36 in |
Height | 914 mm |
IP Rating | IP32 |
Material | Mild Steel |
Material | Steel |
Mechanical Lug Capacity | Each Phase (3) 750MCM-1/0 |
Modification Services | Yes |
Mounting Type | Embossed Mounting Holes |
NEMA Rating | 3R Weather-resistant, except dust |
NEMA Rating | Type 3R |
Poles | 3-Phase |
Protection Rating | NEMA Type 3R |
Series | A800NECT |
Service | 208Y/120-400 and 800 Amp |
Type | Utility / Canadian Cabinets and Splitters |
Type | Utility Cabinets |
Type Number | Type 3R |
Weight | 149 lb |
Width | 914 mm |
Width | 36 |
Width | 914 |
Package Dimensions (L x W x H) | 44.25 IN x 43.5 IN x 15.75 IN |
Package Dimensions (L x W x H) | 112.395 cm x 110.49 cm x 40.005 cm |
Package Weight (Imperial) | 149.000 L |
Package Weight (Metric) | 67.586 kg |
