Panduit

ZDF48-RA

Name: Panduit 26 RU Industrial Distribution Frame (IDF) for factory floor switch deployment.
Brand: Panduit
SKU: ZDF48-RA
Availability: InStock

UPC: 074983974948

Documents & Media

Brochure Technical Bulletin Technical Drawing Full Engineering Drawing Installation Instructions Specification Sheet

Contact for Pricing

Overview

The Panduit ZDF48-RA is a pre-configured 26 RU Industrial Distribution Frame (IDF) specifically engineered for the deployment and protection of up to five 19" rack mount switches on the factory floor. Constructed from durable steel/metal, this IDF provides robust physical and thermal protection for sensitive network equipment operating within harsh industrial environments. Its 26 RU size offers ample vertical space for multiple switches and associated cabling. The ZDF48-RA is designed for versatile mounting, featuring provisions for both DIN rail mounting and standard 19" rack mount configurations, ensuring compatibility with existing infrastructure. This comprehensive solution includes essential components for immediate deployment: keys for secure access, cage nut rails for switch mounting, one fiber tray for optical cable management, two patch panels for network connectivity, integrated cable management solutions, and a complete grounding system including ground whips, bar, and cable. Furthermore, it comes with a DIN rail mounting provision and a valuable cable/fiber/power penetration recommendation template to guide proper installation and ensure optimal performance and safety. The Panduit ZDF48-RA (SKU: ZDF48-RA) is manufactured in the US and adheres to the UNSPSC code 43223308. This pre-configured IDF simplifies the process of establishing reliable network connectivity in demanding industrial settings, safeguarding your critical IT assets against environmental hazards.

26 RU pre-configured Industrial Distribution Frame (IDF)
Accommodates up to five 19" rack mount switches
Provides physical and thermal protection in harsh industrial environments
Steel/Metal construction for durability
Includes keys, cage nut rails, fiber tray, patch panels, cable management, and grounding components

Specifications

Application	Industrial Automation
Color	Gray
Depth	31.06 in
Depth	788.924 mm
Finish	Powder Coat
Material	Steel
Mounting	Wall Mount
Standard	RoHS Compliant;UL 508A Standard for Industrial Control Panels, cUL Listed per CSA, UL Type 4/12 or 4/4X/12 and IP66 Rated
Type	Industrial Distribution Frame
Width	23.62 in
Width	599.948 mm
Package Dimensions (L x W x H)	64 IN x 42 IN x 34 IN
Package Weight (Imperial)	295 lbs

DDW-120

Ethernet SHDSL Extender

Fiber cable ODC SC Duplex 670mm

Fiber cable ODC to SC duplex - 670mm

PS-60

Power supply for DIN-rail

ARH 1656

DIN Rail ? DIN 35

REFK1904231BK1

24U 21.34W 31.5D CABINET BLK

ST4803PDGM

Surge-Trap® Surge Protective Device is a no-fuse surge suppressor. The Surge-Trap is a UL 1449 Third Edition compliant modular style surge protective device that is DIN-rail mountable featuring a fail-safe self-protected design, visual indicator and a small foot print. A remote indicator option provides status to critical control circuit. The Surge-Trap provides advanced overvoltage protection utilizing Mersen's patented TPMOV® technology without additional protection devices. 480 Volts 3P Delta system type without N-G mode, with microswitch .

3085

Super-Safeway® Multiple Outlet Box, Extended Depth, 2-Sided, F2 (1/2") Cord Grip Body, with Flip Lids for (2) Duplex Not Included

PDCP2078

DataCom Enclosure Pkg, Bulletin DPVD (PROLINE® Voice and Data Package - PROLINE Voice and Data Package), Size/Dims: 2000x700x800mm, Material: Steel, Finish: Lt Gray

PPFS19010BK

6U PERF PANEL

STP6X12MIG

This TX6A 10Gig Cat 6A STP Patch Cord is a 12-Meter, Int'l Grey cord constructed of 26 AWG, shielded, twisted pair, stranded, CM/LSZH cable and with high-performance modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. The slender strain relief boot provides easy access in high-density applications. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.

F62ERLNSNSNM002

OM1 2 fiber, 16mm jacket, patchcord, Riser (OFNR) rated, LC duplex to SC duplex, Std IL

CESUM3-C15

Membrane plate cable entry system offers a good strain relief while maintaining IP/NEMA ingress sealing rating. The CESUM3-C15 is a Rectangular Un-Terminated Cable Entry System, 4.1" (103 mm) Long, with 8 Openings 0.12" (3.0 mm) to 0.31" (8 mm), 3 Openings 0.20" (5.1 mm) to 0.35" (9.0 mm), 4 Openings 0.3" (7.5 mm) to 0.47" (12.0 mm). Color is Black. Standard Package Quantity is 1 PC.

Z23C-S

The network zone system is a mild steel enclosure that is 24" x 36". This network zone system is made for two industrial switches and includes sixteen Cat 6 UTP copper patch cords and jack modules, four multimode LC fiber patch cords with six LC adapters, backplane and cable management. With UL Type 4/12 and IP 66 ratings, the enclosures provide reliability and high performance, as an integral component of the end-to-end solution for Industrial Networks.

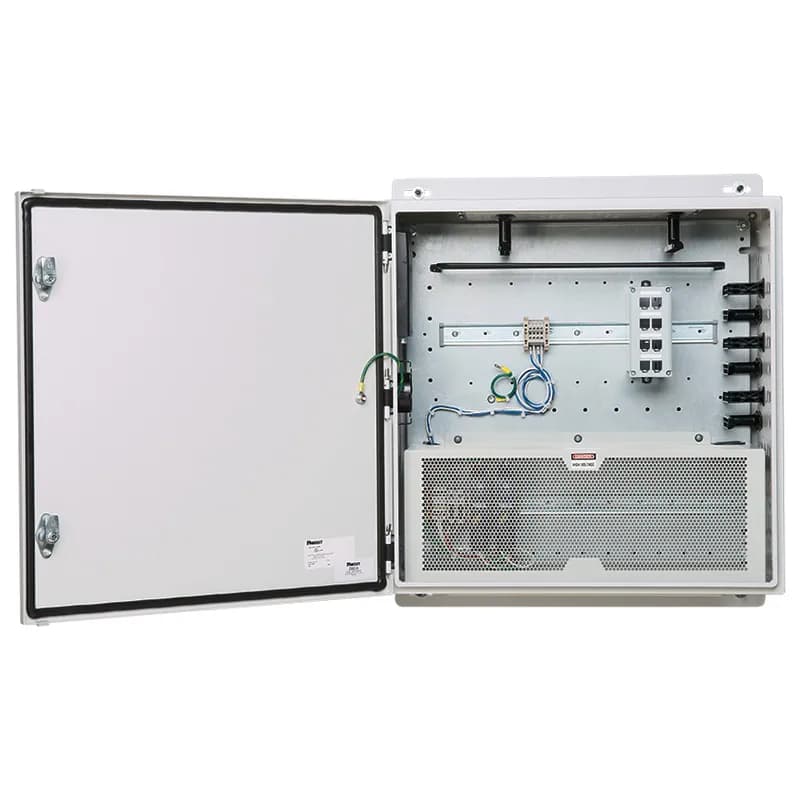

Z22U-S15

The universal network zone system is a mild steel enclosure that is 24" x 24 . This network zone system is made for one industrial switch and includes eight Cat 6 UTP copper patch cords and jack modules, two multimode LC fiber uplink patch cords with six adapters and redundant power supplies and a maintenance-free Uninterruptible Power Supply (UPS). The universal network zone system provides usability like IT switches for any customer owned industrial switch to be deployed on the plant floor.

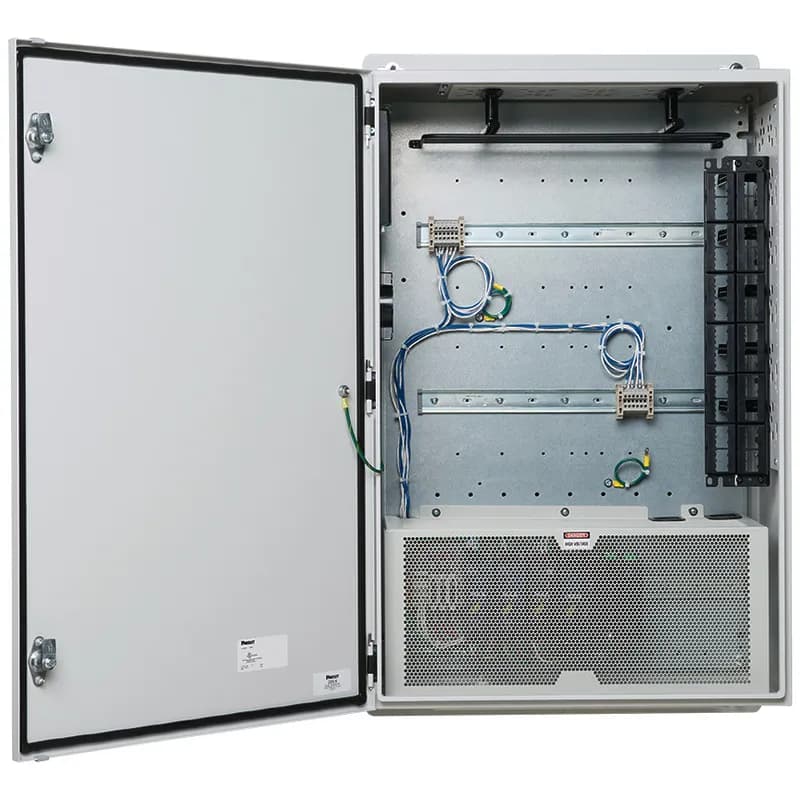

Z23U-S24

The universal network zone system is a mild steel enclosure that is 24" x 36 . This network zone system is made for two industrial switches and includes sixteen Cat 6 UTP copper patch cords and jack modules, four multimode LC fiber uplink patch cords with six adapters and redundant power supplies. The zone system provides usability like IT switches for any customer owned industrial switch to be deployed on the plant floor.

Z22U-S15S

The universal network zone system is a mild steel enclosure that is 24" x 24 . This network zone system is made for one industrial switch and includes eight Cat 6 shielded STP copper patch cords and jack modules, two MM LC fiber uplink patch cords with six adapters and redundant power supplies and a maintenance-free Uninterruptible Power Supply (UPS). The universal network zone system provides usability like IT switches for any customer owned industrial switch to be deployed on the plant floor.

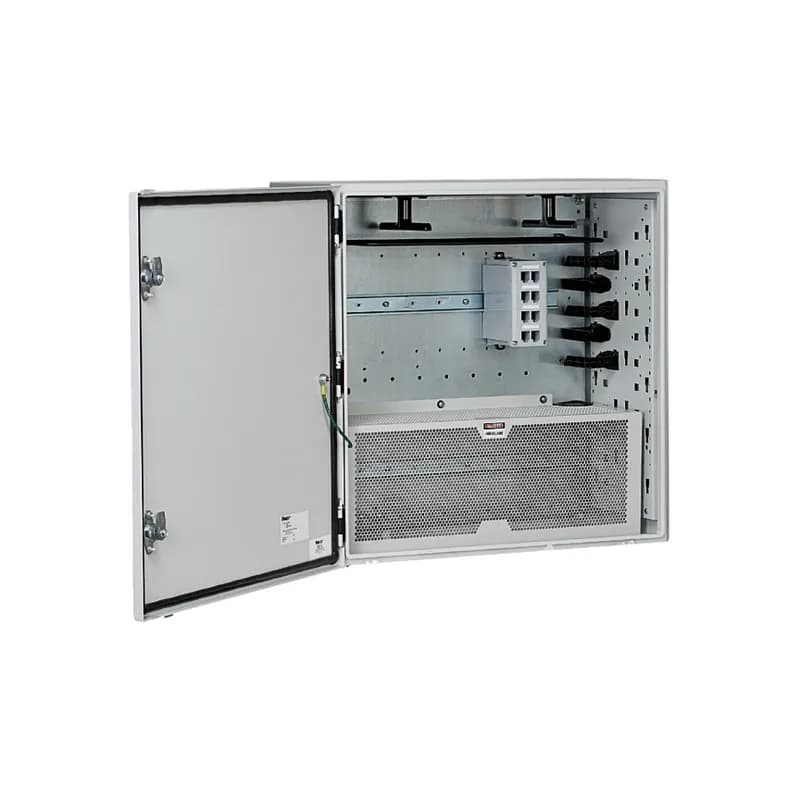

Z22C-S

The network zone system is a mild steel enclosure that is 24" x 24". This network zone system is made for one industrial switches and includes eight Cat 6 UTP copper patch cords and jack modules, two multimode LC fiber patch cords with six LC adapters, backplane and cable management. With UL Type 4/12 and IP 66 ratings, the enclosures provide reliability and high performance, as an integral component of the end-to-end solution for Industrial Networks

Z23U-S24S

The universal network zone system is a mild steel enclosure that is 24" x 36 . This network zone system is made for two industrial switches and includes sixteen Cat 6 shielded copper patch cords and jack modules, four multimode LC fiber uplink patch cords with six adapters and redundant power supplies. The universal network zone system provides usability like IT switches for any customer owned industrial switch to be deployed on the plant floor.

Z23U-S21

The universal network zone system is a mild steel enclosure that is 24" x 36 . This network zone system is made for two industrial switches and includes sixteen Cat 6 UTP copper patch cords and jack modules, four multimode LC fiber uplink patch cords with six adapters and redundant power supplies and a battery Uninterruptible Power Supply (UPS). The Universal Network Zone System provides usability like IT switches for any customer owned industrial switch to be deployed on the plant floor.

Z23U-S21S

The universal network zone system is a mild steel enclosure that is 24" x 36 . This network zone system is made for two industrial switches and includes sixteen Cat 6 shielded copper patch cords and jack modules, four multimode LC fiber uplink patch cords with six adapters and redundant power supplies and a battery Uninterruptible Power Supply (UPS). The zone system provides usability like IT switches for any customer owned industrial switch to be deployed on the plant floor.

Z22U-S14

The universal network zone system is a mild steel enclosure that is 24" x 24 . This network zone system is made for one industrial switch and includes eight Cat 6 UTP copper patch cords and jack modules, two multimode LC fiber uplink patch cords with six adapters and redundant power supplies. The universal network zone system provides usability like IT switches for any customer owned industrial switch to be deployed on the plant floor.

Z22U-S14S

The universal network zone system is a mild steel enclosure that is 24" x 24 . This network zone system is made for one industrial switch and includes eight Cat 6 shielded copper patch cords and jack modules, two multimode LC fiber uplink patch cords with six adapters and redundant power supplies. The universal network zone system provides usability like IT switches for any customer owned industrial switch to be deployed on the plant floor.

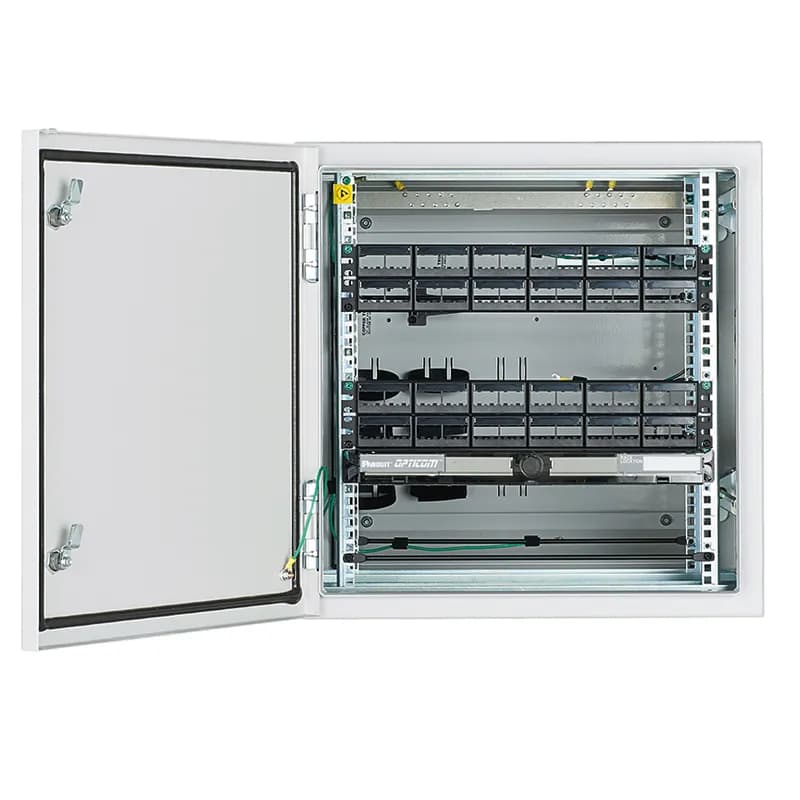

ZDF242430

The pre-configured industrial distribution frame (IDF) is 12 RU and is made for two 19" rack mount switches. The IDF is engineered to deploy and protect 19" rack mount switches on the factory floor. The IDF protects switches, both physically and thermally in harsh industrial environments. The IDF includes keys, cage nut rails, one fiber tray, two patch panels, cable management, ground whips/bar/cable, DIN rail mounting provision, and cable/fiber/power penetration recommendation template.

AWMR12

The PanZone 12RU Adjustable Depth Wall Mount Rack supports equipment mounting depths from 18", 21.5 , or 25" to provide greater flexibility with a single part number. Side rails offer slots that shall accept Tak-Ty or Bend Radius Control accessories for cable management. The construction method shall allow for single person installation. The equipment mounting rails shall be #12-24 threaded style mounting and include printed rack unit numbering from bottom up. Load rating of 150lbs, black.

Frequently Asked Questions

What is the voltage range for FSD77-10-D?

The FSD77-10-D operates on 24V DC with a range of 20-28V DC.

Is the FSD77-10-D compatible with other Panduit products?

Yes, the FSD77-10-D is compatible with various Panduit wiring ducts and cable management solutions.

What is the EMI protection capability?

The FSD77-10-D includes EMI noise shielding that provides up to 20dB reduction in noise, enhancing performance.

How do I install the FSD77-10-D?

Installation requires user-supplied DIN rail and fasteners, with specific mounting clips for corner wiring duct.

How does the FSD77-10-D improve space optimization?

The FSD77-10-D is designed to maximize space utilization within control panels, allowing for more components in a smaller footprint.

Can I use the FSD77-10-D in harsh environments?

Yes, the FSD77-10-D is designed for harsh environments, ensuring reliable performance under challenging conditions.

What safety precautions should I take?

Always follow recommended safety precautions to prevent harm and ensure a safe working environment.

What maintenance is required for the FSD77-10-D?

Regular inspection and maintenance are recommended to ensure optimal performance, but specific maintenance tasks are not detailed.

What are the temperature operating requirements?

The product is designed to operate within a specified temperature range, but the exact range is not provided in the document.

What is the standard package quantity for the FSD77-10-D?

The standard package quantity for the FSD77-10-D is not explicitly stated in the document.

How to Install the ZDF48-RA Industrial Distribution Frame

This guide provides step-by-step instructions for installing and setting up the ZDF48-RA Industrial Distribution Frame, including mounting, wiring, and initial configuration.

Estimated time: 1h

Tools needed:

Screwdriver, Drill, Wire strippers, Multimeter

Supplies needed:

Mounting screws, Terminal connectors, Tak-Ty cable ties

Unpack the IDF enclosure
Remove the IDF enclosure from its packaging and take out all miscellaneous items, including mounting hardware and installation guides.
Mount the IDF enclosure
Stand the IDF enclosure upright and secure it to the wall using the six mounting holes on the wall section, ensuring it is level and stable.
Install power outlets
Remove the outlet box cover, punch out the knockout, pull the power cable through the conduit into the outlet box, and terminate the power and ground according to local IEC code.
Route copper trunk cables
Pull the Copper-A trunk cable through the conduit into the enclosure, route it up the left side of the rear backplane, and secure it using Tak-Ty and D-rings.
Terminate copper cables
Bundle the cables in sets of four, feed them through the openings in the patch panel, and terminate them onto the copper jacks according to the installation instructions.
Install switches
Install the Copper Switch A in the designated RU, connect it to the patch panel, and ensure all connections are secure and properly routed.
Connect power cords
Attach the power cords for the switches to the UPS, ensuring they are secured with Tak-Ty to prevent movement.
Complete setup
Follow the specific switch installation instructions to finalize the setup and ensure all components are functioning correctly.
