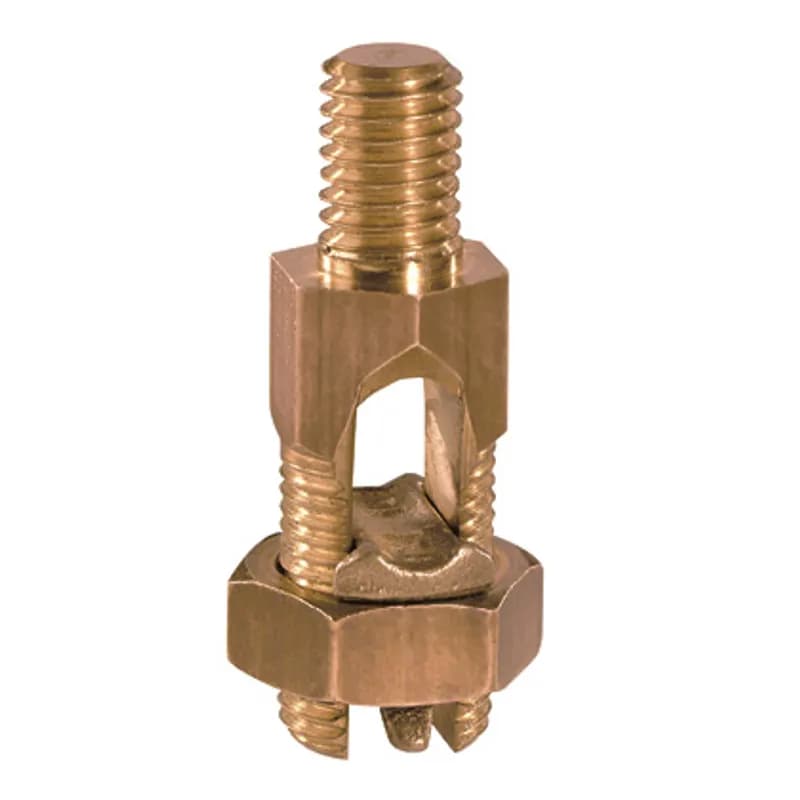

Panduit SP1-350L-12 - Bronze, service post connectors, 4/0 STR-350 kcmil, stud length 1.50",male, one cable, type SP1.

Panduit SP1-350L-12 Bronze, service post connectors, 4/0 STR-350 kcmil, stud length 1.50",male, one cable…

UPC: 074983716500


Documents & Media
Technical DrawingFull Engineering Drawing

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The Panduit SP1-350L-12 bronze service post connector is a male, single-conductor connector designed for high-current industrial applications. This premium-grade connector accommodates 4/0 STR-350 kcmil stranded copper cable, providing a secure termination point for service posts in electrical distribution systems. The 1.50-inch stud length ensures compatibility with standard service post configurations, while the bronze construction delivers long-term corrosion resistance and mechanical strength. Engineered for reliability, the SP1-350L-12 features a true hex design for the body and nut hex, ensuring correct fit with socket, box, or open-end wrenches for easy installation. The connector’s pressure bar design provides secure connections across a full range of conductor combinations, offering premium wire pull-out strength. This single-cable design simplifies installation, reducing labor time and potential points of failure compared to multi-cable configurations. Ideal for power distribution panels, switchgear, motor control centers, and renewable energy systems, the SP1-350L-12 is optimized for high ampacity and durability in demanding environments. The connector’s dimensions include a 5/8-11 UNC thread size, a 1.50-inch body hex, and a 2.00-inch overall length, making it a precise fit for standard service post applications.
  • Male, single-conductor bronze service post connector
  • Accommodates 4/0 STR-350 kcmil stranded copper cable
  • 1.50-inch stud length with 5/8-11 UNC thread size
  • True hex design for easy installation with standard tools
  • Pressure bar design ensures secure, high-strength connections

Specifications

Color
Bronze
Connection Type
Stud
Current Rating
350 A
Current Rating
350 kcmil
Length
2 in
Length
50.8 mm
Material
Bronze
Material
Copper
Series
SP1
Size
4/0 STR-350 kcmil
Size
1.50" stud length
Standard
cULus Listed - 467, DB Rated
Type
Grounding Connector
Package Dimensions (L x W x H)
10.6 IN x 4.3 IN x 4.4 IN
Package Dimensions (L x W x H)
26.924 cm x 10.922 cm x 11.176 cm
Package Weight (Imperial)
9.3000 L
Package Weight (Metric)
4.2185 kg
