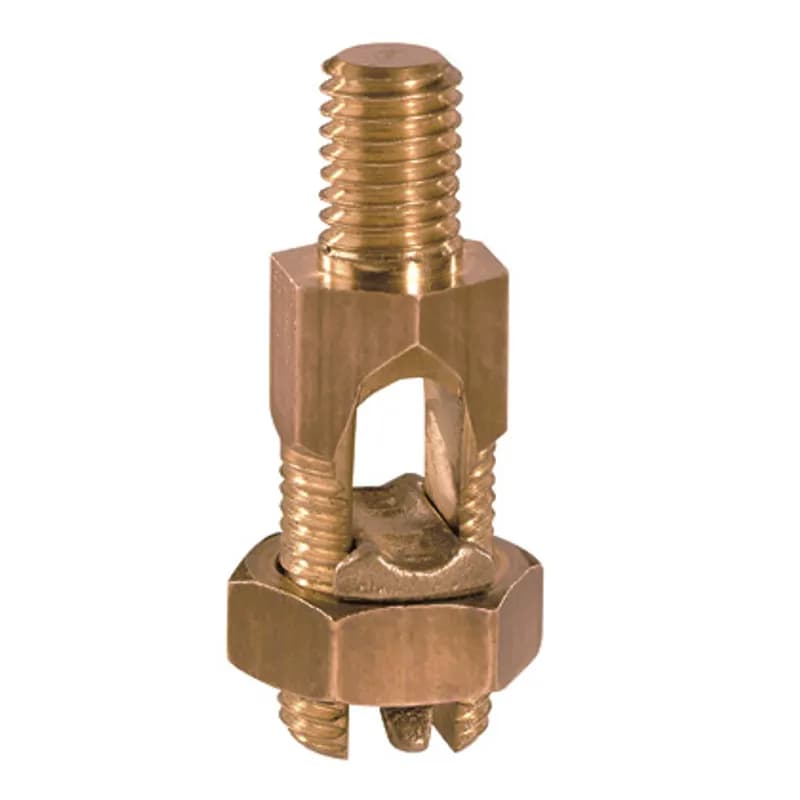

Panduit SP1-4/0-Q - Bronze, service post connectors, 3/0 SOL-4/0 STR, male, one cable, type SP1.

Panduit SP1-4/0-Q Bronze, service post connectors, 3/0 SOL-4/0 STR, male, one cable, type SP1.

UPC: 074983716470

Documents & Media
Technical DrawingFull Engineering Drawing

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The Panduit SP1-4/0-Q Bronze Service Post Connector is a male stud connector designed for secure, high-strength electrical connections in industrial power distribution systems. Constructed from durable bronze, this connector accommodates wire sizes from 3/0 AWG solid to 4/0 AWG stranded conductors, ensuring reliable termination for larger gauge wires. The SP1-4/0-Q features a 5/8-11 UNC threaded stud for compatibility with standard hardware, providing a robust mechanical and electrical interface. Its true hex design for both body and nut hex ensures proper fit with socket, box, or open-end wrenches, simplifying installation and maintenance. The connector's optimized dimensions—1.38 inches in body hex, 1.00 inches in nut hex, and 1.69 inches in overall length—enable efficient integration into control panels, busbars, and transformer applications.
  • Male stud connector for 3/0 AWG solid to 4/0 AWG stranded conductors
  • 5/8-11 UNC threaded stud for standard hardware compatibility
  • True hex design for body and nut hex for easy installation with common tools
  • Single-conductor design for tapping busbars or grounding applications
  • Optimized dimensions: 1.38" body hex, 1.00" nut hex, 1.69" overall length

Specifications

Length
1.69 in
Length
42.926 mm
Material
Copper
Standard
cULus Listed - 467, DB Rated
Type
Grounding Connector
Package Dimensions (L x W x H)
10.7 IN x 6.9 IN x 4.3 IN
Package Dimensions (L x W x H)
27.178 cm x 17.526 cm x 10.922 cm
Package Weight (Imperial)
13.3000 L
Package Weight (Metric)
6.0329 kg
