Hammond Manufacturing GRDKIT01 - Ground Wire Kit (Qty 2 Wires) - 12"

Hammond Manufacturing GRDKIT01 Ground Wire Kit (Qty 2 Wires) - 12"

UPC: 623980612010

Documents & Media
Technical DrawingSpecification SheetWarranty

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The Hammond Manufacturing GRDKIT01 Ground Wire Kit provides a reliable grounding solution for industrial electrical systems. This kit includes two 12-inch wires with dual L16 type aluminum lugs at each end, ensuring secure connections in demanding environments. The aluminum construction and corrosion-resistant plating or paint enhance durability, making it suitable for use in electrical panels, machinery, and other industrial equipment where safety and operational integrity are critical. Each wire in the GRDKIT01 accepts conductor sizes ranging from 1/0 to 14 AWG, providing flexibility for various grounding applications. The L16 lugs are designed for compatibility with standard grounding terminals, ensuring a tight and stable connection. The kit is packaged individually for convenience, streamlining inventory and procurement processes. Ideal for grounding applications in industrial settings, the GRDKIT01 is a cost-effective solution that meets the need for reliable electrical safety. Whether used in new installations or maintenance projects, this ground wire kit delivers consistent performance and long-term reliability.
  • Kit includes two 12-inch wires with dual L16 aluminum lugs
  • Accepts conductor sizes from 1/0 to 14 AWG
  • Aluminum construction with corrosion-resistant plating or paint
  • Designed for secure grounding in electrical panels and machinery
  • Individually packaged for convenience

Specifications

Brand Name
Hammond Mfg.
Size
12"
Sub Brand
GRDKIT Series
Package Dimensions (L x W x H)
1 IN x 1 IN x 1 IN
Package Dimensions (L x W x H)
2.54 cm x 2.54 cm x 2.54 cm
Package Weight (Imperial)
0.500 L
Package Weight (Metric)
0.227 kg
The NSI FS1-33-8N-18 Flexible Braided Jumper Grounding Strap is made from copper with a tin-plated finish, is 18" long and has a maximum amperage of 330A indoors or 400A in outdoor applications. Use flexible braided grounding straps in any application involving expansion, contraction, vibration or operational movement of the fault-current grounding path, where rigid grounding solutions may fall short. Ferrules are made from tin-plated pure electrolytic copper and the standard mounting holes are NEMA-spaced holes for easy installation. Stock products you can rely on—stock NSI.

FS1-33-8N-18

The NSI FS1-33-8N-18 Flexible Braided Jumper Grounding Strap is made from copper with a tin-plated finish, is 18" long and has a maximum amperage of 330A indoors or 400A in outdoor applications. Use flexible braided grounding straps in any application involving expansion, contraction, vibration or operational movement of the fault-current grounding path, where rigid grounding solutions may fall short. Ferrules are made from tin-plated pure electrolytic copper and the standard mounting holes are NEMA-spaced holes for easy installation. Stock products you can rely on—stock NSI.
Bronze Ground Clamp Connector, 3-Wire, Parallel to Pipe, 4 AWG SOL - 250 kcmil, 3/4" Pipe Size

GTW050-250-1

Bronze Ground Clamp Connector, 3-Wire, Parallel to Pipe, 4 AWG SOL - 250 kcmil, 3/4" Pipe Size

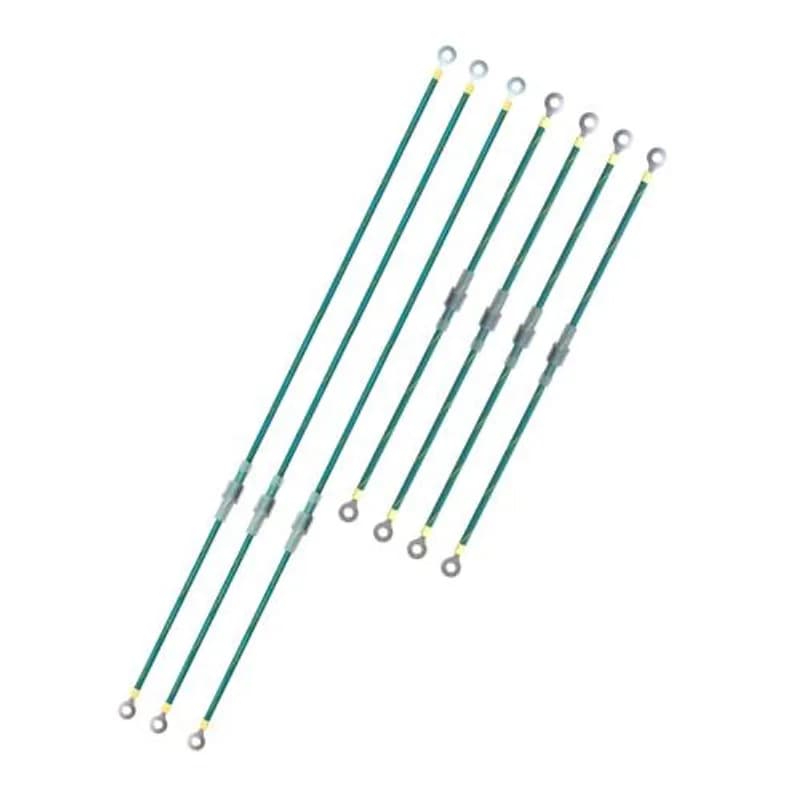

H1 Cabinet Ground Kit

H1GRDKIT

H1 Cabinet Ground Kit
Ground Wire Kit (Qty 6 Wires) - 16"

GRDKIT02

Ground Wire Kit (Qty 6 Wires) - 16"
Rack Cabinet Ground Kit

BWK6A12

Rack Cabinet Ground Kit
The NSI GLC-4DBP Direct Burial Tin-Plated Copper Ground Connector makes quick work of grounding copper conductors in a variety of outdoor applications. The tin-plated copper body and stainless-steel screws are cULus Listed for direct burial in both earth and concrete when used with copper wiring. This connector’s lay-in lug design allows for greater flexibility when securing wires and accommodates conductors in the range of 4 to 14 AWG. The connector has a temperature rating of 90 °C and a voltage rating of 600V. cULus Listed 467 for grounding and bonding. UL A Listed 486 wire connector. Stock products you can rely on—stock NSI.

GLC-4DBP

The NSI GLC-4DBP Direct Burial Tin-Plated Copper Ground Connector makes quick work of grounding copper conductors in a variety of outdoor applications. The tin-plated copper body and stainless-steel screws are cULus Listed for direct burial in both earth and concrete when used with copper wiring. This connector’s lay-in lug design allows for greater flexibility when securing wires and accommodates conductors in the range of 4 to 14 AWG. The connector has a temperature rating of 90 °C and a voltage rating of 600V. cULus Listed 467 for grounding and bonding. UL A Listed 486 wire connector. Stock products you can rely on—stock NSI.
The NSI G-1-SDBR Heavy Duty Bronze Ground Clamp for Direct Burial grips on pipes between 1/2" to 1" in diameter and rebar from 3/8" to 1" in diameter for quick and easy wire grounding. Suitable for direct burial, this ground clamp comes with 304 stainless steel screws and a cast bronze clamp body. These economical, high-quality metals provide durable performance in a range of applications. cULus Listed 467 for Grounding and Bonding. Stock products you can rely on—stock NSI.

G-1-SDBR

The NSI G-1-SDBR Heavy Duty Bronze Ground Clamp for Direct Burial grips on pipes between 1/2" to 1" in diameter and rebar from 3/8" to 1" in diameter for quick and easy wire grounding. Suitable for direct burial, this ground clamp comes with 304 stainless steel screws and a cast bronze clamp body. These economical, high-quality metals provide durable performance in a range of applications. cULus Listed 467 for Grounding and Bonding. Stock products you can rely on—stock NSI.
The NSI GLC-4DB Direct Burial Copper Ground Connector makes quick work of grounding copper conductors in a variety of outdoor applications. The copper body and stainless-steel screws are cULus Listed for direct burial in both earth and concrete when used with copper wiring. This connector’s lay-in lug design allows for greater flexibility when securing wires and accommodates conductors in the range of 4 to 14 AWG. The connector has a temperature rating of 90 °C and a voltage rating of 600V. cULus Listed 467 for grounding and bonding. UL A Listed 486 wire connector. Stock products you can rely on—stock NSI.

GLC-4DB

The NSI GLC-4DB Direct Burial Copper Ground Connector makes quick work of grounding copper conductors in a variety of outdoor applications. The copper body and stainless-steel screws are cULus Listed for direct burial in both earth and concrete when used with copper wiring. This connector’s lay-in lug design allows for greater flexibility when securing wires and accommodates conductors in the range of 4 to 14 AWG. The connector has a temperature rating of 90 °C and a voltage rating of 600V. cULus Listed 467 for grounding and bonding. UL A Listed 486 wire connector. Stock products you can rely on—stock NSI.

Frequently Asked Questions

What is the cable length for the GRDKIT01?

The GRDKIT01 has a cable length of 12.00 inches.

What type of wire gauge is used in the GRDKIT01?

The GRDKIT01 uses 10 AWG wire gauge.

What mounting hardware is included with the GRDKIT01?

The GRDKIT01 includes mounting hardware for both 1/4-20 or 10-32 ground studs.

Does the GRDKIT01 come with quick disconnecting terminals?

No, the GRDKIT01 does not include quick disconnecting terminals.

Is the GRDKIT01 TAA-compliant?

Yes, the GRDKIT01 is TAA-compliant for GSA Schedule purchases.

Is the GRDKIT01 RoHS Compliant?

Yes, the GRDKIT01 is RoHS Compliant.

Where is the GRDKIT01 manufactured?

The GRDKIT01 is manufactured in North America.

What kind of terminals are included with the GRDKIT01?

The GRDKIT01 includes compress lugs on both ends and has a terminal hole diameter of 0.256 inches.

What is the bolt hole size for the GRDKIT01?

The bolt hole size for the GRDKIT01 is 0.26 inches.

What is the cable color and type for the GRDKIT01?

The GRDKIT01 features a green cable with a yellow stripe, identified as Type 10 AWG TEW/MTW tinned Cable.
