Contact for Pricing
Minimum Qty: 6
Multiplier: 6
*Contact for lower quantities*
Overview

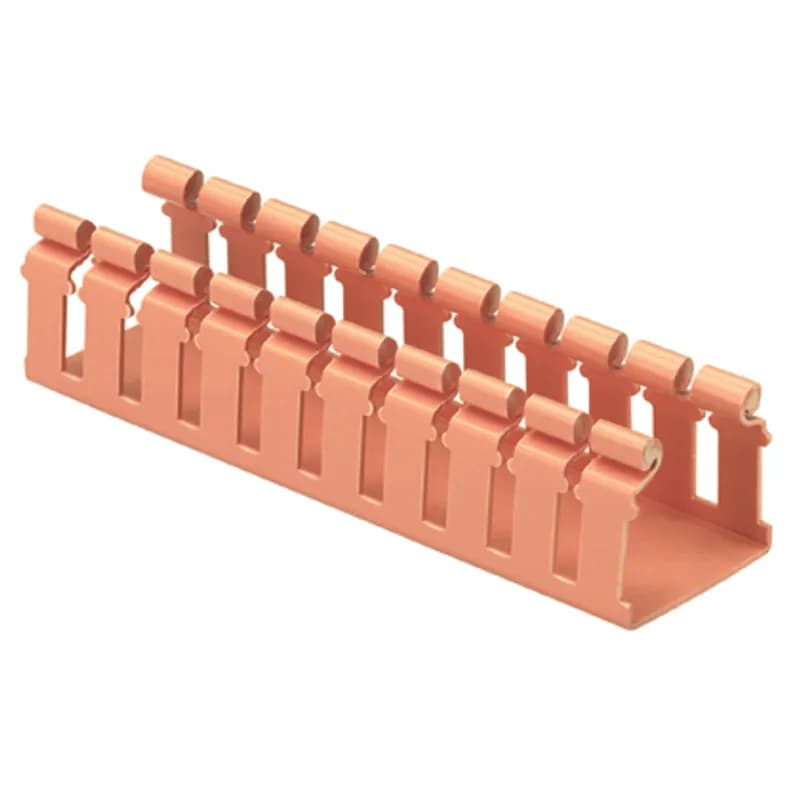

- 2" x 2" x 6 ft Panduct Type H Wide Slot Wiring Duct
- Lead-free PVC construction with UL 94 V-0 flammability rating
- UL Recognized for continuous use up to 122°F (50°C)
- Designed for vertical cable routing to equipment racks
- Accepts hinged cover HC2OR6; base and cover sold separately
Specifications
Application | Segregate, Route, and Protect Fiber Optic and High Performance Copper Cabling |
Color | Orange |
Length | NA In. |
Material Quality | PVC |
Slot Style | 2 x 2 FiberRunner Channel |
Standard | UL Listed to 2024A,GR-63-CORE,CE Compliant |
Type | Fiber Routing Channel |
Width | 2.17 in |
Width | 55.118 mm |
Wire Size | 1.6mm Fiber = 655 2mm Fiber = 419 3mm Fiber = 186 5.2mm Fiber = 62 6.35mm CAT6 = 42 7.57mm CAT6A = 29 |
Package Dimensions (L x W x H) | 72 IN x 2 IN x 2 IN |
Package Weight (Imperial) | 1.9 lbs |
Similar Products
Frequently Asked Questions
What is the minimum bend radius for cables?
All fittings maintain a minimum bend radius of 2 inches to protect fiber optic cabling.
What is the installation time for QuikLock Couplers?
QuikLock Couplers take less than five seconds to make a mechanically secure connection.
How are the channel and fittings assembled?
Channel and fittings are assembled using pre-assembled QuikLock™ Couplers, requiring no tools.
How does the system protect against physical damage?
The robust system of channel, covers, and fittings protects cables from physical damage.
What materials are used in the FiberRunner 2x2 system?
The channel is made of rigid PVC, and the fittings are made of ABS.
Is the FiberRunner system UL listed?
Yes, it is UL Listed to 2024A Optical Fiber Cable Routing Assemblies.
What types of cables can the system accommodate?
The system can accommodate fiber optic ribbons and high-performance copper cables, including Category 6 and 6A.
What applications is the FiberRunner system suited for?
It is suited for data centers and Telco Central Offices for routing fiber optic jumper cables.
What colors are available for the FiberRunner system?
The FiberRunner system is available in yellow and black colors.
