Contact for Pricing
Minimum Qty: 120
Multiplier: 6
*Contact for lower quantities*
Overview

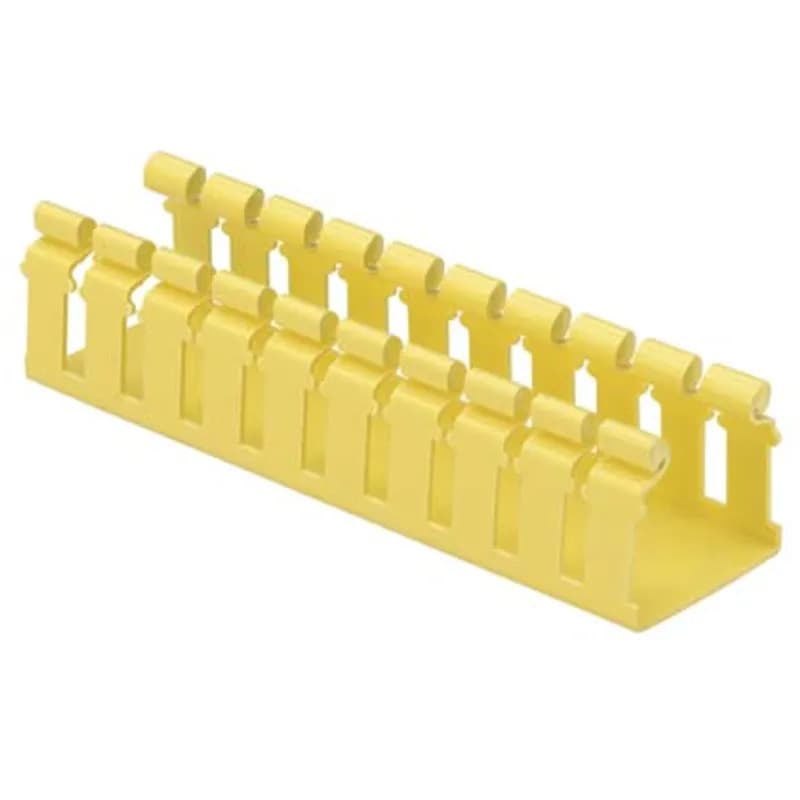

- Vertical cable management for equipment racks
- 2" nominal width x 2" nominal height x 6 ft. length
- Lead-free PVC construction with UL 94 V-0 flammability rating
- CE compliant design with metric sizing
- Base only; accepts hinged cover HC2YL6 (sold separately)
Specifications
Application | Segregate, Route, and Protect Fiber Optic and High Performance Copper Cabling |
Color | Yellow |
Length | NA In. |
Material Quality | PVC |
Slot Style | 2 x 2 FiberRunner Channel |
Standard | UL Listed to 2024A,GR-63-CORE,CE Compliant |
Type | Fiber Routing Channel |
Width | 2.17 in |
Width | 55.118 mm |
Wire Size | 1.6mm Fiber = 655 2mm Fiber = 419 3mm Fiber = 186 5.2mm Fiber = 62 6.35mm CAT6 = 42 7.57mm CAT6A = 29 |
Package Dimensions (L x W x H) | 72 IN x 2 IN x 2 IN |
Package Weight (Imperial) | 1.92 lbs |
Similar Products
Frequently Asked Questions
What is the minimum bend radius for cables?
All fittings maintain a minimum bend radius of 2 inches to protect fiber optic cabling.
What is the installation time for QuikLock Couplers?
QuikLock Couplers take less than five seconds to make a mechanically secure connection.
How are the channel and fittings assembled?
Channel and fittings are assembled using pre-assembled QuikLock™ Couplers, requiring no tools.
What materials are used in the FiberRunner 2x2 system?
The channel is made of rigid PVC, and the fittings are made of ABS.
Is the FiberRunner system UL listed?
Yes, it is UL Listed to 2024A Optical Fiber Cable Routing Assemblies.
How does the system protect against physical damage?
The robust system of channel, covers, and fittings protects cables from physical damage.
What types of cables can the system accommodate?
The system can accommodate fiber optic ribbons and high-performance copper cables, including Category 6 and 6A.
What applications is the FiberRunner system suited for?
It is suited for data centers and Telco Central Offices for routing fiber optic jumper cables.
What colors are available for the FiberRunner system?
The FiberRunner system is available in yellow and black colors.
Frequently Asked Questions about Panduit
What environmental ratings do Panduit products have?
Panduit products feature comprehensive environmental ratings across multiple standards, including UL 508A Type 1, 2, 3, 4, 4X, 12, and 13; CSA Type 1, 2, 3, 4, 4X, 12, and 13; and NEMA Type 1, 2, 3, 4, 4X, 12, and 13. They meet IEC 60529 IP66 rating, providing robust protection against dust, water, and corrosion in both indoor and outdoor environments, with operating temperatures ranging from -40°C to 130°C.
What certifications and standards do Panduit products comply with?
Panduit products are certified to multiple critical industry standards, including UL (Underwriters Laboratories) in the USA and Canada, CSA (Canadian Standard Association), EN IEC 61386, LVD 2006/G5/EC, and ARRA standards. Our products meet rigorous certifications for electrical safety, environmental compliance (WEEE and RoHS), and are designed to perform in extreme temperatures ranging from -55°C to 105°C, making them suitable for demanding industrial environments.
What industries and applications are Panduit products used for?
Panduit products are engineered for critical applications across multiple industries, including commercial construction, food and beverage, oil and gas, renewable energy, transportation, and safety-critical environments. Their solutions span electrical infrastructure, wire management, cable ties, power connectors, and safety systems designed to withstand extreme conditions like high vibration, temperature variations, UV exposure, and corrosive agents. Key industries include solar and wind energy, aerospace, heavy trucking, military, commercial transportation, and industrial manufacturing.
What are the main product lines offered by Panduit?
Panduit offers a comprehensive range of electrical infrastructure products including power connectors, cable ties, grounding connectors, identification products, safety solutions, terminals, cable cleats, wiring duct, and cable tie accessories. These products are engineered for industrial environments across multiple sectors like commercial construction, food and beverage, oil and gas, renewable energy, transportation, and safety applications.
What are the key features of Panduit products?
Panduit products are engineered for robust performance in heavy-duty industrial environments, featuring a comprehensive range of solutions including cable ties, power connectors, terminals, and identification products. Key features include proven quality performance, subject matter expertise, and customer-driven innovation across multiple industrial sectors such as commercial construction, food and beverage, oil and gas, renewable energy, transportation, and safety applications. The product line is designed to maximize productivity, reliability, and safety while meeting stringent industry standards.
What is Panduit's warranty policy?
Panduit provides a comprehensive Limited Product Warranty that can be fully reviewed on their official website at www.panduit.com/warranty. All Panduit products are subject to the terms, conditions, and limitations of this current warranty. Customers are advised to review the specific warranty details for their particular product, as Panduit requires buyers to determine product suitability for their intended use and assumes all associated risks.
What technical support does Panduit offer?
Panduit offers comprehensive technical support through their dedicated customer service team, accessible via phone at 1-800-777-3300. They provide expert assistance for their full range of industrial infrastructure products, including cable ties, power connectors, terminals, and identification solutions. Customers can also access additional technical resources and product information through their website at www.panduit.com.
What accessories are available for Panduit products?
Panduit offers a wide range of accessories across multiple product lines, including cable ties, cable tie accessories, cable tie tools, identification products, cable cleats, grounding connectors, and VeriSafe accessories like the VeriSafe Network Module and Insulation Piercing Connectors. For a comprehensive view of all available accessories, customers are recommended to visit www.panduit.com for the full product catalog.
How are Panduit products typically installed?
Panduit products are engineered for comprehensive installation across industrial environments, utilizing specialized tools and techniques for precise mounting. Installation methods vary by product line - from cable ties and power connectors to terminals and identification solutions - but all are designed for robust performance in heavy-duty settings. Technicians typically use Panduit's dedicated installation tools and follow manufacturer guidelines available at www.panduit.com to ensure proper fitting and maximum infrastructure reliability.
