ABB Installation Products S289JLN 2 x 3 Inches Duct Spacer, High Impact Polystyrene Snap-Loc Intermediate Spacer For Use…
UPC: 034481004479
Documents & Media
Contact for Pricing
Minimum Qty: 80
Multiplier: 80
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 2 x 3 inch dimensions (5.500 x 1.250 inches) for common nonmetallic duct sizes
- High-impact polystyrene construction for durability and impact resistance
- Snap-Loc design enables tool-free, secure attachment to duct systems
- Maintains dimensional stability for proper alignment and structural integrity
- Compatible with panel mounting, conduit support, and intermediate spacing applications
Specifications
Application | Concrete-Encased, Direct-Burial Note: Purchaser is responsible for installation design and determination of the appropriateness of the product for any specific application |
Color | Black |
Length | 5.5 inches |
Material | Non-Metallic |
Material Quality | Polystyrene |
Size | 2 x 3 |
Size | 2 x 3 inches |
Special Features | Snap-Loc Spacers provide a side dovetail rail-and-groove design enabling side-by-side interchangeability of conduit spacer sizes while maintaining horizontal stability |
Special Features | Side dovetail rail and groove design allows for side by side interchangeability of conduit spacer sizes while maintaining horizontal stability. Locking keyways incorporated into intermediate spacers eliminate the need for costly top spacers in each size. They provide for the use of a beaded strap that helps secure the top section of conduit. 1 and 2 inches Snap Loc reducers allow fixturing of 1 or 2 inches conduit inside larger spacers. The Snap Loc rebar holder helps provide stabilization on large banks of spacers |
Type | Snap-Loc Spacers & Accessories |
Type | Intermediate Spacer |
Width | 5.38 inches |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.240 L |
Package Weight (Metric) | 0.109 kg |
S289LJN
3 x 2 Inches Duct Spacer, High Impact Polystyrene Snap-Loc Intermediate Spacer For Use With Nonmetallic Ducts
PE2V0636TC
Seals the top of a 6" PE2V for containment, improving airflow management and thermal efficiency. Top caps are reversable to be compatible with either 60% forward facing or 60% rear facing. Includes brushed pass through for sealed cable routing. It features a fixed 36" depth to match the depth of a 36" deep R4P36 or an AR4P set at a 30" or 36" depth. Designed to be used with AR4P or R4P top caps and PR2V/PE2V containment end panels to create a thermally contained solution
S289NLN
4 x 3 Inches Duct Spacer, High Impact Polystyrene Snap-Loc Intermediate Spacer For Use With Nonmetallic Ducts

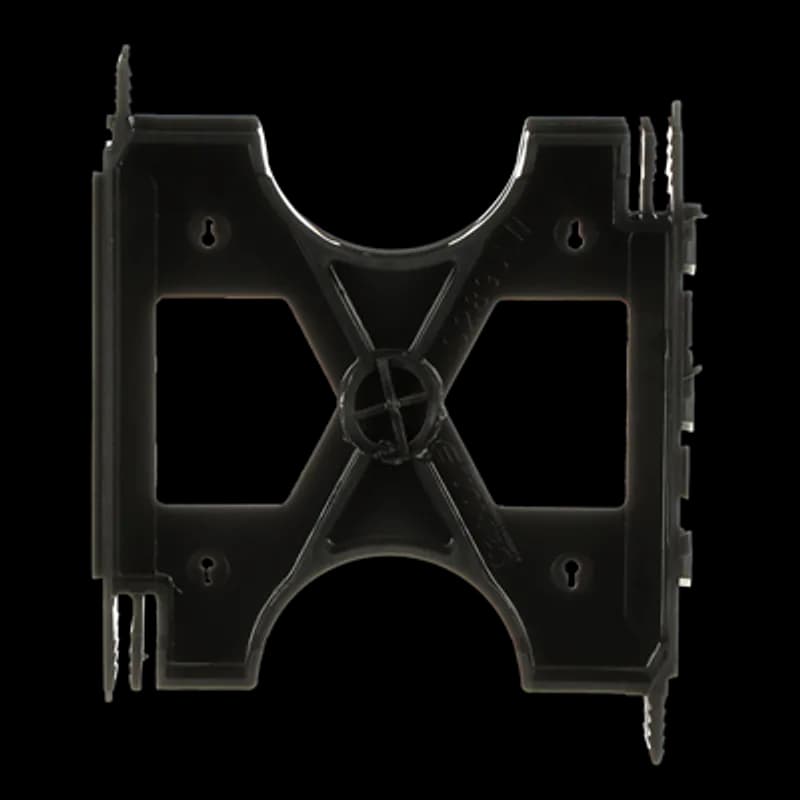

S288JLN
2 x 3 Inches Duct Spacer, High Impact Polystyrene Snap-Loc Base Spacer For Use With Nonmetallic Ducts

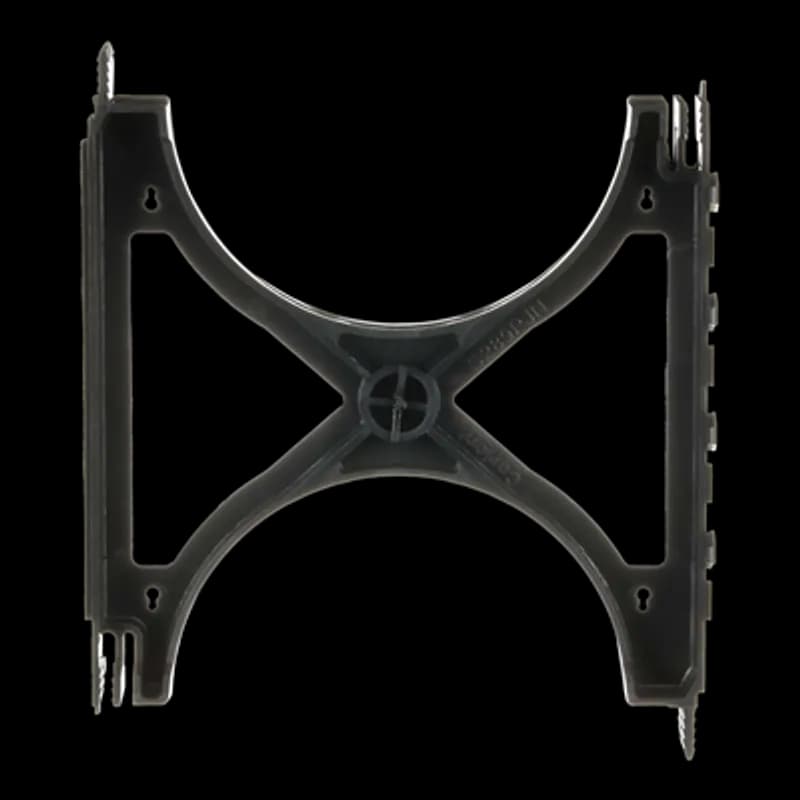

S289PJN
5 x 2 Inches Duct Spacer, High Impact Polystyrene Snap-Loc Intermediate Spacer For Use With Nonmetallic Ducts
S288JHN
2 x 1-1/2 Inches Duct Spacer, High Impact Polystyrene Snap-Loc Base Spacer For Use With Nonmetallic Ducts
S289PHN
5 x 1-1/2 Inches Duct Spacer, High Impact Polystyrene Snap-Loc Intermediate Spacer For Use With Nonmetallic DuctsFrequently Asked Questions
What are the installation requirements for this product?
The product must be installed in accordance with applicable national and local electrical codes. The purchaser is responsible for installation design.
What type of ducts are Snap-Loc® spacers used with?
Snap-Loc® duct spacers, including the S289JLN, are specifically for use with non-metallic ducts.
What are the dimensions of the S289JLN intermediate spacer?
The S289JLN intermediate spacer has dimensions of A=5.500 inches, B=1.250 inches, and C=5.38 inches.
What are the main applications for Snap-Loc® duct spacers?
Snap-Loc® duct spacers are designed for concrete-encased and direct-burial applications. They help provide stability and consistent separation for duct materials.
What material is the S289JLN spacer made from?
The S289JLN duct spacer is made from High Impact Polystyrene.
What is the S289JLN product?
The S289JLN is a Snap-Loc® intermediate duct spacer designed for use with non-metallic ducts. It provides stability, consistent separation, and stress relief for ducts in concrete-encased and direct-bury applications.
What are the installation requirements for this product?
The product must be installed in accordance with applicable national and local electrical codes. The purchaser is responsible for installation design.
What type of ducts are Snap-Loc® spacers used with?
Snap-Loc® duct spacers, including the S289JLN, are specifically for use with non-metallic ducts.
What are the dimensions of the S289JLN intermediate spacer?
The S289JLN intermediate spacer has dimensions of A=5.500 inches, B=1.250 inches, and C=5.38 inches.
What is the S289JLN product?
The S289JLN is a Snap-Loc® intermediate duct spacer designed for use with non-metallic ducts. It provides stability, consistent separation, and stress relief for ducts in concrete-encased and direct-bury applications.
