Overview
- Designed for 12 AWG (4.0 mm) conductors with 0.47-inch (12 mm) pin lengths
- Compatible with Panduit CP-992 crimping tool
- UL 486C and CSA certified for up to 600V applications
- Continuously molded design ensures consistent, reliable terminations
- Maximum insulation temperature of 221°F (105°C) with UL 94 HB flammability rating
Specifications
Application | CP-992 Crimp/Press Tool and Select Loose Piece Ferrules |
Type | Tool Component Kit |
Wire Range* | 12 AWG |
Package Dimensions (L x W x H) | 11.5 IN x 9.8 IN x 3 IN |
Package Weight (Imperial) | 4.2 lbs |

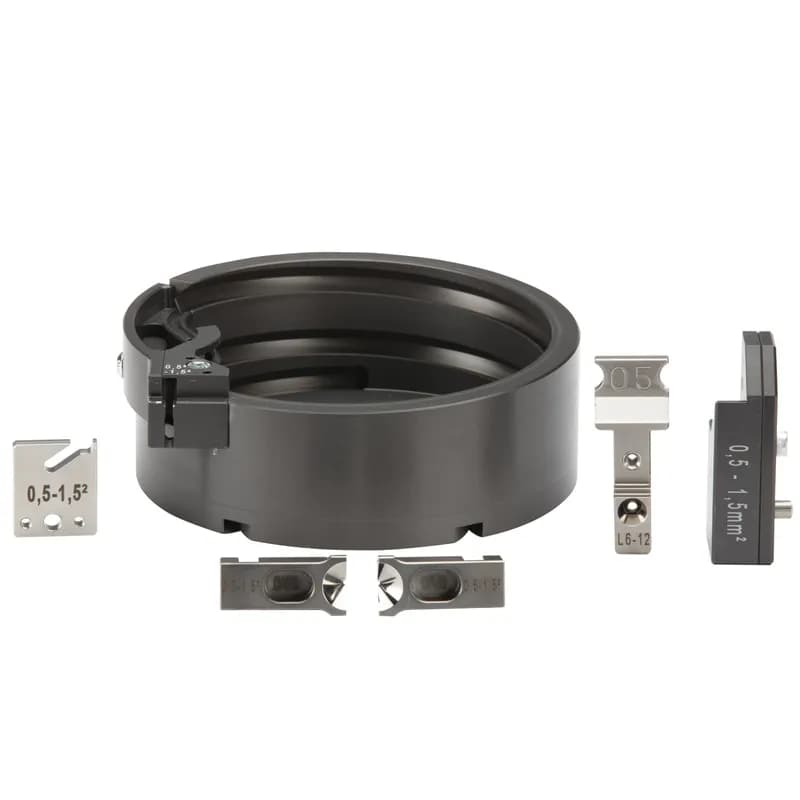

CP-991-KIT4
The CP-991-KIT4 is a component kit for the CP-991 Tool that extends the capability to install 12 AWG (4.0 mm ) single-wire ferrules with 0.39 (10mm) pin lengths.Frequently Asked Questions
Does the CP-992 have a cycle counter?
Yes, the CP-992 system includes a digital LCD display cycle counter with a reset button for batch quantity counting.
What applications is the CP-992 tool best for?
The CP-992 tool's performance is maximized in high volume wire harness and control panel applications.
What industry standards does the CP-992 meet?
Ferrules and crimps produced with the CP-992 system meet industry standards including UL486F, IEC 60999-1, and IPC/WHMA-A-620.
How fast is the CP-992 ferrule crimping process?
The CP-992 system strips a single insulated conductor and applies a loose piece ferrule within 1.3 seconds. This automated action is up to 6X faster than manual crimping.
What wire sizes can the CP-992 system crimp?
The CP-992 system crimps 12 – 8 AWG (4.0mm² - 10mm²) DIN compliant ferrules. It handles ferrules with 10 -12mm length pins.
How fast is the CP-992 ferrule crimping process?
The CP-992 system strips a single insulated conductor and applies a loose piece ferrule within 1.3 seconds. This automated action is up to 6X faster than manual crimping.
Does the CP-992 have a cycle counter?
Yes, the CP-992 system includes a digital LCD display cycle counter with a reset button for batch quantity counting.
What applications is the CP-992 tool best for?
The CP-992 tool's performance is maximized in high volume wire harness and control panel applications.
What industry standards does the CP-992 meet?
Ferrules and crimps produced with the CP-992 system meet industry standards including UL486F, IEC 60999-1, and IPC/WHMA-A-620.
What wire sizes can the CP-992 system crimp?
The CP-992 system crimps 12 – 8 AWG (4.0mm² - 10mm²) DIN compliant ferrules. It handles ferrules with 10 -12mm length pins.
How to Install the CP-992-KIT4 Controller
This guide provides step-by-step instructions for installing and configuring the CP-992-KIT4 controller, including wiring and calibration procedures.
Estimated time: 1h
Tools needed:
Screwdriver, Wire strippers, Multimeter
Supplies needed:
Mounting screws, Terminal connectors
- Select the installation site
Choose a level and horizontal surface for the CP-992 installation, avoiding humid, dusty, or extreme temperature locations.
- Mount the controller
Secure the CP-992 controller to the chosen surface using the provided mounting screws, ensuring it is level and stable.
- Connect the power supply
Connect the main power cable to the CP-992 controller, ensuring the connection is secure and the power is off during installation.
- Connect the compressed air supply
Attach the compressed air line to the CP-992, ensuring it is properly connected and the air pressure is set between 5 to 6 bar.
- Configure the control panel
Power on the CP-992 and configure the control panel settings according to the desired operation mode (strip only or strip and crimp).
- Calibrate the stripping blade
Open the front door, disconnect power, and adjust the stripping blade depth as necessary for the wire gauge being used.
- Test the operation
Run a test cycle with a sample wire to ensure the CP-992 is functioning correctly and adjust settings as needed.
