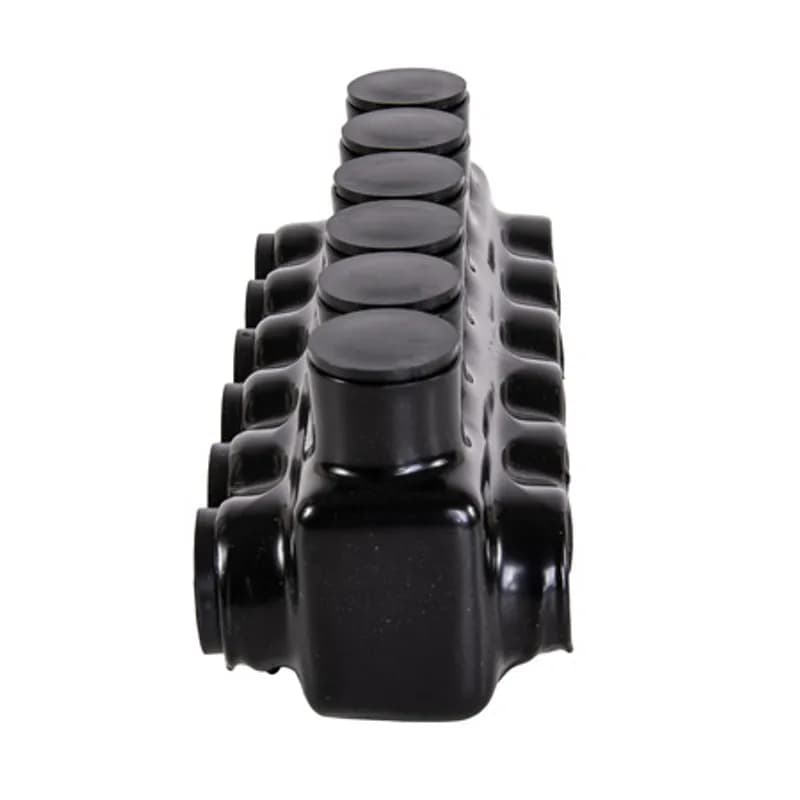

NSI Industries IPLD350-6 - The Polaris IPLD350-6 Multi-Tap Dual-Sided Entry Black Connector features 6 ports sized for 350 MCM - 6 AWG wires. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
NSI Industries

IPLD350-6

UPC: 662381924049

Documents & Media
BrochureInstallation Instructions

Contact for Pricing

Minimum Qty: 3

Multiplier: 3

*Contact for lower quantities*

Overview

The Polaris IPLD350-6 6-Port Dual-Sided Connector provides the simplest solution for forming a secure connection between up to six conductors in applications including cable trays, panel boards, ducts, raceways or troughs. Sized for 350 MCM - 6 AWG wires and rated for 600V, this pre-insulated connector comes pre-loaded with an oxide inhibitor and installs faster than traditional uninsulated connector options using just a hex key and torque wrench. The aluminum alloy body is wrapped in high-dielectric strength plastisol insulation, which is ergonomically molded to offer a comfortable grip, in addition to being resistant to abrasion, chemicals and UV rays. All-in-one design saves time and supplies on each job by eliminating the need for cover and taping; simply brush the conductors clean, strip back their insulation, insert one conductor into each port and secure the covered pressure screws. The IPL350-6 connector is rated for a 90 degrees Celsius operating temperature and dual rated for use with copper and/or aluminum cables, up to max AMP ratings of 985 and 770 respectively. These connectors are even UL-listed for parallel configurations, allowing you to tackle larger jobs safely. Polaris: the original pre-insulated connector and still the brand most asked for by name.
  • Dual-Sided Wire Entry: Form secure connections between 6 conductors quickly using the double-side entry ports sized for wires between 350 MCM and 6 AWG
  • Ergonomic Design: Rounded corners and a smooth exterior finish over the abrasion-resistant plastisol insulation make Polaris connectors comfortable to grip
  • Removable Plugs: Each port and set screw comes with a secure plug to prevent debris from entering the insulated connector
  • Pre-filled Oxide Inhibitor: All 6 dual-sided entry (DSE) ports come pre-filled with an oxide inhibitor gel to prevent corrosion and provide low-contact resistance
  • Parallel Rated: This connector is specifically designed and rated for parallel installation, providing a safe and secure way to handle larger projects

Specifications

Aluminum Conductor Max AMP
770 Amp
Aluminum Conductor Note
Dual Rated for use with copper and or aluminum cables. Not for use with fine-stranded or flexible cables, Parallel Rated to provide safety and NEC complaince when installing parallel runs.
Application
Wire Termination
Color
Black
Copper Conductor Max
985 Amp
Environmental Conditions
90 C
Finish
Plastisol Insulated
Housing Material
Aluminum
Housing Material
Aluminium
Material
Aluminum
Number Of Conductors
6
Number Of Poles
1
Size
L=6.670 - W=2.410 - H=2.610 IN
Special Features
(6) 350 MCM-6 AWG - Dual Rated
Standard
UL 486A/B
Temperature Rating
90 C
Temperature Rating, Maximum
194 F
Temperature Rating, Maximum
90 C
Temperature Rating, Minimum
194 F
Temperature Rating, Minimum
90 C
Type
Double Sided Entry
Voltage Rating
600 V
Warranty
1 Year
Wire Size
350 MCM-6 AWG
Wire Type
Class B & C
Wire/Cable Class
Class B, Class C
Package Dimensions (L x W x H)
6.67 IN x 2.41 IN x 2.61 IN
Package Dimensions (L x W x H)
16.9418 cm x 6.1214 cm x 6.6294 cm
Package Weight (Imperial)
1.140 L
Package Weight (Metric)
0.517 kg

Similar Products

IPLD350-6B

CU Wire Size: 350 MCM - 10 AWG

AL Wire Size: 350 MCM - 10 AWG

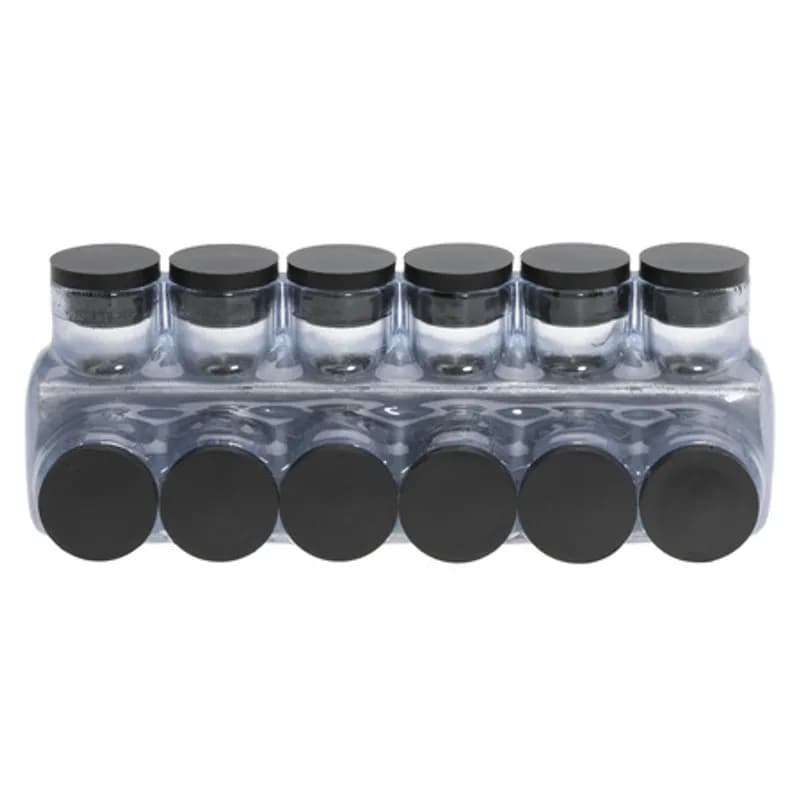

IPLD350-6C

Color: Clear

Enclosure: Clear Plastisol

Environmental Conditions: Dry Location Only

IPLD350-6CB

CU Wire Size: 350 MCM - 10 AWG

AL Wire Size: 350 MCM - 10 AWG

IPLD350-10

Number Of Conductors: 10

Special Features: (10) 350 MCM-6 AWG - Dual Rated

Size: L=10.870 - W=2.410 - H=2.610 IN

IPLD350-12

Number Of Conductors: 12

Special Features: (12) 350 MCM-6 AWG - Dual Rated

Size: L=12.970 - W=2.410 - H=2.610 IN

IPLD350-14

You May Also Be Interested In

The Polaris IPLD350-6B Multi-Tap Dual-Sided Entry Black Connector features 6 ports sized for 350 MCM - 6 AWG wires. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies, and comes packaged in a clear plastic bag with a mounting hole for hanging in retail displays. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.

IPLD350-6B

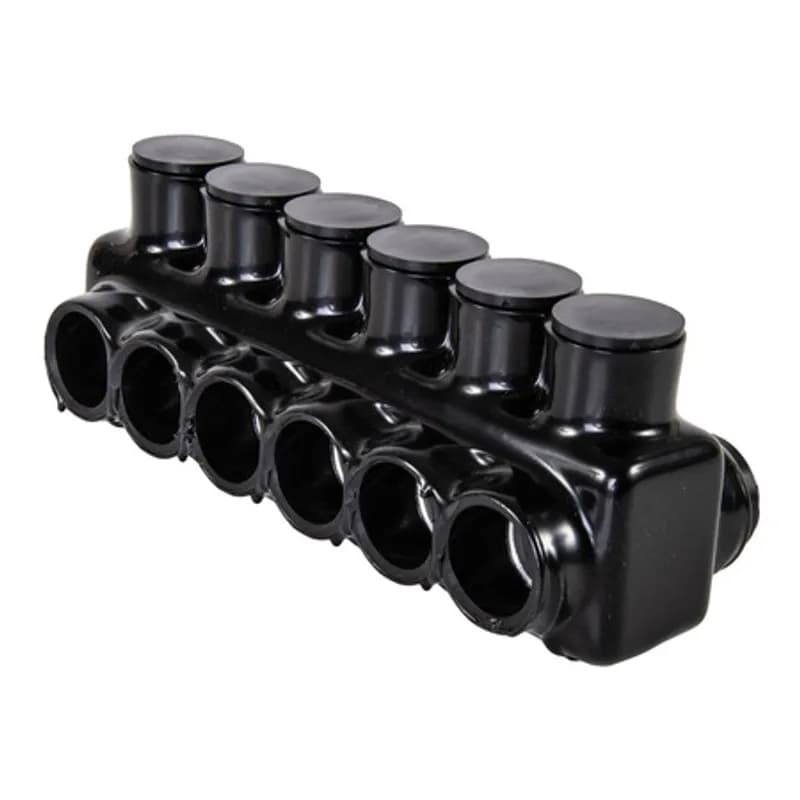

The Polaris IPLD500-6 Multi-Tap Dual-Sided Entry Connector features 6 ports sized for 500 MCM - 4 AWG wires. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.

IPLD500-6

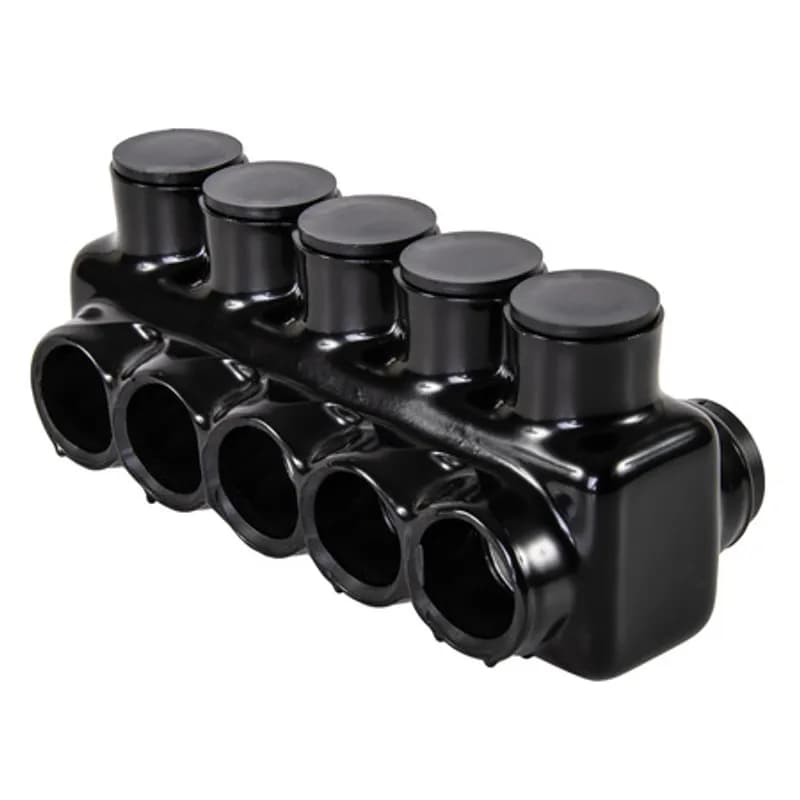

The Polaris IPLD350-5 Multi-Tap Dual-Sided Entry Black Connector features 5 ports sized for 350 MCM - 6 AWG wires. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
