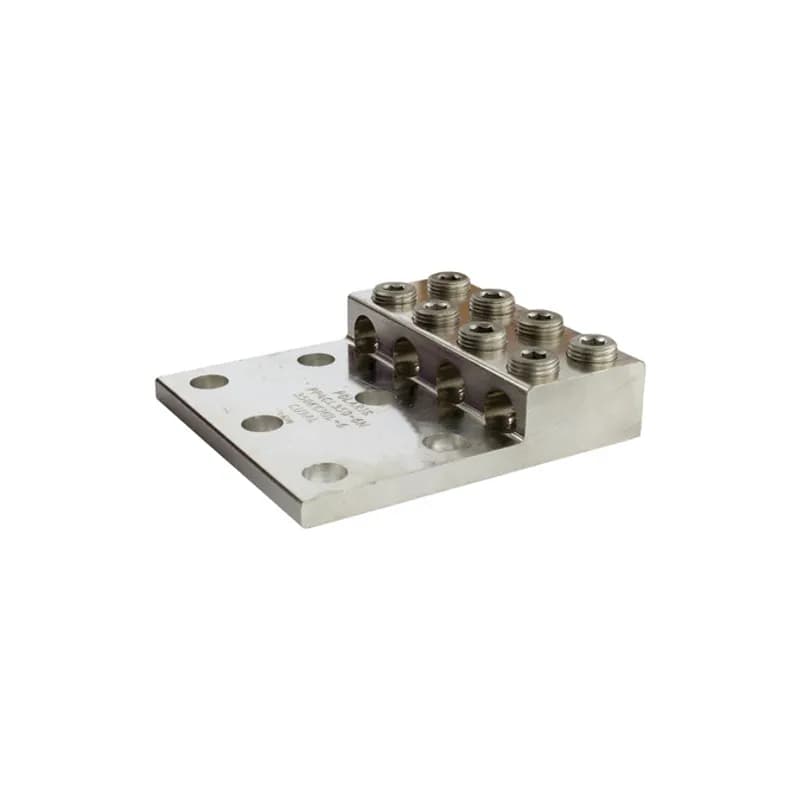

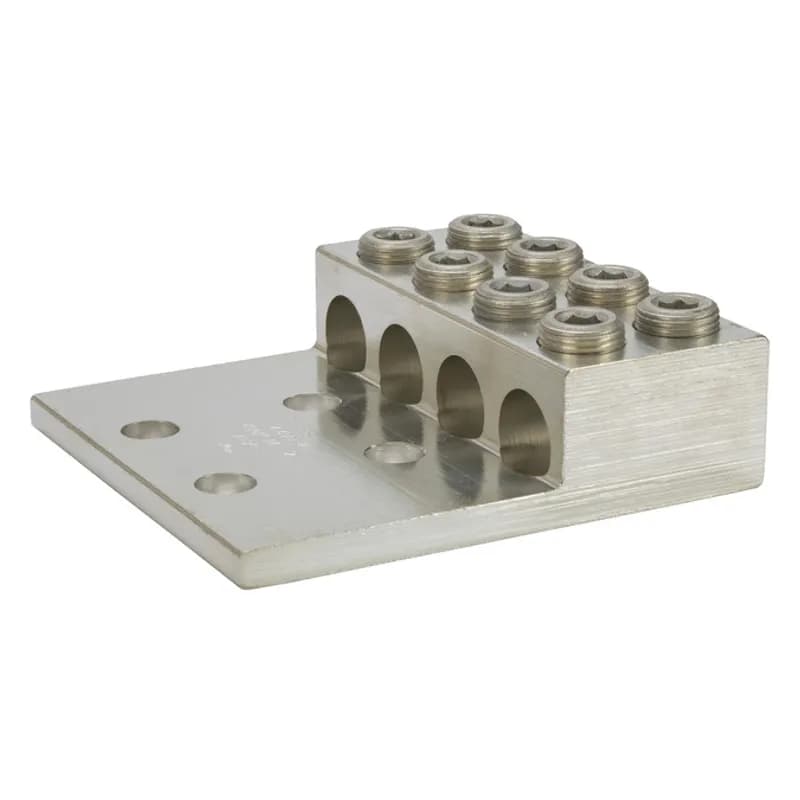

NSI Industries 4-600LL4 - 4 Port Double Set Screw Panelboard Lug 600 MCM - 2 AWG Large size set screw connectors with multiple mounting holes for a secure, turn-prevent connection. Made of 6061T-6 aluminum alloy. Tin plated for low contact resistance. For use with copper or aluminum conductors. 600V (2000V max, per UL486B). UL 486A/B Listed. Temperature rating 90 degrees C. All hole spacing is NEMA standard of 1.75".
NSI Industries

4-600LL4

UPC: 662381001764

Documents & Media
Technical Bulletin

Contact for Pricing

Overview

The NSI Industries 4-600LL4 is a robust 4-port panelboard lug designed for secure and reliable electrical connections. Constructed from durable 6061-T6 aluminum alloy, this lug ensures excellent conductivity and longevity in demanding applications. Its tin plating significantly reduces contact resistance, enhancing electrical efficiency and preventing corrosion. Engineered to accommodate a wide range of conductor sizes, from 600 MCM down to 2 AWG, it offers exceptional versatility for various wiring needs. The double set screw design, coupled with multiple mounting holes, provides a secure, turn-prevent connection, minimizing the risk of loosening over time. This panelboard lug is UL 486A/B Listed, meeting stringent safety and performance standards. It is rated for 600V (with a maximum of 2000V per UL486B) and has a temperature rating of 90 degrees C, making it suitable for high-temperature environments. All hole spacing adheres to NEMA standards, ensuring compatibility with standard panelboard configurations at 1.75 inches. The NSI 4-600LL4 is designed for use with both copper and aluminum conductors, offering flexibility in material selection for your electrical projects. Its robust construction and adherence to industry standards make it a dependable choice for panelboard terminations.
  • 4-port capacity for versatile connections
  • Accommodates conductor sizes from 600 MCM to 2 AWG
  • Constructed from durable 6061-T6 aluminum alloy
  • Tin plated for low contact resistance and corrosion protection
  • UL 486A/B Listed for safety and reliability

Specifications

Application
Wire Termination
Connection Type
Set Screw
Material
6061T-6 Aluminum Alloy
Mounting Type
Multiple mounting holes
Nema Rating
NEMA standard 1.75" hole spacing
Poles
4 Port
Size
600 MCM - 2 AWG
Special Features
(4) 600 MCM-2 AWG - Dual Rated - 2 Pack
Standard
cULus
Type
Panelboard Lug
Voltage Rating
600 V
Warranty
1 Year
Package Dimensions (L x W x H)
5.5 IN x 5 IN x 1.51 IN
Package Dimensions (L x W x H)
13.97 cm x 12.7 cm x 3.8354 cm
Package Weight (Imperial)
5.260 L
Package Weight (Metric)
2.386 kg
