ABB - Installation Products LL306 - Aluminum Lay-in-Lug Connector, Conductor Range 6-3/0 AWG, Stud Size 0.33 Inches
More images

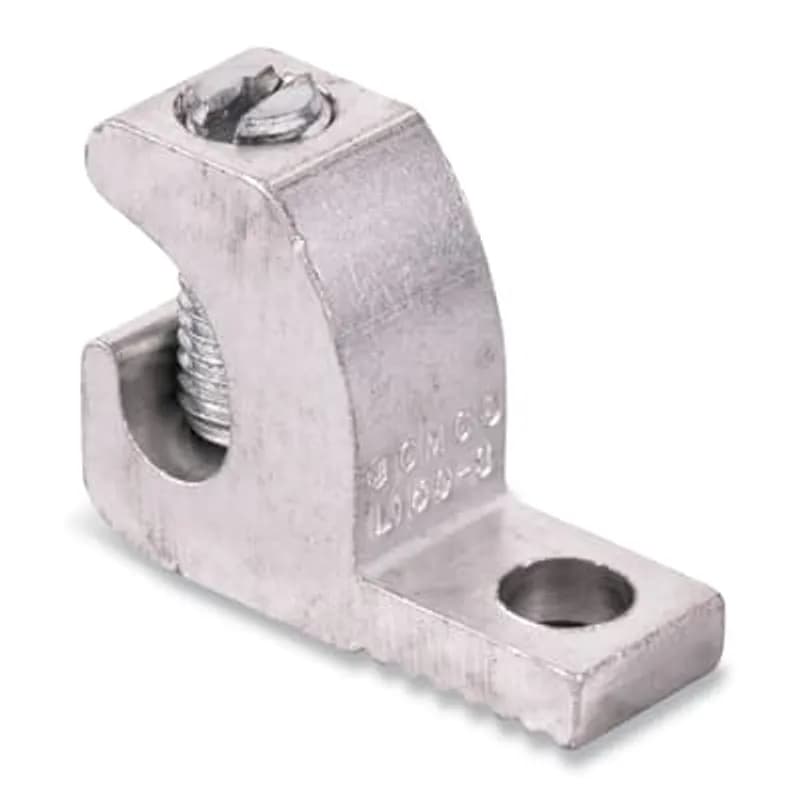

ABB Installation Products LL306 Aluminum Lay-in-Lug Connector, Conductor Range 6-3/0 AWG, Stud Size 0.33 Inches

UPC: 786210787053


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 10

Multiplier: 10

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB LL306 is an aluminum lay-in-lug connector designed for secure electrical terminations. It features a 0.33-inch stud size for standard hardware compatibility. The lay-in design simplifies installation, allowing conductors to be inserted and clamped in a single step, potentially reducing installation time. Constructed from aluminum, the LL306 offers corrosion resistance for durability in various environments. Its serrated contact surface is engineered to ensure low-resistance electrical continuity. Based on manufacturer catalog data, similar ABB aluminum lugs (e.g., MLA1) support a maximum amperage of 225 A and wire sizes up to 350 kcmil. The LL306 is an essential component for reliable aluminum conductor connections in industrial and commercial electrical systems.
  • Aluminum lay-in-lug connector for secure electrical terminations.
  • Features a 0.33-inch stud size for standard hardware compatibility.
  • Lay-in design simplifies conductor insertion and clamping.
  • Durable aluminum construction with corrosion resistance.

Specifications

Conductor Material
Aluminum
Conductor Size
#6-3/0 AWG
Insulation
No
Special Features
Dual-rated for both copper and aluminum conductor. Manufactured from 6061-T6 aluminum alloy for maximum strength and conductivity
Standard
UL E9809
Type
Mechanical Grounding
Package Dimensions (L x W x H)
4 IN x 4 IN x 3 IN
Package Dimensions (L x W x H)
10.16 cm x 10.16 cm x 7.62 cm
Package Weight (Imperial)
0.1900 L
Package Weight (Metric)
0.0860 kg
