Overview
- Lay-in Lugs are dual-rated, UL486B listed connectors that bond the end of cable securely to a rack
- They are made of electroplated 6061-T6 aluminum
- They require a 3/16-in. hex key (not included)
- Suitable for copper and aluminum conductors
- Accommodates wire range from #14 AWG to 2/0
Specifications
Application | Networking, Storage and Data Center; Datacom and Telecom Equipment |
Cable Size | #14 - 2/0 |
Color | Unpainted |
Finish | Electroplated |
For Cable Size Range | #14 AWG to 2/0 |
Height | 44 mm |
Height | 1.75 IN |
Material | Aluminum |
Modification Services | Yes |
Size | 1.75 x 1.50 |
Size | 44 x 38 |
Size | 1.75 x 1.50 in |
Type | Cable Pathway |
Weight | 1.9 lb |
Width | 38 mm |
Width | 1.5 in |
Package Dimensions (L x W x H) | 4.3 IN x 4.3 IN x 4.4 IN |
Package Dimensions (L x W x H) | 10.922 cm x 10.922 cm x 11.176 cm |
Package Weight (Imperial) | 1.900 L |
Package Weight (Metric) | 0.862 kg |
CB100
Aluminum conduit bender for 1 Inch EMT or 3/4 Inch Rigid Conduit has an 8 degree inside radius. It has cast in-angle indicators with raised bending points of reference to aid the installer. The body is aluminum die cast which is lightweight yet strong enough for everyday use. FEATURES: INSIDE RADIUS: 8 Degree TYPE: Aluminum Die Cast USE: 1 Inch EMT or 3/4 Inch Rigid Conduit
95154

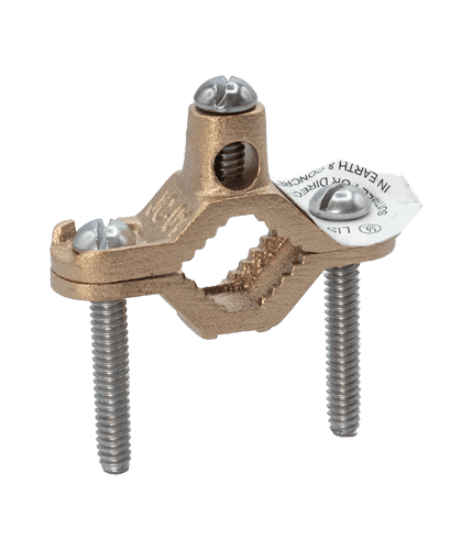

This is a ground clamp for direct burial use. It is made of bronze conductor material and is intended to accommodate bare cable. The size is 1/2"–1" and it is for bare wire #2, 4, 6, 8 and 10 AWG copper.How to Install a Lay-In Lug for Grounding
This guide provides step-by-step instructions for installing a lay-in lug to securely attach ground wires to racks or cabinets.
Estimated time: 30m
Tools needed:
Screwdriver, 3/16” Hex Key
Supplies needed:
Thread forming screws, Zinc-based antioxidant
- Locate the mounting surface
Identify the appropriate surface on the rack or cabinet where the lay-in lug will be installed.
- Prepare the surface
Remove all paint from the contact surface to ensure a proper connection.
- Apply antioxidant
Coat the prepared surface with a generous amount of zinc-based antioxidant to prevent corrosion.
- Mount the lay-in lug
Secure the lay-in lug to the surface using thread forming screws. Ensure it is firmly attached.
- Prepare the conductor
Apply zinc-based antioxidant to the conductor location in the lug to ensure a good electrical connection.
- Insert and secure the ground conductor
Insert the ground conductor into the lay-in lug and secure it using a 3/16” hex key.
