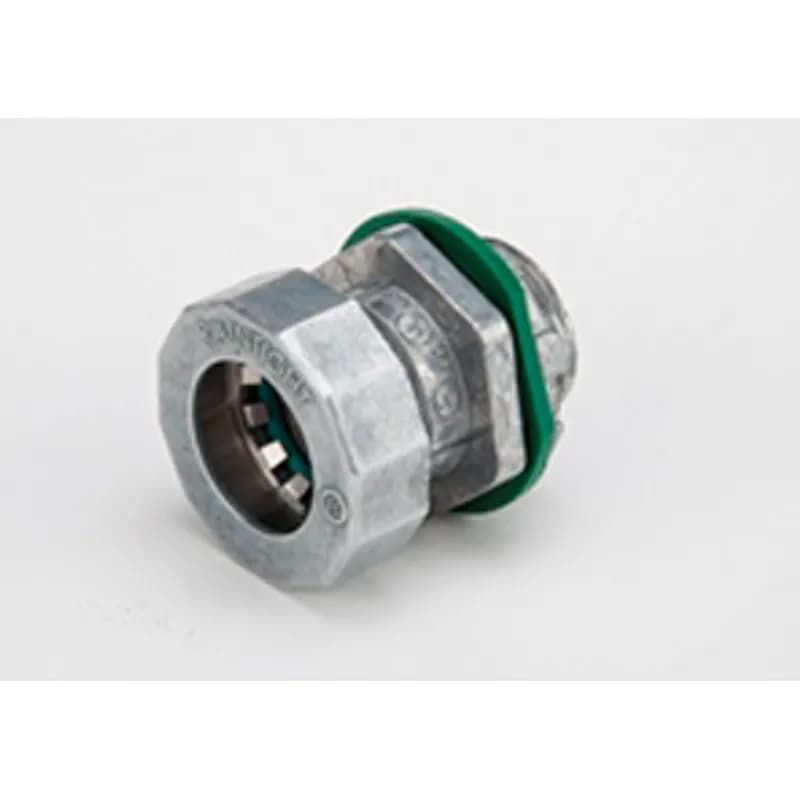

NSI Industries 250-MSRT Bridgeport Fittings Mighty-Seal 1/2 inch EMT Connectors are used to connect a 1/2 inch…
UPC: 781747172501
Contact for Pricing
Minimum Qty: 25
Multiplier: 25
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Tool-free push-on installation for EMT raceways
- Zinc die-cast construction with ball-burnished finish for durability
- Integrated 105°C-rated nylon insulator protects conductors
- Reusable design with positive locknut for ground continuity
Specifications
Application | Used to join EMT to box or enclosure. Concrete tight/raintight |
Connection Type | Push-on |
Connection Type | Push-in |
Connector Type | PUSH-EMT® |
Finish | Ball burnish |
Insulation | False |
Material | Steel (electro-zinc plated) |
Material Quality | Zinc Die Cast |
Mounting Type | Threaded (locknut) |
Nema Rating | Type 4X |
Nema Rating | NEMA FB1 |
Series | Mighty-Seal |
Size | 1/2 IN |
Special Features | Connectors assembled with knockout gasket, no separate pieces to buy and stock |
Standard | cULus |
Trade Size | 1/2 |
Trade Size | 1/2 in. |
Type | Connector |
Package Weight (Imperial) | 0.170 L |
Package Weight (Metric) | 0.077 kg |
TC212SC-1
Connector, Non-Insulated Compression, Conduit Size 3/4 Inch, Length 1-11/32 Inch, Width 1-5/32 Inch, Die Cast Zinc, For use with EMT Conduit, Sold by Each
CPC75EG
Conduit connection plate with hardware for 3/4 in. electrical metallic tubing (EMT) connectors. The sheet identifies the product as CPC75EG. No material, finish, or dimensional attributes are printed on the sheet beyond the 3/4 size reference in the title.
Frequently Asked Questions
Is the 250-MSRT connector suitable for wet locations?
Yes, the 250-MSRT connector is UL listed for use in wet locations.
What is the trade size of the 250-MSRT connector?
The trade size of the 250-MSRT connector is 1/2 inch.
How is the 250-MSRT connector installed?
Installation involves inserting a properly deburred end of EMT into the Mighty-Seal® and rotating until it reaches the end stop.
What are the certifications for the 250-MSRT connector?
The connector has certifications including UL, cULus, and complies with Federal Specification A-A-50553.
What material is the 250-MSRT connector made of?
The 250-MSRT connector is made of zinc die cast.
How do you remove the 250-MSRT connector?
Removal is done by loosening the nut and taking out the component parts from the conduit.
Where is the 250-MSRT connector manufactured?
The 250-MSRT connector is manufactured in the USA.
What is the finish of the 250-MSRT connector?
The finish of the 250-MSRT connector is ball burnished.
Can the 250-MSRT connector be reused?
Yes, the fitting can be reassembled in the reverse order of removal and reused.
What is the standard package quantity for the 250-MSRT?
The standard package quantity for the 250-MSRT is 250.
How to Install the Mighty-Seal™ Push-EMT™ Connector
This guide provides step-by-step instructions for installing the Mighty-Seal™ Push-EMT™ Connector for use in wet locations.
Estimated time: 30m
Tools needed:
Screwdriver, Reaming/deburring tool
Supplies needed:
Mighty-Seal™ Push-EMT™ Connector, Knockout gasket, Locknut
- Prepare the EMT
Cut the Electrical Metallic Tubing (EMT) squarely and thoroughly remove all burrs using a reaming/deburring tool to ensure an evenly chamfered outer edge.
- Install the connector
In one motion, slightly rotate and firmly push the Mighty-Seal™ Push-EMT™ Connector onto the EMT until it reaches the conduit stop (minimum of ½ inch). Do not rotate the EMT more than a ¼ turn.
- Secure the connector
Remove the serrated locknut and position the knockout gasket on the outside of the enclosure. Insert the fitting into the knockout and tighten the locknut hand-tight plus ¼ turn.
