Contact for Pricing
Minimum Qty: 25
Multiplier: 25
*Contact for lower quantities*
Overview
- Tool-free push-to-connect installation reduces labor time by up to 75%
- Raintight rating ensures reliable performance in wet and outdoor environments
- Removable design allows for easy maintenance and system modifications
- Eliminates need for set screws or specialized tools
- Manufactured in the US by NSI Industries for industrial, commercial, and utility applications
Specifications
Application | Bridgeport Fittings Mighty-Seal® product line is designed to provide quick and easy raintight connection to EMT raceways. Patented |
Connection Type | Push-in |
Connector Type | PUSH-EMT® |
Finish | Ball burnish |
Insulation | False |
Ip Rating | IP66/IP67 |
Material Quality | Zinc Alloy body and locknut with steel internal components |
Series | PUSH-EMT® |
Size | 3/4 IN |
Special Features | Concrete Tight/Raintight |
Standard | cULus |
Trade Size | 3/4 in. |
Type | Coupling |
Package Weight (Imperial) | 0.212 L |
Package Weight (Metric) | 0.096 kg |
250-MSRT

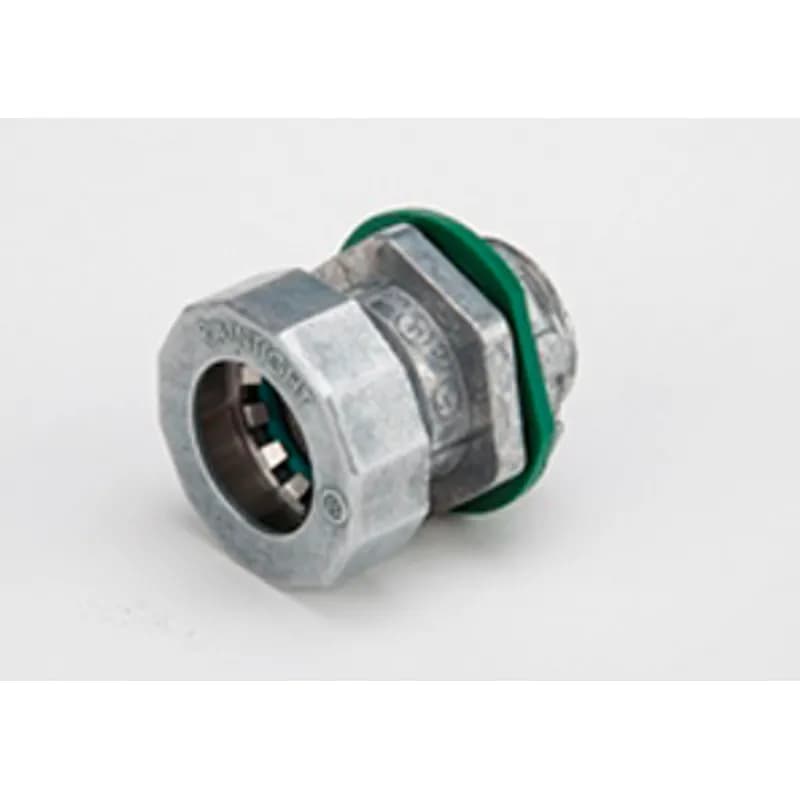

Bridgeport Fittings Mighty-Seal 1/2 inch EMT Connectors are used to connect a 1/2 inch EMT raceway to a box, device or enclosure. The 250MSRT 1/2 inch Mighty-Seal« connector is UL listed for use in wet locations. Raintight. Patented
TC212SC-1
Connector, Non-Insulated Compression, Conduit Size 3/4 Inch, Length 1-11/32 Inch, Width 1-5/32 Inch, Die Cast Zinc, For use with EMT Conduit, Sold by Each
CPC75EG
Conduit connection plate with hardware for 3/4 in. electrical metallic tubing (EMT) connectors. The sheet identifies the product as CPC75EG. No material, finish, or dimensional attributes are printed on the sheet beyond the 3/4 size reference in the title.Frequently Asked Questions
What is the trade size of the 261-MSRT coupling?
The trade size of the 261-MSRT coupling is 3/4 inch.
What is the country of manufacture for the 261-MSRT?
The 261-MSRT coupling is manufactured in the USA.
What is the material of the 261-MSRT coupling?
The 261-MSRT coupling is made of a zinc alloy body and locknut with steel internal components.
What are the installation steps for the 261-MSRT?
To install, insert a properly deburred end of EMT into the fitting and slightly rotate until it reaches the end stop.
What certifications does the 261-MSRT coupling have?
The coupling is certified under UL514B, CSA 22.2, and complies with Federal Specification A-A-505553.
What is the finish of the 261-MSRT coupling?
The finish of the 261-MSRT coupling is ball burnished.
How do you remove the 261-MSRT coupling?
Removal is accomplished by loosening the nut and taking out the component parts from the end of the conduit.
What is the standard package quantity for the 261-MSRT?
The standard package quantity for the 261-MSRT is 250 units.
What is the UPC number for the 261-MSRT?
The UPC number for the 261-MSRT is 78174711261.
Can the 261-MSRT coupling be reused?
Yes, the fitting can be reassembled in the reverse order of the removal process and reused.
How to Install the Mighty-Seal™ Push-EMT™ Coupling
This guide provides step-by-step instructions for installing the Mighty-Seal™ Push-EMT™ Coupling for use with Electrical Metallic Tubing (EMT) in wet locations.
Estimated time: 30m
Tools needed:
Reaming/deburring tool, Screwdriver
Supplies needed:
Mighty-Seal™ Push-EMT™ Coupling, Electrical Metallic Tubing (EMT)
- Prepare the EMT
Cut the EMT squarely and remove all burrs using a reaming/deburring tool to ensure an evenly chamfered outer edge.
- Install the coupling
In one motion, slightly rotate and firmly push the Mighty-Seal™ Push-EMT™ Coupling onto the EMT until it reaches the conduit stop (minimum of ½ inch). Do not rotate the EMT more than a ¼ turn.
- Verify the installation
Ensure that the coupling is securely engaged with the EMT and that there are no visible gaps. Check that the installation complies with the National Electrical Code requirements.
