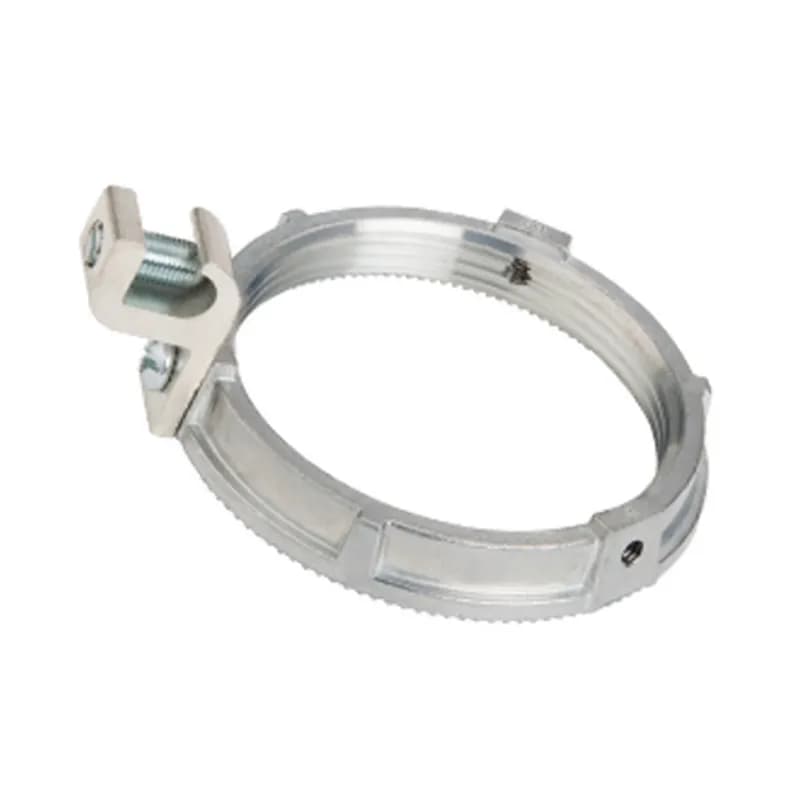

NSI Industries 170-DCG Threaded Grounding and Bonding Hub, Zinc Die Cast, Size 4 Inch, Aluminum Lay-in Lug
UPC: 781747091703
Documents & Media
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 4-inch trade size threaded grounding and bonding hub
- Durable zinc die cast alloy construction
- Aluminum lay-in lug for secure grounding connections
- Meets NEC Article 250.92 and 250.97 requirements
Specifications
Application | Grounding Hubs connect Rigid/IMC conduit to an enclosure, offering Supply-Side Equipment Bonding and grounding options. The combination of an insulated threaded hub and grounding locknut provides a reliable ground fault path for service entrance equipment, eliminating the need to install an additional grounding bushing. Bridgeport's Grounding Hubs meet the requirements of NEC Article 250.92 for Bonding of Equipment for Services and NEC 250.97 for circuits rated over 250V |
Finish | Ball burnish |
Material | Zinc Die Cast, Aluminum |
Material | Zinc Die Cast Alloy |
Series | 170-DCG |
Size | 4 IN |
Special Features | Bridgeport's Grounding Hubs meet the requirements of NEC Article 250.92 for Bonding of Equipment for Services and NEC 250.97 for circuits rated over 250V. |
Standard | UL |
Trade Size | 4 in |
Type | Grounding Hubs |
Package Dimensions (L x W x H) | 6.5 IN x 5.5 IN x 4.625 IN |
Package Dimensions (L x W x H) | 16.51 cm x 13.97 cm x 11.7475 cm |
Package Weight (Imperial) | 3.164 L |
Package Weight (Metric) | 1.435 kg |
BG202
Bushing, Insulated Grounding, Trade Size 3/4 Inch, Grounding Lug Wire Size 14 AWG - 4 AWG, Zinc Die Cast, For use with Rigid/IMC Conduit.
67458
This is a reducer bushing for reducing the size of a female hub to accommodate a smaller size of conduit or male threaded hub. It is made of steel with a zinc plated finish. The size is 1-1/4" - 1/2" and the color is silver.Frequently Asked Questions
What are the dimensions of the grounding hub?
The dimensions are A: 0.925 inches, B: 2.620 inches, C: 5.360 inches.
What is the trade size of the grounding hub?
The trade size of the grounding hub is 4 inches.
What is the application of the grounding hub?
The grounding hub connects Rigid/IMC conduit to an enclosure for Supply-Side Equipment Bonding and grounding.
Does the grounding hub meet NEC requirements?
Yes, it meets NEC Article 250.92 and 250.97 for bonding of equipment and circuits over 250V.
What are the dimensions of the grounding hub?
The dimensions are A: 0.925 inches, B: 2.620 inches, C: 5.360 inches.
What is the trade size of the grounding hub?
The trade size of the grounding hub is 4 inches.
What is the application of the grounding hub?
The grounding hub connects Rigid/IMC conduit to an enclosure for Supply-Side Equipment Bonding and grounding.
Does the grounding hub meet NEC requirements?
Yes, it meets NEC Article 250.92 and 250.97 for bonding of equipment and circuits over 250V.
What is the material of the grounding hub?
The grounding hub is made of Zinc Die Cast Alloy.
How many grounding hubs are in a standard package?
A standard package contains 5 grounding hubs.
