Contact for Pricing

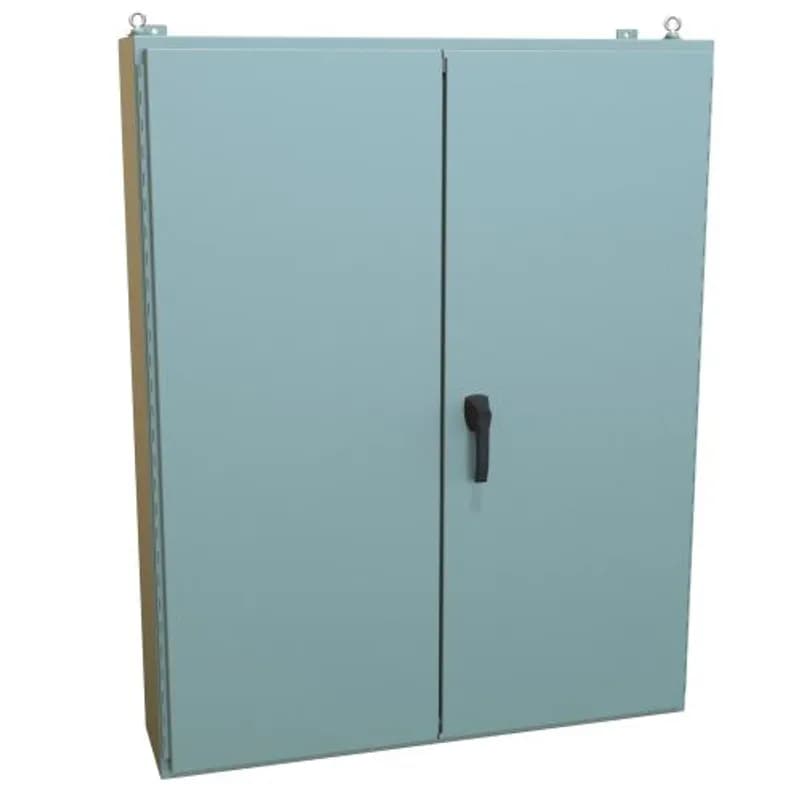

Overview
- High‑strength gray steel construction
- 60x48x8 inch dimensions for ample space
- Double‑door design for easy maintenance access
- Tightly sealed panel protects against dust and moisture
- Cost‑effective solution with Hammond Manufacturing quality
Specifications
Application | Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments. Provides a degree of protection from falling dirt, dust, oil and water. |
Brand Name | Hammond Mfg. |
Color | Gray |
Cubic Capacity | 25112.777382 Cubic in |
Cubic Capacity | 25112.777382 in3 |
Material | Mild Steel |
Material | Steel |
Material Quality | Mild Steel |
Mounting | FLOOR |
Mounting Type | Wallmount |
NEMA Rating | type-12 |
NEMA Rating | 12 |
Series | N12 Dbl Door |
Size | 60.13 in x 48.06 in x 8.69 in |
Size | 60 x 48 x 8 in |
Special Features | Enclosures 54" high or less are formed 14 gauge steel. Enclosures 60" high are formed 12 gauge steel. Enclosures 72" high are formed 12 gauge steel with a 10 gauge steel back. Smooth, continuously welded seams without knockouts, cutouts or holes. Body stiffeners are provided in enclosures for extra rigidity. Heavy duty lifting eyebolts are provided with reinforced support angles. 12" floor stands are welded to the enclosure. (w/ feet Part No.). Welded brackets provide for enclosure mounting (w/o feet Part No.). Gasketed overlapping doors eliminate the need for a center post. Continuously hinged doors may be removed by pulling the hinge pin. Doors are secured with a three point latch and operated with a key locking automotive type handle. Latch rods are equipped with rollers for easier door closing. Oil resistant gaskets are permanently secured. A removable 10 gauge inner panel is included in enclosures 60" and larger. Smaller sizes include a 12 gauge inner panel. Provision for light kit mounting. Panel supports are provided in enclosures 60" and larger for easy panel installation. Collar studs are provided for mounting inner panels. A grounding stud is provided in the enclosure for each door and a bonding stud is provided on the door. A literature pocket is provided for the inside of the door. |
Standard | csa, ul, ce |
Sub Brand | 1422 FM Series |
Type | N12 Dbl Door Floormount Encl w/panel |
Package Dimensions (L x W x H) | 9.56 IN x 52.87 IN x 66.14 IN |
Package Dimensions (L x W x H) | 24.2824 cm x 134.2898 cm x 167.9956 cm |
Package Weight (Imperial) | 392.000 L |
Package Weight (Metric) | 177.811 kg |
