ABB - Low Voltage Drives RCNA-01-KIT - The ControlNet network uses a RG-6 quad shielded cable or fiber with support for media redundancy. The RCNA-01 Adapter module supports only RG-6 quad shielded cable (coax) for the bus connection. ControlNet is flexible in topology options (bus, tree, star) to meet various application needs. The fieldbus speed is 5 Mbits/s. The RCNA-01 ControlNet Adapter module can not originate connections on its own, but a scanner node can open a connection towards it. The ControlNet protocol is implemented according to the ControlNet international specification for a Communication adapter.

ABB Low Voltage Drives RCNA-01-KIT The ControlNet network uses a RG-6 quad shielded cable or fiber with support for media…

Alternate Item Number: 64751701

UPC: 662348077030

Documents & Media
Specification Sheet

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

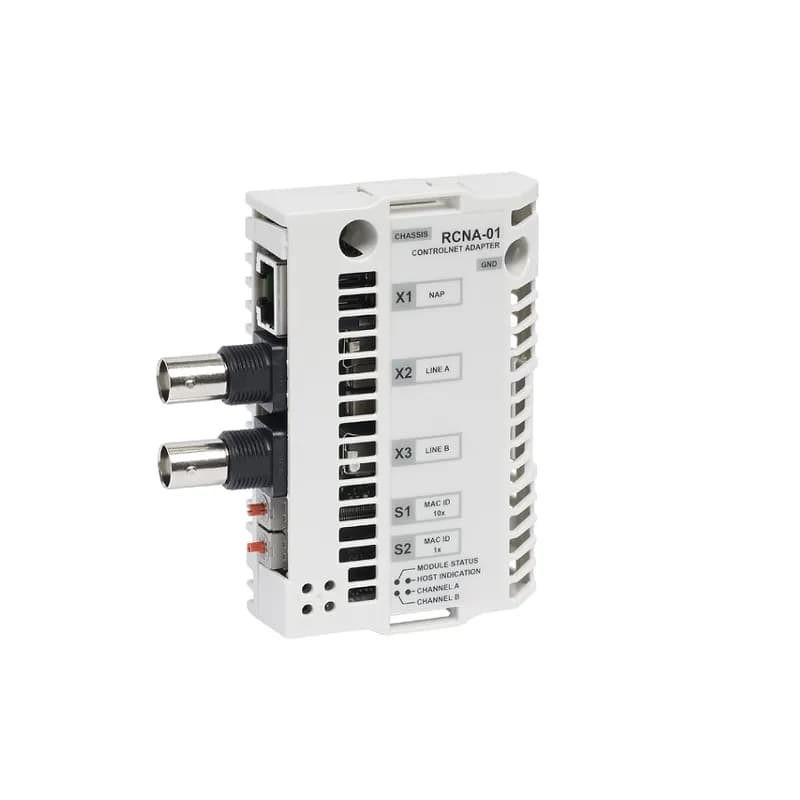

The ABB RCNA-01-KIT is a ControlNet Adapter module designed for industrial automation networks. This module specifically supports RG-6 quad shielded cable for its bus connection, offering a reliable communication pathway. ControlNet is known for its flexibility, supporting various topology options including bus, tree, and star configurations to adapt to diverse application requirements. The fieldbus operates at a speed of 5 Mbits/s, ensuring efficient data transfer within the network. The RCNA-01 module functions as a communication adapter, implementing the ControlNet protocol according to the ControlNet International specification. It is important to note that the RCNA-01 cannot originate connections independently; a scanner node is required to initiate communication with it. This adapter is a key component for integrating devices into a ControlNet network, facilitating robust and structured industrial communication. SKU: RCNA-01-KIT. Manufacturer: ABB - Low Voltage Drives. UNSPSC Code: 39122004. This module is essential for building or expanding ControlNet systems where RG-6 coax cable is the chosen physical medium.
  • Supports RG-6 quad shielded cable for ControlNet bus connection
  • Flexible topology options: bus, tree, and star
  • Fieldbus speed of 5 Mbits/s
  • Implements ControlNet protocol per international specification
  • Requires scanner node to originate connections
