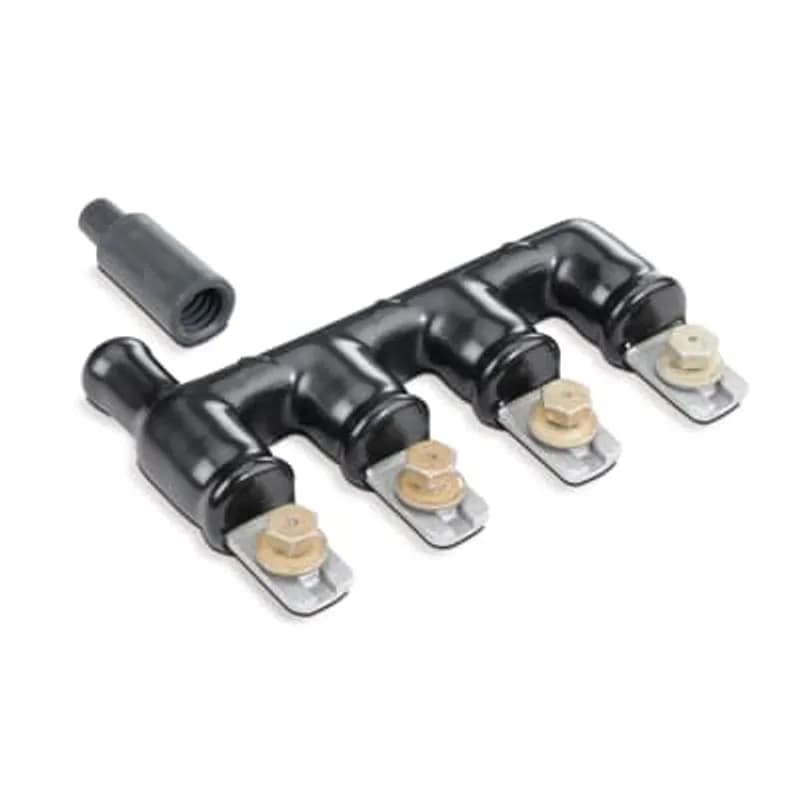

ABB - Installation Products UPC44SLWL2P - Insulated Bus Connector - 5 Terminals In-Line, Number of Ports 4, 4 WL2P Sleeves Plugged for Insulation, Wire Range 12 solid - 4 stranded for Street Light Option
ABB - Installation Products

UPC44SLWL2P

UPC: 783786118083

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 50

Multiplier: 50

*Contact for lower quantities*

Overview

The ABB Installation Products Insulated Bus Connector, SKU UPC44SLWL2P, is designed for reliable electrical connections in street lighting applications. This unit features 5 terminals arranged in-line, with 4 ports specifically configured for insulation using WL2P sleeves. It accommodates a wire range from 12 AWG solid to 4 AWG stranded conductors, making it suitable for the power distribution requirements of street lighting systems. Key specifications include: * **Manufacturer:** ABB - Installation Products * **SKU:** UPC44SLWL2P * **Terminals:** 5 in-line * **Ports:** 4 * **Insulation Sleeves:** 4 x WL2P * **Wire Range:** 12 AWG solid to 4 AWG stranded * **Application Focus:** Street Light Option This connector provides a secure and insulated method for joining multiple conductors, ensuring electrical integrity and safety in outdoor installations. The use of WL2P sleeves offers robust insulation for the connected wires, protecting against environmental factors and preventing short circuits. Its configuration is optimized for the specific wiring needs of street lighting circuits, facilitating efficient and dependable power distribution to individual fixtures. The UNSPSC code for this product is 39121408.
  • 5 In-line Terminals for organized connections
  • 4 Ports with WL2P Sleeves for secure insulation
  • Wire Range: 12 AWG Solid to 4 AWG Stranded
  • Specifically designed for Street Light applications
  • ABB Installation Products quality and reliability

Specifications

Material
Aluminum
Type
Bus Connector
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
2.8300 L
Package Weight (Metric)
1.2840 kg
