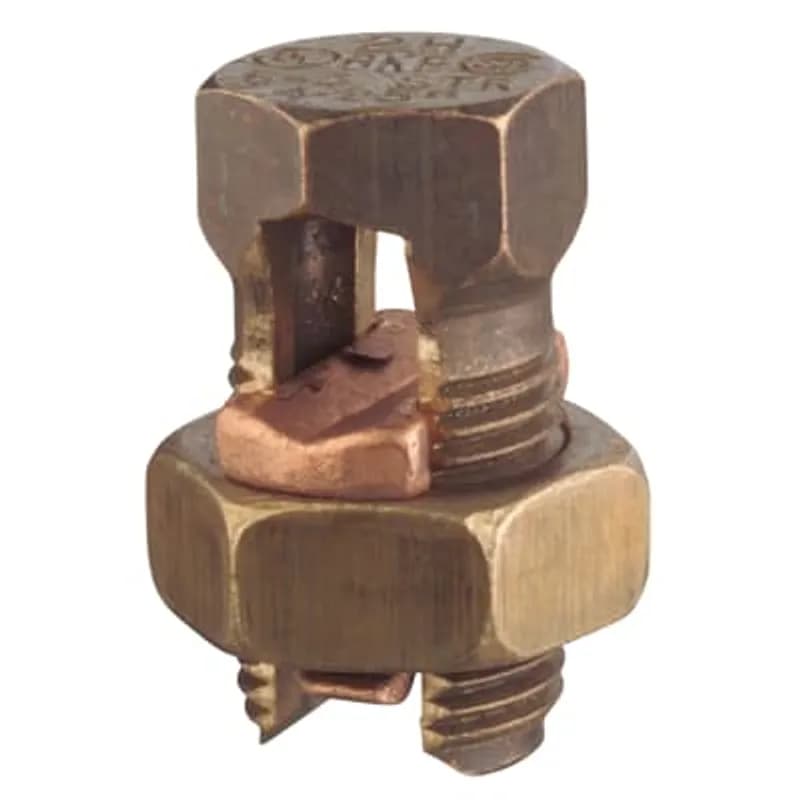

ABB - Installation Products E-9H-25 - Type H High Strength Split-Bolt Connector made of Bronze Alloy for Use on Copper Conductors. Conductor Range for Equal Main and Tap 10 Str.-12 Sol.
More images

ABB Installation Products E-9H-25 Type H High Strength Split-Bolt Connector made of Bronze Alloy for Use on Copper…

UPC: 075114242066


Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 25

Multiplier: 25

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB Type H Split-Bolt Connector (SKU E-9H-25) is a high-strength bronze alloy connector designed for secure, permanent splices on copper conductors. Made from durable bronze alloy, this split-bolt connector accommodates equal main and tap conductor sizes ranging from 10 AWG stranded to 12 AWG solid, providing a reliable mechanical connection without solder or heat. The split-bolt design allows for easy installation with standard tools, enabling quick field assembly and disassembly when required. This connector is ideal for industrial, commercial, and utility applications where copper conductor splicing is necessary, including panel boards, motor controls, and branch circuit wiring. The bronze alloy construction ensures excellent corrosion resistance and long-term conductivity, maintaining low resistance over time for stable electrical performance. Compliance with industry standards for mechanical connectors ensures safe operation under typical load conditions. The compact design and threaded bolt enable tight clamping force, reducing the risk of loosening due to vibration or thermal cycling. Suitable for indoor and outdoor use when installed in accordance with applicable codes and manufacturer guidelines. This connector is part of ABB’s Installation Products line, known for reliable electrical components in demanding environments.
  • Material: Bronze alloy for corrosion resistance and conductivity
  • Conductor Range: 10 AWG stranded to 12 AWG solid (equal main and tap)
  • Connection Type: Split-bolt with threaded clamp for secure mechanical splice
  • Series: Type H, designed for copper conductor applications
  • Installation: Requires standard tools; no solder or heat required

Specifications

Material
Silicon Bronze Alloy
Type
Split-Bolt Connector
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.0300 L
Package Weight (Metric)
0.0140 kg
