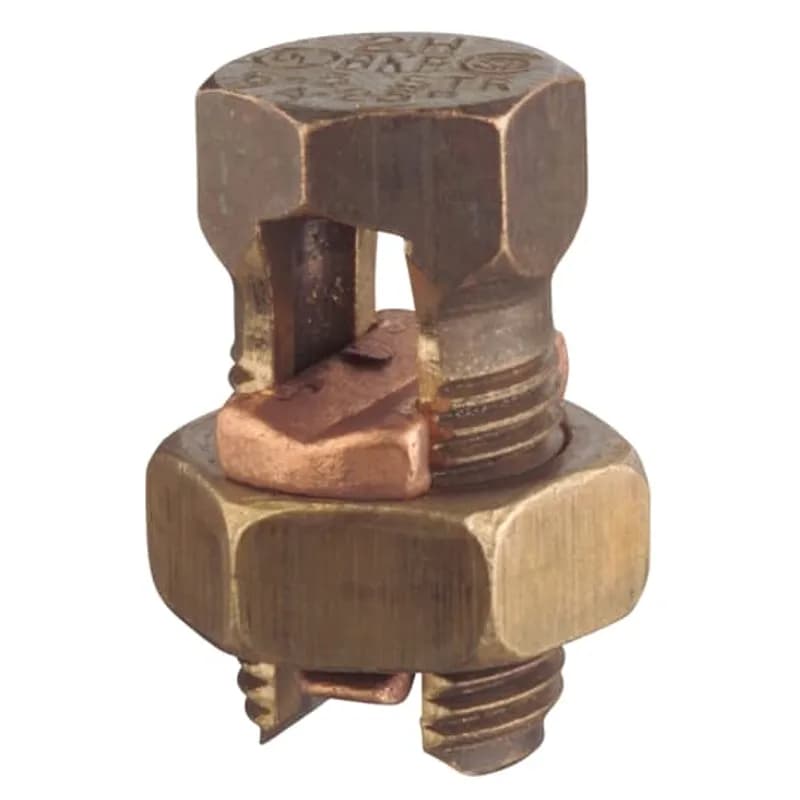

ABB Installation Products E-2H-25 Type H High Strength Split-Bolt Connector, Bronze Alloy for Use on Copper Conductors…
UPC: 075114241939
Documents & Media
Contact for Pricing
Minimum Qty: 25
Multiplier: 25
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Bronze alloy construction for durability and corrosion resistance
- Supports equal main and tap conductors from 2 AWG to 6 AWG
- Split-bolt design enables tool-free installation
- 25-pack quantity for bulk applications
- Manufactured by ABB - Installation Products
Specifications
Connection Type | Split-Bolt |
Material | Bronze Alloy |
Material | Silicon Bronze Alloy |
Size | 2 Sol-6 Sol |
Standard | UL E9809 |
Type | Split-Bolt Connector |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.1000 L |
Package Weight (Metric) | 0.0450 kg |
31215
Ground Clamp for K&L Grade Copper Tubing Only, Wire Range 6 - 2, Water Pipe Size, Strain Relief Grounding
VTA-2-Q
Two-bolt connector, bronze, tin-plated, type VTA, 1/0 STR - 4/0 STR run, 10 STR - 4/0 STR tap
E-2HPS-25
Type HPS Plated Split-Bolt Connector with Spacer made of Copper Alloy for Use on Copper, Aluminum, ACSR Conductors. Conductor Range for Equal Main and Tap 2 Sol.-8 Sol.
BTC0208-B2-5
Type BTC Copper Mechanical Connector, Single Conductor, One-Hole Mount (Offset Tang) for Conductor Range 8-2 Str
SLK-M VP
Mechanical Connector With Wooden Dowel And Rocket/cap. Includes Insulating Cap and Rocket, Wood Dowel, (2) Tin Plated Fuse Clips, Silicone Grease and Installation Instructions.E-4HPS-25
Type HPS Plated Split-Bolt Connector with Spacer made of Copper Alloy for Use on Copper, Aluminum, ACSR Conductors. Conductor Range for Equal Main and Tap 4 Sol.-12 Sol.
E-8H-25
Type H High Strength Split-Bolt Connector made of Bronze Alloy for Use on Copper Conductors. Conductor Range for Equal Main and Tap 8 Str.-10 Sol.E-6H-25
Type H High Strength Split-Bolt Connector made of Bronze Alloy for Use on Copper Conductors. Conductor Range for Equal Main and Tap 6 Sol.-8 Sol.Frequently Asked Questions
What material is the connector made of?
The connector is made of bronze alloy for durability and conductivity.
How many connectors are included in a pack?
Each pack contains 25 Type H split-bolt connectors.
What is the UNSPSC code for this product?
The UNSPSC code for the E-2H-25 is 39121408.
What conductor sizes does this connector support?
The E-2H-25 supports equal main and tap conductors ranging from 2 AWG to 6 AWG.
Is this connector suitable for copper conductors only?
Yes, the E-2H-25 is designed specifically for copper conductors.
